Name: FESTO Magnetic valve 8043214 VUVS-LK20-M52-AD-G18-1C1-S 24 V DC G 1/8 Nominal width (details) 5.2 mm 1 pc(s)
Brand: FESTO
SKU: 1893819
Availability: InStock

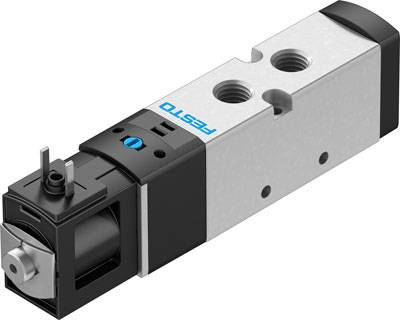

A rectangular component with two circular openings and the inscription 'FESTO' on the top surface. It appears to be a pneumatic valve.

Datasheet (PDF)

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 8 Piece(s) available

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve VUVS-LK20-M52-AD-G18-1C1-S

Technical specifications

Product type: Magnetic valve

Operating voltage: 24 V DC

Max. operating pressure: 8 bar

Enclosure material: Aluminium wrought alloy

Connection: G 1/8

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Media temperature (range): -5 up to +50 °C

Manufacturer part #: 8043214

Operating pressure (min.): 1.5 bar

Operation: Electrically

Sealant: HNBR
NBR

Max. flow: 550 l/min

Function: 5/2-way

Weight: 145 g

Max. media temperature: +50 °C

Media temperature (min.): -5 °C

Nominal width: 5.2 mm

Features: P port connector (G1/8)

: IP65

Max. ambient temperature: +50 °C

Min. ambient temperature: -5 °C

Current consumption: 2.4 W

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Enclosure material

FESTO Magnetic valve 1491828 VZWD-L-M22C-M-G14-10-V-1P4-50 24 V DC G 1/4 Nominal width (details) 1 mm OFF/NC 1 pc(s)

Item no:1942858

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/4

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

FESTO Magnetic valve 575249 VUVS-L20-M52-AD-G18-F7 G 1/8 Nominal width (details) 5.7 mm 1 pc(s)

Item no:1942555

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

FESTO Magnetic valve 575250 VUVS-L20-M52-MD-G18-F7 G 1/8 Nominal width (details) 5.7 mm 1 pc(s)

Item no:1942556

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

FESTO Magnetic valve 575251 VUVS-L20-B52-D-G18-F7 G 1/8 Nominal width (details) 5.7 mm 1 pc(s)

Item no:1942557

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

FESTO Magnetic valve 575252 VUVS-L20-P53E-MD-G18-F7 G 1/8 Nominal width (details) 4.5 mm 1 pc(s)

Item no:1942558

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

FESTO Magnetic valve 575253 VUVS-L20-P53U-MD-G18-F7 G 1/8 Nominal width (details) 4.8 mm 1 pc(s)

Item no:1942559

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

FESTO Magnetic valve 575254 VUVS-L20-P53C-MD-G18-F7 G 1/8 Nominal width (details) 5 mm 1 pc(s)

Item no:1942560

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

FESTO Magnetic valve 575255 VUVS-L20-M32C-AD-G18-F7 G 1/8 Nominal width (details) 5.7 mm 1 pc(s)

Item no:1942561

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

FESTO Magnetic valve 575256 VUVS-L20-M32U-AD-G18-F7 G 1/8 Nominal width (details) 5.7 mm 1 pc(s)

Item no:1942562

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

FESTO Magnetic valve 575257 VUVS-L20-M32C-AZD-G18-F7 G 1/8 Nominal width (details) 5.7 mm 1 pc(s)

Item no:1942563

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Documents & Downloads

Datasheet

Datasheet 1893819 FESTO Magnetic valve 8043214 VUVS-LK20-M52-AD-G18-1C1-S 24 V DC G 1/8 Nominal width (details) 5.2 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1893819 FESTO Magnetic valve 8043214 VUVS-LK20-M52-AD-G18-1C1-S 24 V DC G 1/8 Nominal width (details) 5.2 mm 1 pc(s)

Information

Information 1893819 FESTO Magnetic valve 8043214 VUVS-LK20-M52-AD-G18-1C1-S 24 V DC G 1/8 Nominal width (details) 5.2 mm 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
