Name: FESTO Magnetic valve 8116389 VSNC-F-P53C-MH-N14-F19 NAMUR OFF/NC 1 pc(s)
Brand: FESTO
SKU: 2801422
Availability: BackOrder

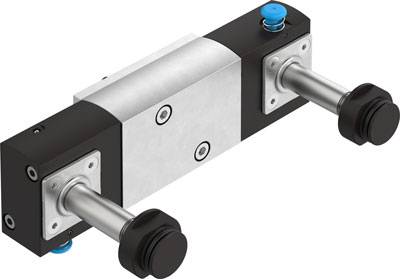

Pneumatic control valve with dual outlets, two pressure buttons on top, mountable, with silver and black housing components.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 405.00 / piece)

€ 405.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Product type: Magnetic valve

Max. operating pressure: 8 bar

Enclosure material: Aluminium wrought alloy

Connection: NAMUR

Operating temperature: -20 °C (min)

Media temperature (range): -20 up to +60 °C

Manufacturer part #: 8116389

Operating pressure (min.): 3 bar

Min. operating temperature: -20 °C

Sealant: NBR

Function: reducable

Weight: 619 g

Max. media temperature: +60 °C

Media temperature (min.): -20 °C

Medium: Compressed air

Features: NAMUR fitting

Width: 32 mm

QNn value: 1250 l/min

Max. ambient temperature: +60 °C

Min. ambient temperature: -20 °C

Operating principle: OFF/NC

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

FESTO Magnetic valve 577257 VSNC-FC-M52-MD-G14-F8 G 1/4, Circuit diagram 1 pc(s)

Item no:1942729

Dispatches on Wed 28 Oct

Conrad Electronic

G 1/4

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

FESTO Magnetic valve 577258 VSNC-F-B52-D-G14-F8 G 1/4, Circuit diagram 1 pc(s)

Item no:1942730

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

FESTO Magnetic valve 577259 VSNC-F-P53C-MD-G14-F8 G 1/4, Circuit diagram 1 pc(s)

Item no:1942731

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 577260 VSNC-F-P53U-MD-G14-F8 G 1/4, Circuit diagram 1 pc(s)

Item no:1942732

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 577261 VSNC-F-P53E-MD-G14-F8 G 1/4, Circuit diagram 1 pc(s)

Item no:1942733

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 577262 VSNC-FC-M52-MD-N14-F8 NPT1/4-18 , Circuit diagram 5/2 or 3/2 way 1 pc(s)

Item no:1942734

Dispatches on Wed 28 Oct

Conrad Electronic

NPT1/4-18

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 95.99^*

FESTO Magnetic valve 577263 VSNC-F-B52-D-N14-F8 NPT1/4-18 , Circuit diagram 1 pc(s)

Item no:1942735

Dispatches on Fri 23 Oct

Conrad Electronic

NPT1/4-18

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

FESTO Magnetic valve 577264 VSNC-F-P53C-MD-N14-F8 NPT1/4-18 , Circuit diagram 1 pc(s)

Item no:1942736

Dispatches on Fri 23 Oct

Conrad Electronic

NPT1/4-18

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 577265 VSNC-F-P53U-MD-N14-F8 NPT1/4-18 , Circuit diagram 1 pc(s)

Item no:1942737

Dispatches on Fri 23 Oct

Conrad Electronic

NPT1/4-18

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 577266 VSNC-F-P53E-MD-N14-F8 NPT1/4-18 , Circuit diagram 1 pc(s)

Item no:1942738

Dispatches on Fri 23 Oct

Conrad Electronic

NPT1/4-18

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

Documents & Downloads

Datasheet

Datasheet 2801422 FESTO Magnetic valve 8116389 VSNC-F-P53C-MH-N14-F19 NAMUR OFF/NC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2801422 FESTO Magnetic valve 8116389 VSNC-F-P53C-MH-N14-F19 NAMUR OFF/NC 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
