Name: FESTO Magnetic valve 9857 MFH-3-1/2 G 1/2 Nominal width (details) 14 mm 1 pc(s)
Brand: FESTO
SKU: 1895960
Availability: InStock

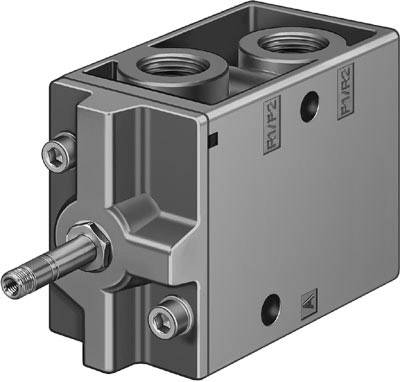

A grey, rectangular technical component with two top-located threaded apertures and a side connection stub. Suitable for pneumatic systems.

Datasheet (PDF)

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 275.00 / piece)

€ 275.00

incl. VAT

Only 2 Piece(s) available

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Magnetic valve MFH-3-1/2

Technical specifications

Product type: Magnetic valve

Max. operating pressure: 8 bar

Enclosure material: Aluminium (die-cast)

Connection: G 1/2

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Media temperature (range): -10 up to +60 °C

Manufacturer part #: 9857

Operating pressure (min.): 1.5 bar

Operation: Electrically

Sealant: NBR

Max. flow: 3700 l/min

Weight: 1100 g

Max. media temperature: +60 °C

Media temperature (min.): -10 °C

Nominal width: 14 mm

: IP65

Max. ambient temperature: +40 °C

Min. ambient temperature: -5 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Enclosure material

FESTO Magnetic valve 10348 MFH-5-1/8-S G 1/8 Nominal width (details) 5 mm 1 pc(s)

Item no:1894417

Dispatches on Thu 22 Oct

Conrad Electronic

G 1/8

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 10349 MFH-5-1/4-S G 1/4 Nominal width (details) 7 mm 1 pc(s)

Item no:1896286

Dispatches on Thu 22 Oct

Conrad Electronic

G 1/4

8 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

FESTO Magnetic valve 11121 MFH-3-1/8-SEU G 1/8 1 pc(s)

Item no:2804120

Dispatches on Tue 27 Oct

Conrad Electronic

G 1/8

8 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 189.99^*

FESTO Magnetic valve 11546 MFH-5-PK-3-L PK-3 Nominal width (details) 2.5 mm 1 pc(s)

Item no:1895439

Dispatches on Thu 22 Oct

Conrad Electronic

PK-3

8 bar

Aluminium

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

FESTO Magnetic valve 11967 MFH-3-3/4 G 3/4 Nominal width (details) 19 mm 1 pc(s)

Item no:1896436

Dispatches on Thu 22 Oct

Conrad Electronic

G 3/4

8 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 579.00^*

FESTO Magnetic valve 11968 MFH-3-3/4-S G 3/4 Nominal width (details) 19 mm 1 pc(s)

Item no:1896721

Dispatches on Thu 22 Oct

Conrad Electronic

G 3/4

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 585.00^*

FESTO Magnetic valve 150981 MFH-5/2-D-1-C Connector plate Nominal width (details) 8 mm 1 pc(s)

Item no:1896756

Dispatches on Thu 22 Oct

Conrad Electronic

Connector plate

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

FESTO Magnetic valve 150982 MFH-5/3G-D-1-C Connector plate Nominal width (details) 8 mm 1 pc(s)

Item no:1894575

Dispatches on Thu 22 Oct

Conrad Electronic

Connector plate

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 269.00^*

FESTO Magnetic valve 150983 MFH-5/3E-D-1-C Connector plate Nominal width (details) 8 mm 1 pc(s)

Item no:1895253

Dispatches on Thu 22 Oct

Conrad Electronic

Connector plate

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 269.00^*

FESTO Magnetic valve 150984 MFH-5/3B-D-1-C Connector plate Nominal width (details) 8 mm 1 pc(s)

Item no:1896457

Dispatches on Thu 22 Oct

Conrad Electronic

Connector plate

10 bar

Aluminium (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 269.00^*

Documents & Downloads

Datasheet

Datasheet 1895960 FESTO Magnetic valve 9857 MFH-3-1/2 G 1/2 Nominal width (details) 14 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1895960 FESTO Magnetic valve 9857 MFH-3-1/2 G 1/2 Nominal width (details) 14 mm 1 pc(s)

Information

Information 1895960 FESTO Magnetic valve 9857 MFH-3-1/2 G 1/2 Nominal width (details) 14 mm 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min

Description

Hints

Frequently Bought Together

(^*All information is plus legal VAT)

This article

FESTO Magnetic valve 9857 MFH-3-1/2 G 1/2 Nominal width (details) 14 mm 1 pc(s)

Conrad Electronic

€ 275.00^*

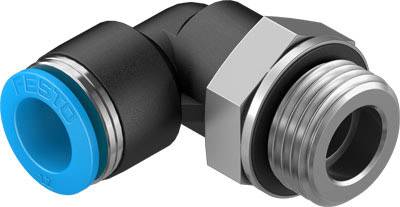

FESTO L-piece 186125 QSL-G1/2-12 Pipe diameter: 12 mm Thread size: G1/2" 1 pc(s)

Conrad Electronic

€ 12.99^*

FESTO Magnet coil 34411 MSFG-24/42-50/60-OD 42 V AC 1 pc(s)

Conrad Electronic

€ 20.99^*

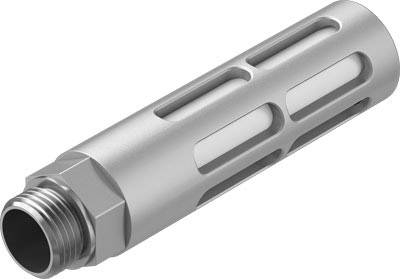

FESTO 6844 U-1/2-B 10 bar Polyethylene (PE), Aluminium 1 pc(s)
