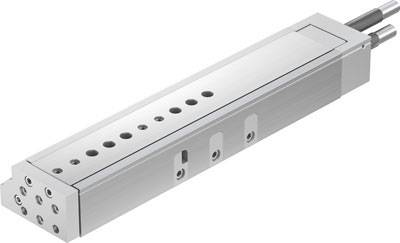

Silver pneumatic linear actuator with multiple connection openings and two piston rods, used in automation technology.

Silver pneumatic linear actuator with multiple connection openings and two piston rods, used in automation technology.

FESTO

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,795.00 / piece)

€ 1,795.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Mini slider DGSL-20-200-Y3A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Mini slider

Stroke length: 200 mm

Max. operating pressure: 8 bar

Material (details): Aluminum wrought alloy

Manufacturer part #: 544029

Type: Mini slide DGSL -20-200-Y 3A for position detection, with highly precise heavy-duty ball bearing guide and a very high repeatability, both hydraulic shock absorbers (Y3). Hub = 200 mm, adjustable end position range/length front = 132 mm, adjustable end position range/length rear = 42 mm, piston diameter = 25 mm, operating mode drive unit = Yoke

Weight: 4356 g

Size: 20

Sealant: HNBR

Pneumatics connector: G1/8"

Piston rod material: Steel (stainless)

Piston rod diameter: 25 mm

Force (max.): 295 N

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: not relevant
