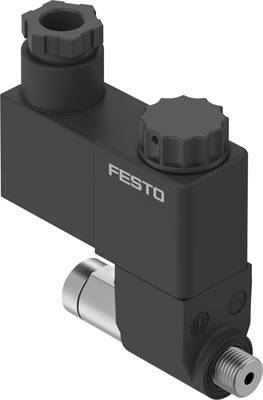

A black Festo valve with a silver connection. Valve top featuring two rotatable knobs for adjustment.

A black Festo valve with a silver connection. Valve top featuring two rotatable knobs for adjustment.

Image similar

FESTO

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Product type: Pilot valve

Operating voltage: 24 V DC/AC

Max. operating pressure: 8 bar

Enclosure material: PA

Connection: G 1/8

Operating temperature: -10 °C (min)

Media temperature (range): -10 up to +50 °C

Manufacturer part #: 8119587

Operating pressure (min.): -0.9 bar

Min. operating temperature: -10 °C

Sealant: NBR

Function: reducable

Weight: 160 g

Max. media temperature: +50 °C

Media temperature (min.): -10 °C

Medium: Compressed air

Nominal width: 1.3 mm

Features: P port connector (G1/8)

Width: 22 mm

QNn value: 50 l/min

: IP65

Max. ambient temperature: +50 °C

Min. ambient temperature: -10 °C

Operating principle: OFF/NC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2802049 FESTO Pilot valve 8119587 VOFX-LT-M32C-MY-G18-SG18-1B2 24 V DC/AC G 1/8 Nominal width (details) 1.3 mm OFF/NC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2802049 FESTO Pilot valve 8119587 VOFX-LT-M32C-MY-G18-SG18-1B2 24 V DC/AC G 1/8 Nominal width (details) 1.3 mm OFF/NC 1 pc(s)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min

Description

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
