Name: FESTO Servo motor 5242197 EMMT-AS-60-S-LS-RM 1.6 A
Brand: FESTO
SKU: 2207824
Availability: BackOrder

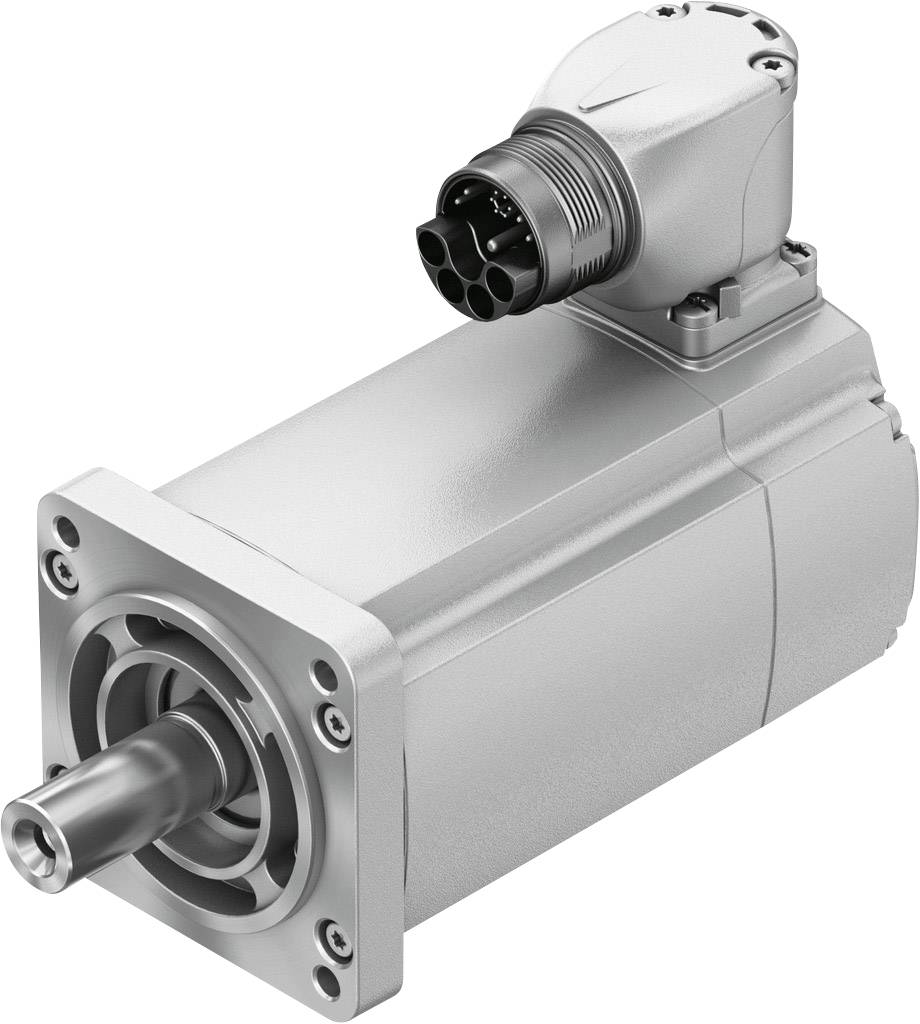

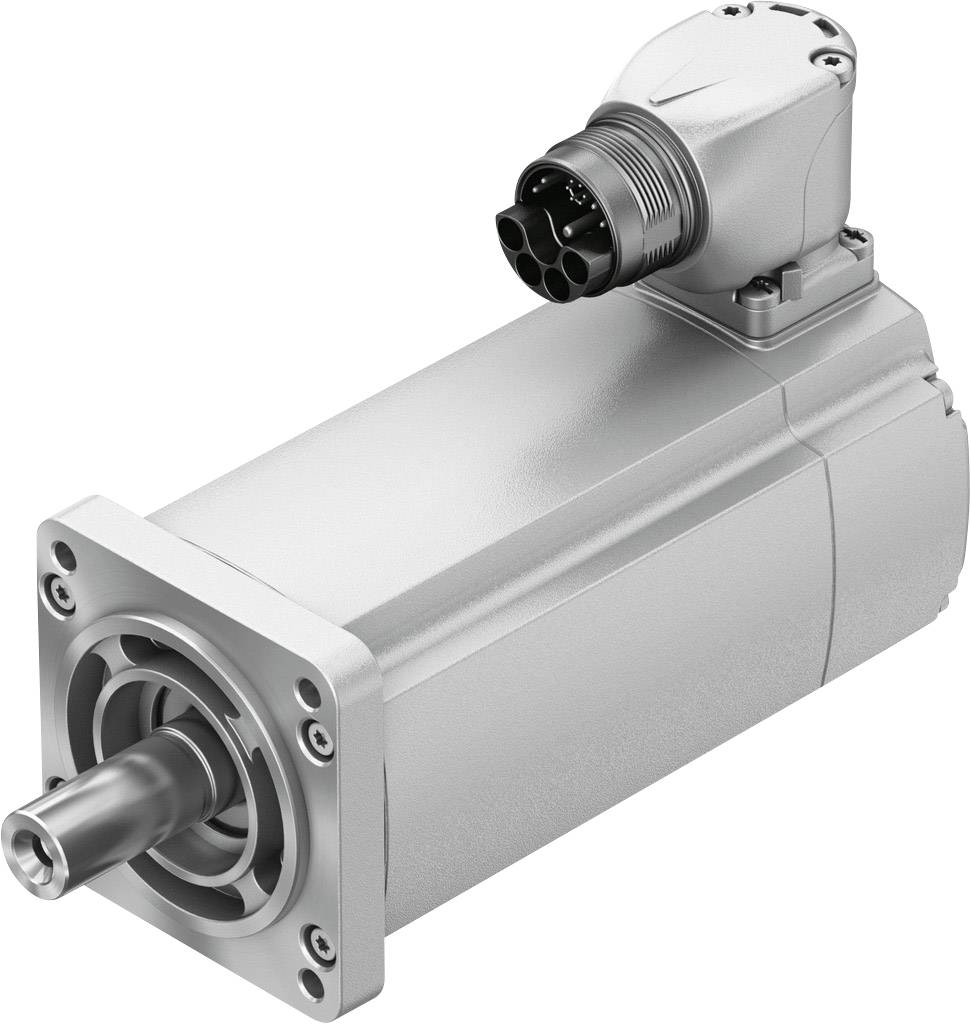

A silver electric motor with an angled connection piece on the top side, secured with screws on the flange. Suitable for industrial applications.

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,089.00 / piece)

€ 1,089.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Storage temperature: -20 °C to +70 °C.
Relative humidity: 0 - 90 %
Note on ambient temperature: Up to 80°C with derating -1.5 %/°C.
Max. Installation height 4,000 m.
Note on max. installation height: From 1,000 m only with derating of -1 % per 100 m.
Max. Winding temperature 155 °C.
Rated class according to EN 60034-1: S1
Temperature monitoring: Digital motor temperature transmission via EnDat 2.2
MOTOR DESIGN ACCORDING TO EN 60034-7: IN B5, IN V1, IN V3
All mounting positions permitted
Note on protection class: IP40 motor shaft without RWDR, IP65 motor shaft with RWDR, IP67 for motor housing including connection technology
Concentricity, coaxiality, flatness according to DIN SPEC 42955: N
Balancing quality: G 2.5
Detent torque: 1% of peak torque
Bearing life at nominal conditions: 20,000 h
Engine Out interface code: 60p
Electrical connection 1, connection type: Hybrid connector
Electrical connection 1, connection technology: M23x1
Electrical connection 1, number of poles/wires: 15
Pollution level: 2
Corrosion resistance class KBK: 0 - no corrosion stress
Winding switching mode: Star inside
Number of pole pairs: 5
Standstill torque: 0.7 Nm
Peak torque 1.6 Nm
Max. Speed: 7,100 rpm
Max. Mechanical speed: 16,000 rpm
Constant current: 1.7 A.
Peak current: 5.4 A;
Motor constant 0.41 Nm/A.
Standstill torque constant: 0.49 Nm/A.
Voltage constant phase-phase: 29.9 mVmin
Winding resistance phase-phase: 11.7 Ohm
Winding inductance phase-phase: 21 mH
Winding Longitudinal inductance LD (phase): 13 mH
Winding cross-inductance LQ (phase): 15.5 mH
Electrical time constant: 2.1 ms
Thermal time constant: 40 min.
Thermal resistance 1.3 K/W
Measuring flange 250 x 250 x 15 mm, steel
Total output moment of inertia: 0.169 kgcm²
Permissible axial shaft load 70 N.
Permissible radial shaft load 350 N.
Rotor position encoder: Encoder absolutely multi turn
Rotor position sensor Manufacturer's name: EQI 1131
Rotor position sensor absolute detectable revolutions: 4,096
Rotor position sensor interface: EnDat 22
Rotor position sensor measuring principle: Inductive
Rotor position sensor operating voltage DC 5 V
Rotor position sensor operating voltage range: 3.6 V/DC - 14 V/DC
Rotor position sensor position values per revolution: 524.288
Rotor position sensor resolution: 19 bits
Rotor position sensor System accuracy Angle measurement: -120 ... 120 arcsec

Product type: Servo motor

Manufacturer part #: 5242197

Type: EMMT-AS-60-S-LS-RM

Rotational speed: 3000 U/min

Weight: 1180 g

Nominal torque: 0.64 Nm

Nominal power: 200 W

Nominal voltage: 325 V

Nominal current: 1.6 A

Pins: 15

Width: 250 mm

: IP40

Max. ambient temperature: +40 °C

Min. ambient temperature: -15 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2207824 FESTO Servo motor 5242197 EMMT-AS-60-S-LS-RM 1.6 A

Description

• dynamic, brushless
, permanent-magnet synchronous servo motors
• extremely low latching torque –
supports high synchronous operation
even at low speeds
• Digital absolute measuring system
can be selected:
– Single-turn
– Multiturn, batteryless

• Simple connection technology
(OCP: One cable plug) – Hybrid cable: Motor and connection cable for supply and
encoder in one
• Motor connector
can be aligned
• Torque optimized
• Speed optimized
• Protection class:
– IP40 (motor shaft)
– IP67 (motor housing with connection technology)
– IP65 (motor shaft with radial shaft seal made of PTFE)

• Motor temperature transmission digitally via EnDat 2.2; Motor protection via CMMT-AS • Optional:

– Holding brake
– Shaft with key
– Motor shaft with radial shaft seal

This text is machine translated.
