Name: FESTO Servo motor 5255429 EMMT-AS-80-S-HS-RS 1.46 Nm 1.76 A 5.4 A
Brand: FESTO
SKU: 2207940
Availability: BackOrder

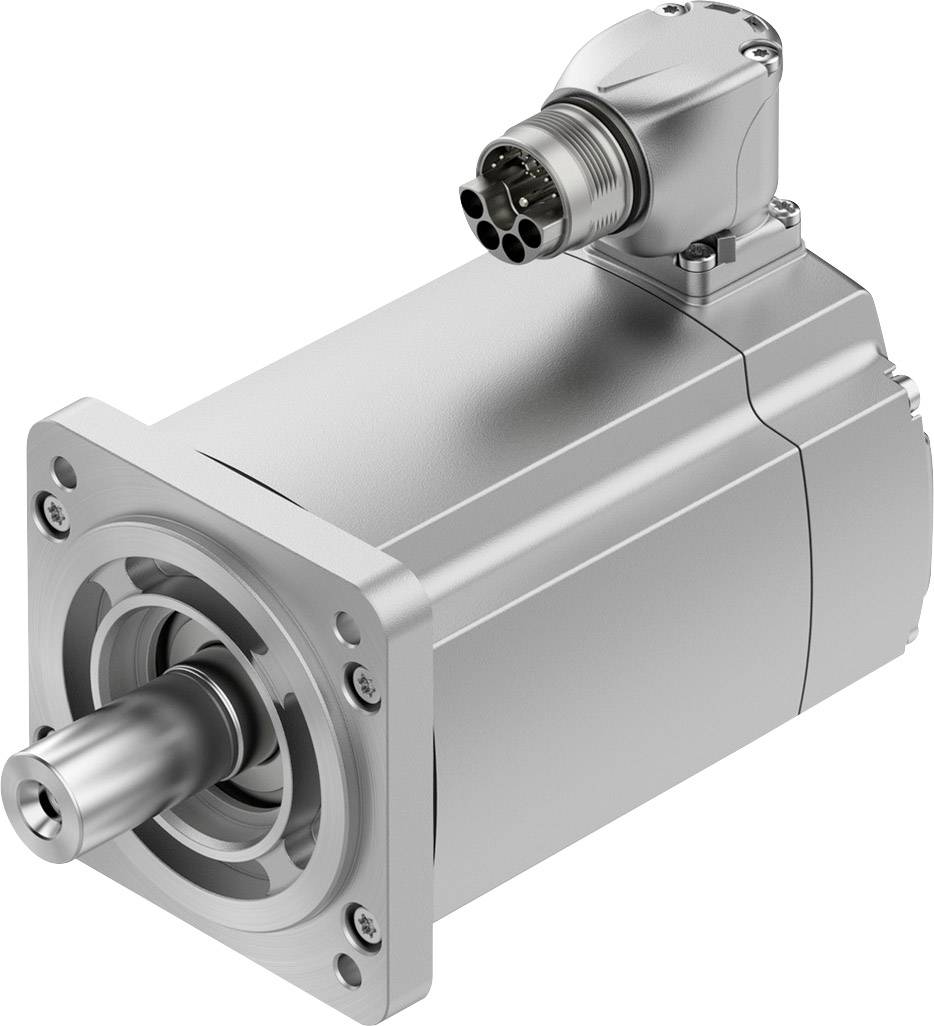

A compact servo motor with a cylindrical metal casing and a connection socket, suitable for precise motion control.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,069.00 / piece)

€ 1,069.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Ambient temperature: -15 ... 40 °C).
Storage temperature: -20 ... 70 °C
Max. Installation height 4,000 m.
Note on max. installation height: From 1,000 m only with derating of -1.0% per 100 m.
Relative humidity: 0 - 90 %
Temperature class according to EN 60034-1: F
Max. Winding temperature 155 °C.
Rated class according to EN 60034-1: S1
Temperature monitoring: Digital motor temperature transmission via EnDat 2.2
Motor design according to EN 60034-7: IN B5
IN V1
IN V3
All mounting positions permitted
Protection class: IP40
Note on protection class: IP40 motor shaft without RWDR
IP65 motor shaft with RWDR
IP67 for motor housing including connection technology
Locking torque<: 1.0% of peak torque
Bearing life at nominal conditions: 20,000 h
Engine Out interface code: 80P
Electrical connection 1, connection type: Hybrid connector
Electrical connection 1, connection technology: M23x1
Electrical connection 1, number of poles/wires: 15
Pollution level: 2
Corrosion resistance class KBK: 0 - no corrosion stress
Winding switching mode: Star inside
Number of pole pairs: 5
Stall torque: 1.46 Nm
Nominal torque: 1.3 Nm
Peak torque 2.8 Nm
Max. Speed 7440 rpm
Max. Mechanical speed 14000 rpm
Motor rated power 408 W.
Constant current 2 A.
Motor constant: 0.74 Nm/A.
Standstill torque constant: 0.89 Nm/A.
Voltage constant phase-phase: 53.6 mVmin
Phase-phase winding resistance: 12.4 ohms
Winding inductance Phase-Phase: 39.8 mH
Winding Longitudinal inductance LD (phase): 25 mH
Winding cross-inductance LQ (phase): 29.8 mH
Electrical time constant: 4.8 ms
Thermal time constant: 42 min.
Thermal resistance 0.95 K/W
Measuring flange 250 x 250 x 15 mm
Total output moment of inertia: 1.33 kgcm2
Product weight: 202020g
Permissible axial shaft load 120 N.
Permissible radial shaft load 620 N.
Rotor position sensor absolute detectable revolutions: 1
Rotor position sensor interface: EnDat 22
Rotor position sensor measuring principle: Inductive
Rotor position sensor operating voltage DC 5 V
Rotor position sensor operating voltage range DC: 3.6 ... 14 V
Rotor position sensor position values per revolution: 262,144
Rotor position sensor resolution: 18 bits
Rotor position sensor System accuracy Angle measurement: -120 ... 120 arcsec
MTTF, component part: 190 years, rotor position sensor
MTTFd, component part: 380 years, rotor position sensor

Product type: Servo motor

Flange size: 250 mm

Holding torque: 1.46 Nm

Max. phase load: 5.4 A

Manufacturer part #: 5255429

Type: EMMT-AS-80-S-HS-RS

Rotational speed: 3000 U/min

Weight: 2020 g

Nominal torque: 1.3 Nm

Nominal power: 408 W

Nominal voltage: 565 V

Nominal current: 1.76 A

Max. ambient temperature: 40 °C

Min. ambient temperature: -15 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2207940 FESTO Servo motor 5255429 EMMT-AS-80-S-HS-RS 1.46 Nm 1.76 A 5.4 A

User & Safety Instructions

User & Safety Instructions 2207940 FESTO Servo motor 5255429 EMMT-AS-80-S-HS-RS 1.46 Nm 1.76 A 5.4 A

Description

• dynamic, brushless
, permanent-magnet synchronous servo motors
• extremely low latching torque –
supports high synchronous operation
even at low speeds
• Digital absolute measuring system
can be selected:
– Single-turn
– Multiturn, batteryless

• Simple connection technology
(OCP: One cable plug) – Hybrid cable: Motor and connection cable for supply and
encoder in one
• Motor connector
can be aligned
• Torque optimized
• Speed optimized
• Protection class:
– IP40 (motor shaft)
– IP67 (motor housing with connection technology)
– IP65 (motor shaft with radial shaft seal made of PTFE)

• Motor temperature transmission digitally via EnDat 2.2; Motor protection via CMMT-AS • Optional:

– Holding brake
– Shaft with key
– Motor shaft with radial shaft seal

This text is machine translated.
