Name: FESTO Vacuum nozzle VAD-1/4 9394 G 1/4 Nominal width (details) 1 mm Enclosure material Aluminium (die-cast)
Brand: FESTO
SKU: 2203617
Availability: BackOrder

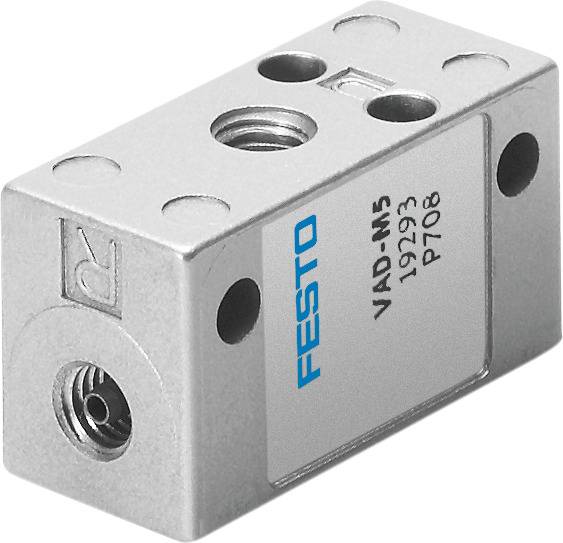

Silver Festo component 'VAD-M5' with multiple connections, suitable for pneumatic applications.

Image similar

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 154.99 / piece)

€ 154.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Mounting type: With through hole
Operating pressure: 1.5 ... 10 bar
Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
All mounting positions permitted
Ejector characteristic: High vacuum
Note on operating and control medium: Oiled operation possible (required in further operation)
Constructive structure: T-shape
Max. Vacuum 0.8
Medium temperature: -20 ... 80 °C
Nominal diameter Laval nozzle: 1 mm
Pneumatic connection 1: g1/4
Pneumatic connection 3: g1/4
Ambient temperature: -20 ... 80 °C
Vacuum connection: g1/4
Housing material: Die-cast aluminum
Material information: Free of copper and PTFE

Operating medium: Compressed Air

Product type: Vacuum nozzle

Enclosure material: Aluminium (die-cast)

Connection: G 1/4

Max. operating pressure: 10 bar

Operating temperature: -20 °C (min)

Min. operating temperature: -20 °C

Manufacturer part #: 9394

Operating pressure (min.): 1.5 bar

Weight: 90 g

Media temperature (range): -20 up to 80 °C

Max. media temperature: 80 °C

Media temperature (min.): -20 °C

Medium: Compressed air

Nominal width: 1 mm

Features: P port connector (G1/4)

Control pressure (max.): 10 bar

Control pressure (min.): 1.5 bar

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: not relevant
