Image similar

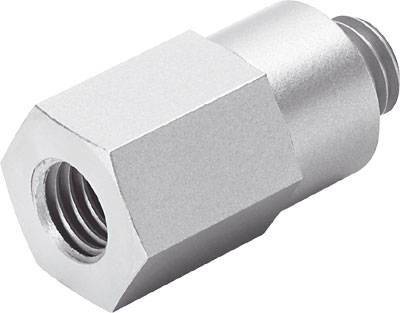

FESTO Vacuum suction valve ISV-M4 545996 M4 Enclosure material Aluminium wrought alloy
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 25.99 / piece)
€ 25.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Discharge impulse capability:< = 8 bar
- Size M4:
- Mounting type: Screw-in
- Operating pressure: -0.95 ... 0 bar
- Operating medium: Compressed air according to ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Required suction flow at -0.5 bar: 1 l/min.
- Corrosion resistance class KBK: 2 - moderate corrosion stress
- Pneumatic connection 1: M4
- Pneumatic connection 2: M4
- Product weight: 1.5 g
- Ambient temperature: -10 ... 60 °C
- Material filter: Sintered bronze
- Material casing: Aluminum wrought alloy
- Operating medium
Compressed Air
- Product type
Vacuum suction valve
- Enclosure material
Aluminium wrought alloy
- Connection
M4
- Max. operating pressure
-0.95 bar
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Type
Corrosion resistance class KBK: 2 - moderate corrosion stress
- Manufacturer part #
545996
- Operating pressure (min.)
-0.95 bar
- Weight
1.5 g
- Medium
Compressed air
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-10 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204413 FESTO Vacuum suction valve ISV-M4 545996 M4 Enclosure material Aluminium wrought alloy
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
