FESTO VHER-P-H-B43U-B-G12 Valve accessories 0 up to 10 bar 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 244.99 / piece)
€ 244.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

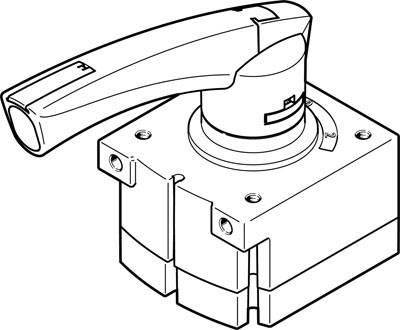

Valve accessories VHER-P-H-B43U-B-G12
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Valve accessories
- Min. display range
0 bar
- Display range (max.)
10 bar
- Operating temperature
-20 up to +80 °C
- Min. operating temperature
-20 °C
- Max. operating temperature
+80 °C
- Manufacturer part #
3192084
- Connection
G 1/2
- Max. operating pressure
10 bar
- Operating pressure (min.)
0 bar
- Pressure range
0 up to 10 bar
- Operating medium
Compressed air
- Function
3/2-way
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1945533 FESTO VHER-P-H-B43U-B-G12 Valve accessories 0 up to 10 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1945533 FESTO VHER-P-H-B43U-B-G12 Valve accessories 0 up to 10 bar 1 pc(s)
Description
Innovative
· Small, compact for a wide range of pneumatic applications
· Numerous selectable valve functions; 3/2-way, and 5/2-way functions
· With a flow of up to 1000 l/min offer the VHEMVentile high pneumatic performance for a variety of tasks.
· Lightweight
· Low operating forces
Multipurpose
· The flexibility of the pneumatic work ports free individual requirements in line with the practice
· Round silencer for mounted exhaust air
· Partially suitable for vacuum
· Partially reverse operation possible
· Actuation: directly and pre-controls
· Pressure range of vacuum up to 10 bar possible
Reliable
· Durable through proven piston valves, and piston valves
· Robust through metal or plastic casing and connecting thread, or Connectors
Easy to install
· Front panel or on mounting bracket can be mounted
This text is machine translated.
· Small, compact for a wide range of pneumatic applications
· Numerous selectable valve functions; 3/2-way, and 5/2-way functions
· With a flow of up to 1000 l/min offer the VHEMVentile high pneumatic performance for a variety of tasks.
· Lightweight
· Low operating forces
Multipurpose
· The flexibility of the pneumatic work ports free individual requirements in line with the practice
· Round silencer for mounted exhaust air
· Partially suitable for vacuum
· Partially reverse operation possible
· Actuation: directly and pre-controls
· Pressure range of vacuum up to 10 bar possible
Reliable
· Durable through proven piston valves, and piston valves
· Robust through metal or plastic casing and connecting thread, or Connectors
Easy to install
· Front panel or on mounting bracket can be mounted
This text is machine translated.
