Finder 48.61.8.230.1060 Crossbar switch 230 V AC 16 A 1 change-over 1 pc(s)

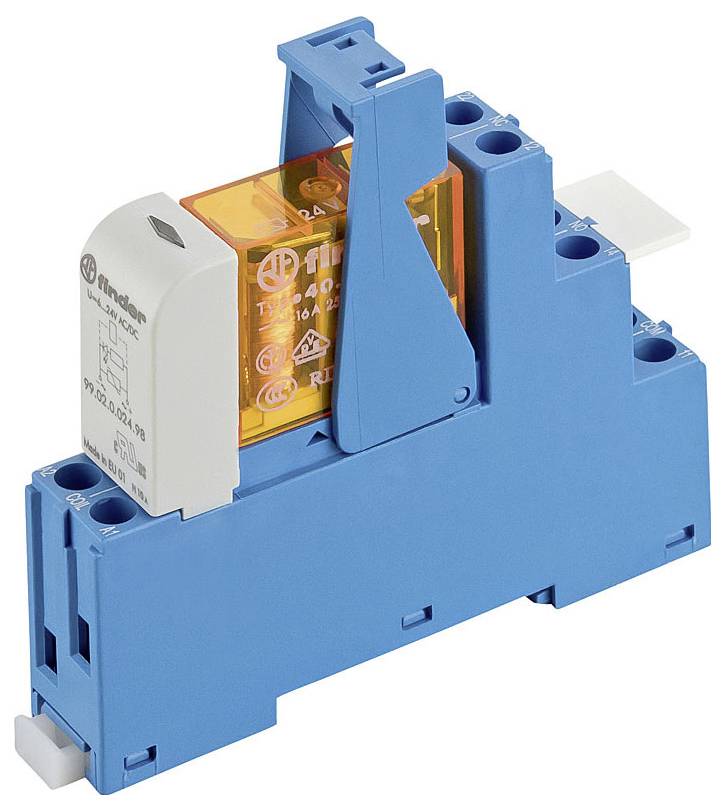

A blue relay socket with an orange electromechanical relay attached, featuring electrical specifications on its surface.
Product type
Crossbar switch
Contact type
1 change-over
Nominal voltage
230 V AC
Switching voltage (max.)
400 V AC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
103 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 23.99 / piece)
€ 23.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Coupling Relays

  • 1 CHANGER 16 A / 250 V AC
  • Coil voltage 230 V AC
  • Contact material AgNi
  • With integrated LED and EMC interference suppression

Technical specifications

Product type

Crossbar switch

Type

48.61.8.230.1060

Factory colour

Blue

Grey

Min. pick-up voltage

184 V AC

Max. pick-up voltage

253 V AC

Response time

7 ms

Fall time

4 ms

Contact type

1 change-over

Contact material

AgNi

Nominal voltage

230 V AC

Switching voltage (max.)

400 V AC

Switching current (max.)

16 A

Max. switching capacity

4000 VA

Creepage distance (coil/clips)

8 mm

Coil voltage rating

1.2 VA

Features

+ varistor

+ diode

IP20

Max. temperature

70 °C

Min. temperature

-40 °C

Length

75.3 mm

Width

15.8 mm

Height

78.6 mm

Dim

(L x W x H) 75.3 x 15.8 x 78.6 mm

Content

1 pc(s)

Industrial packaging

Yes

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 3702239 Finder 48.61.8.230.1060 Crossbar switch 230 V AC 16 A 1 change-over 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3702239 Finder 48.61.8.230.1060 Crossbar switch 230 V AC 16 A 1 change-over 1 pc(s)

Description

Coupling relays for DIN rail with screw connections
