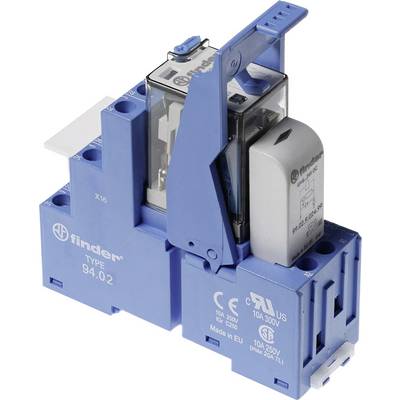

Finder 58.32.9.024.5050 Crossbar switch 24 V DC 10 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crossbar switch
Contact type
2 change-overs
Nominal voltage
24 V DC
Switching voltage (max.)
250 V AC
Switching current (max.)
10 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 1 Piece(s) available
Technical specifications
- With removable terminals: No.
- Drive, polarity: Reversed
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: Yes
- Product type
Crossbar switch
- Type
58.32.9.024.5050
- Connection
Screw terminal
- Max. pick-up voltage
24 V DC
- Contact type
2 change-overs
- Contact material
AgNi hard gold plated
- Nominal voltage
24 V DC
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
- Features
+ LED
IP20
- Depth
86.9 mm
- Width
27 mm
- Height
78.4 mm
- Dim
(W x H x D) 27 x 78.4 x 86.9 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
27
83 mm
76 mm
20 A
FALSE
Polarized
Mono stable
FALSE
Single contact
TRUE
Screw connection
24-24 V
Gold
DC
IP20
TRUE
19.2-26.4 V
DC
0
0
2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323634 Finder 58.32.9.024.5050 Crossbar switch 24 V DC 10 A 2 change-overs 1 pc(s)
Description
Coupling relays for DIN rail with screw terminals, 2 changer 10 A / 250 V AC, coil voltage 24 V DC, contact material AgNi hard gold plated, with integrated LED and EMC interference suppression
