Buy Fischer 090919 FAZ II 8/10 K NV Cavity fixing 1 Set

A metal expansion bolt anchor with a threaded shaft, sleeve, and hex nut, shown horizontally on a white background.

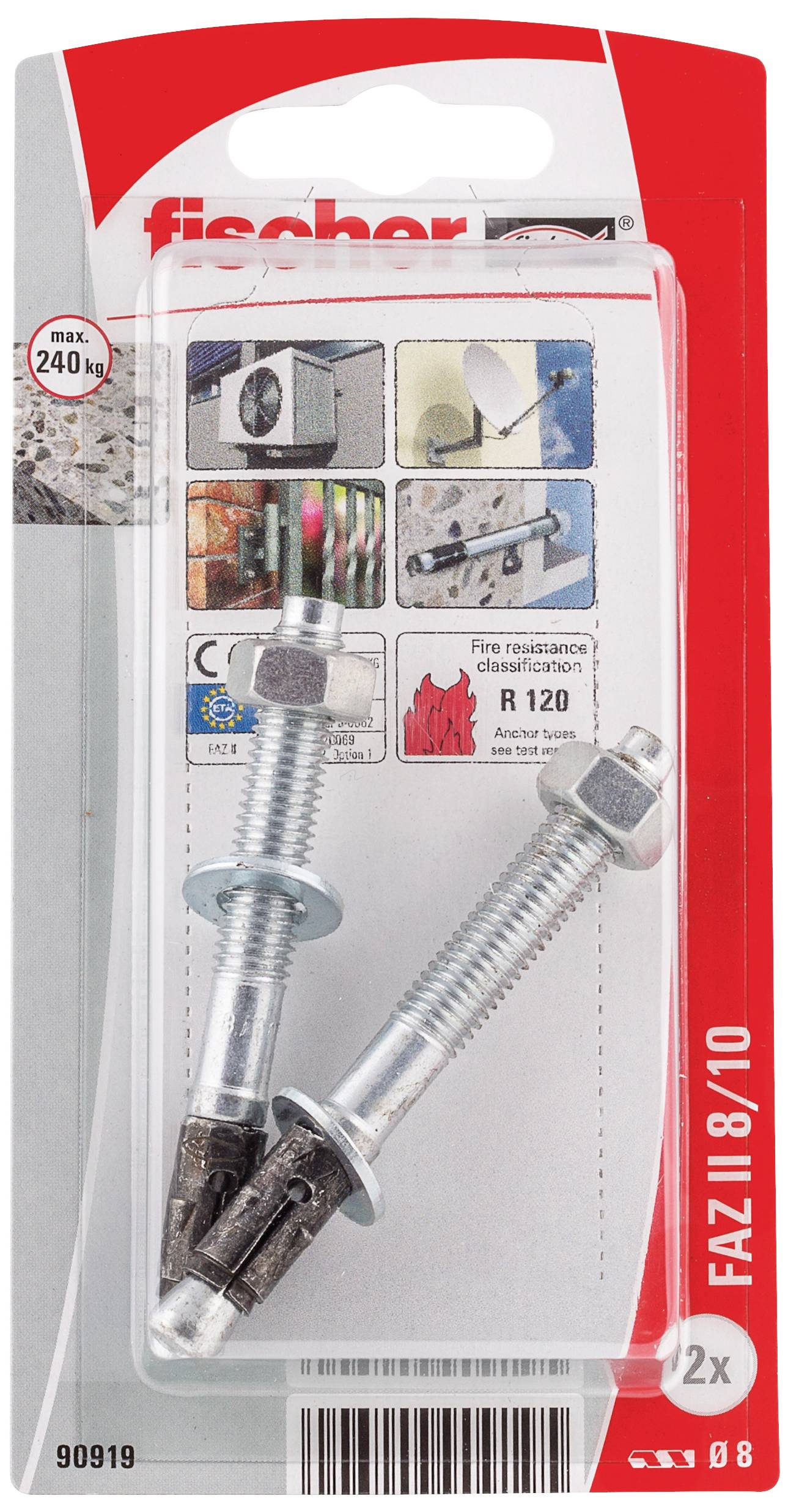

Two Fischer heavy-duty anchors FAZ II with metal nut in blister packaging. Suitable for heavy loads up to 240 kg and fire protection class R 120.

Balcony with a glass balustrade. Sunlight falls on the concrete floor. Large windows in the background offer a view of green trees.

A large, modern warehouse with a conveyor belt in the centre, surrounded by tall shelving stacked with boxes and industrial lighting.

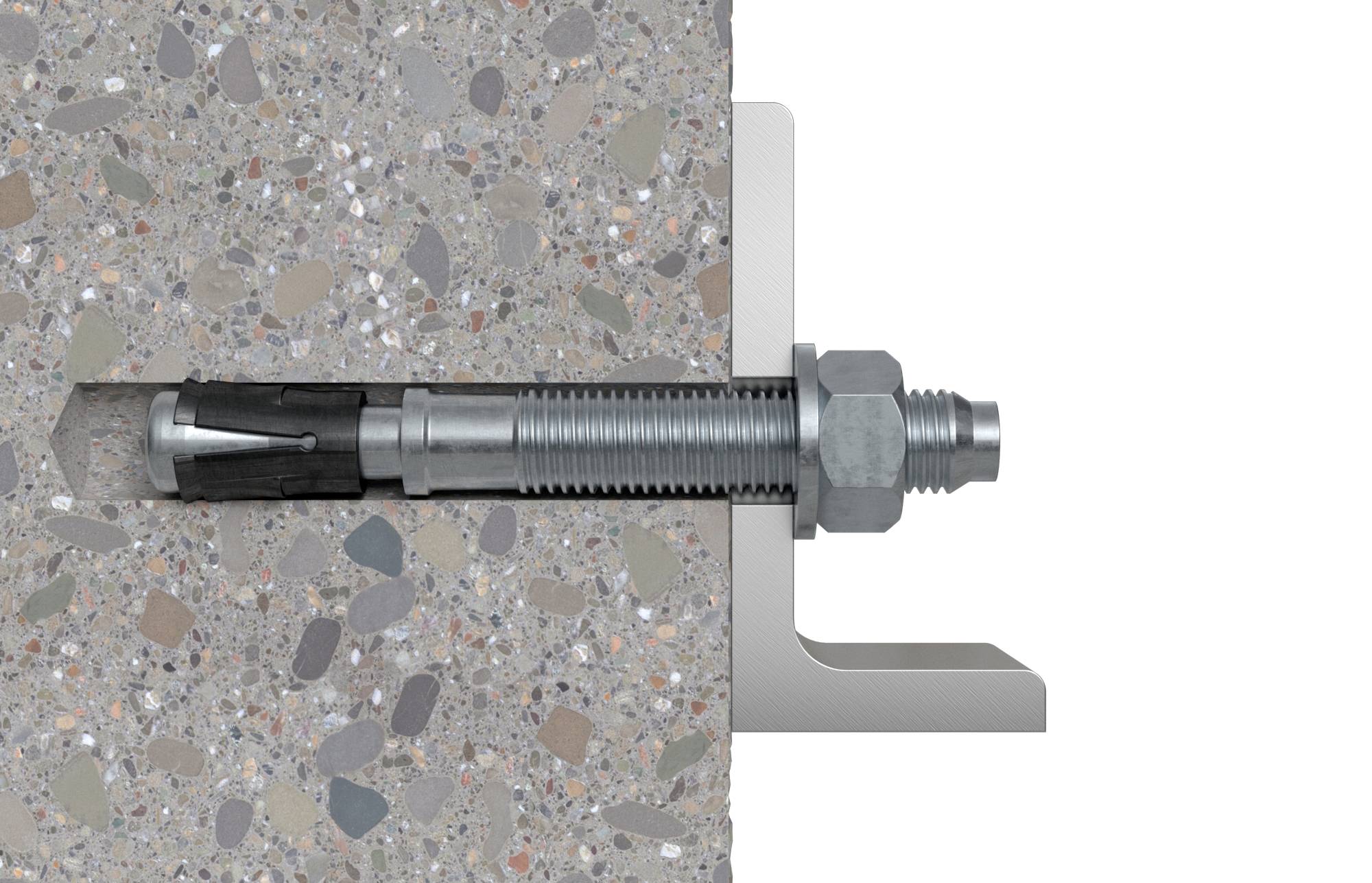

Metal screw with wall plug anchored in concrete, shows cross-section for stable fixing.

A drill penetrates from the right into a wall made of patterned material. A red arrow indicates the drilling movement.

A diagram shows an injection into a concrete wall with an arrow indicating the flow direction of the material.

Illustration of a bolt anchor in a concrete wall. An arrow shows how the nut is tightened to secure the anchor.

Bolt cutter incorrectly anchored in wall; text 'Tinst' indicates direction of rotation.

Technical Drawing: A bolt anchor is anchored in concrete, shown in cross-section. The bolt displays details of the anchoring.

'Diagram of a drill hole through a concrete wall with marking: h2,nc = h2 + 15 mm', shows drill extension line.

'Drilling Process: Drill penetrates through material, drill holes 3 times longer than the diameter. Diagram shows material layers and drill movement.'

Diagram shows a brick wall with an insulation layer filled with material. A cross indicates that the insulation layer should not be penetrated.

Illustration of a wall plug mechanism in cross-section. Shows how a wall plug is secured in a wall, with a red arrow indication.

Illustration of a wall plug in a wall with an arrow indicating the rotation direction. The text 'Tinst C' is positioned to the right of the wall plug.

Figure of a heavy-duty wall plug inserted into a wall. The plug demonstrates its anchoring in the masonry with thread and nut.

Schematic diagram of a screw in a concrete wall. A red line points to the screw head marked with 'SL-H'.

Anchor bolt mounted in wall. An eye icon with a red arrow points to the anchor. Red warning symbol.

Illustration of a wall plug mechanism secured with a screw. A red arrow indicates the direction of rotation.

Rawlplug in wall with bolt, arrows indicating rotation direction, and warning symbols; note on correct installation and caution.

Illustration of an anchor in a wall. A screw nut is being turned to secure or release the anchor in the wall material.

Diagram of an anchor bolt in concrete with thread, nut, and an arrow indicating a rotational movement.

Cross-section of a concrete wall with an anchor. The direction of tightening is indicated by a red arrow on the right.

'Illustration of a wall plug in a wall, showing the anchoring and fixing in the building material, screw cross-sectioned.'

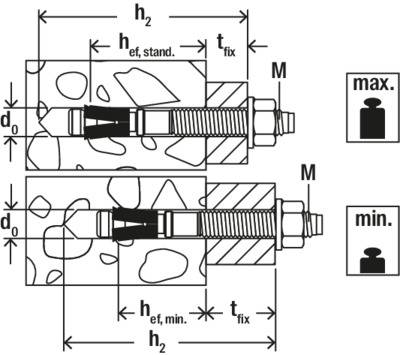

Technical drawing of two heavy-load anchors in concrete, showing construction dimensions such as screw-in depth and concrete thickness. Symbols for maximum and minimum load are depicted.

1/25

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

7 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 3.61 / piece)

€ 3.61

plus VAT.

Only 7 Set(s) available

Report legal concerns

Highlights & Details

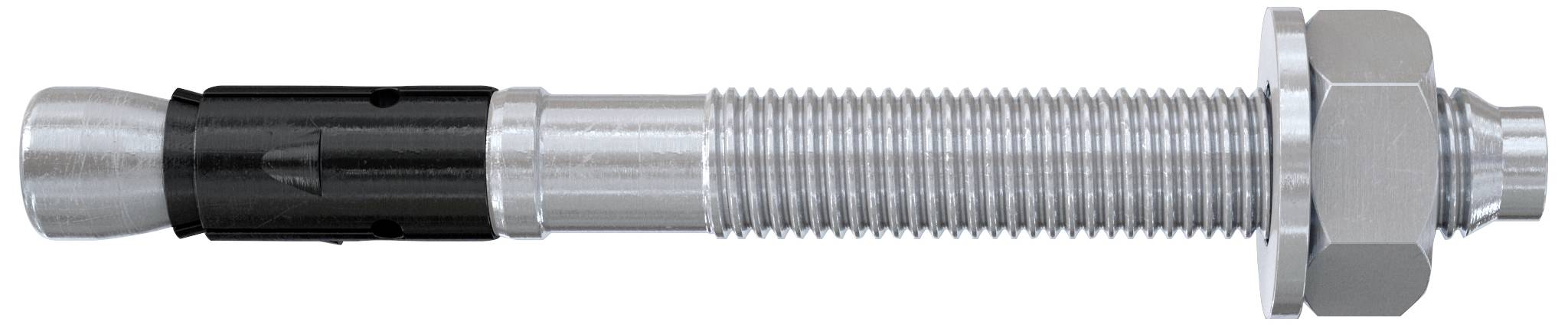

Fischer FAZ II 8/10 K NV pin anchor

With split clip for maximum load carrying capacity: This means fewer attachment points and smaller anchor plates are needed. This saves time and money.
Easy to mount: Few hammer strokes and minimum slip. This saves time and power.
Maximum safety in tunnels and swimming pools.
General design approval for anchoring in reinforced concrete for the fischer bolt anchors FAZ II, FAZ II R and FAZ II LCR (diameter M6 - M24).

Technical specifications

(Ø): 8 mm

Product type: Cavity fixing

Material: Steel

Length: 38 mm

Screw diameter: 8 mm

Dim: (Ø x L) 8 mm x 38 mm

Suitable for: Concrete
Flintlime bricks

Content: 1 Set

Outside Ø: 8 mm

Features: incl. nut

Material properties: zinc galvanized

Documents & Downloads

Datasheet

Datasheet 3065913 Fischer 090919 FAZ II 8/10 K NV Cavity fixing 1 Set

User & Safety Instructions

User & Safety Instructions 3065913 Fischer 090919 FAZ II 8/10 K NV Cavity fixing 1 Set

Information

Information 3065913 Fischer 090919 FAZ II 8/10 K NV Cavity fixing 1 Set

Description

The Fischer FAZ II pin anchor is recommended for mounting heavy objects in concrete. With the proven expanding clip the steel dowel meets highest requirements. The split clip tightens up against the drilled hole wall when the nut is tightened and guarantees a powerful mounting. The steel plug can be easily installed: Hit with a hammer and then tighten with a torque wrench - done. The bolt anchor made of electrogalvanized steel is particularly flexible to use, because it can be used to fix a wide range of objects indoors such as TV consoles, stair railings or cable trays.
