Buy Fischer 090920 FAZ II 10/10 K NV Cavity fixing 1 Set

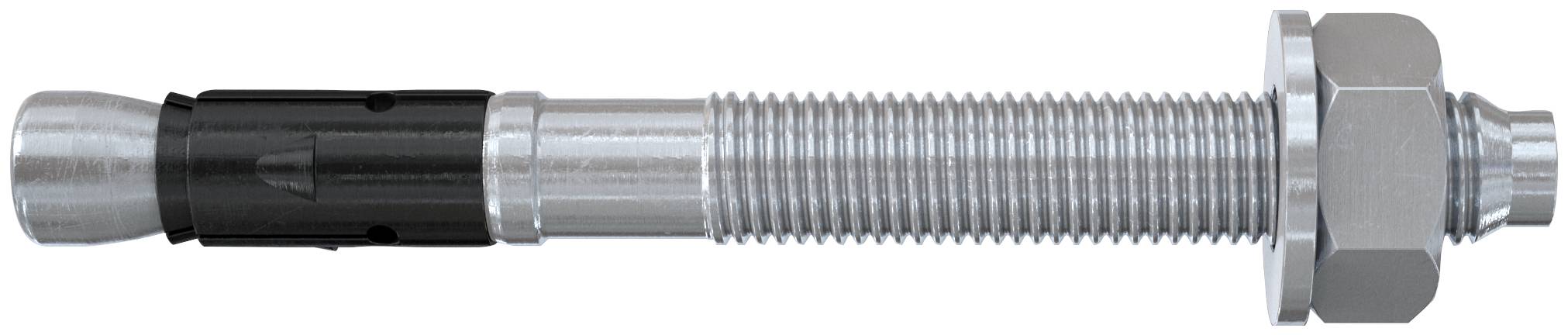

Metal expansion anchor bolt with threaded shaft, hex nut, and cone sleeve on a white background.

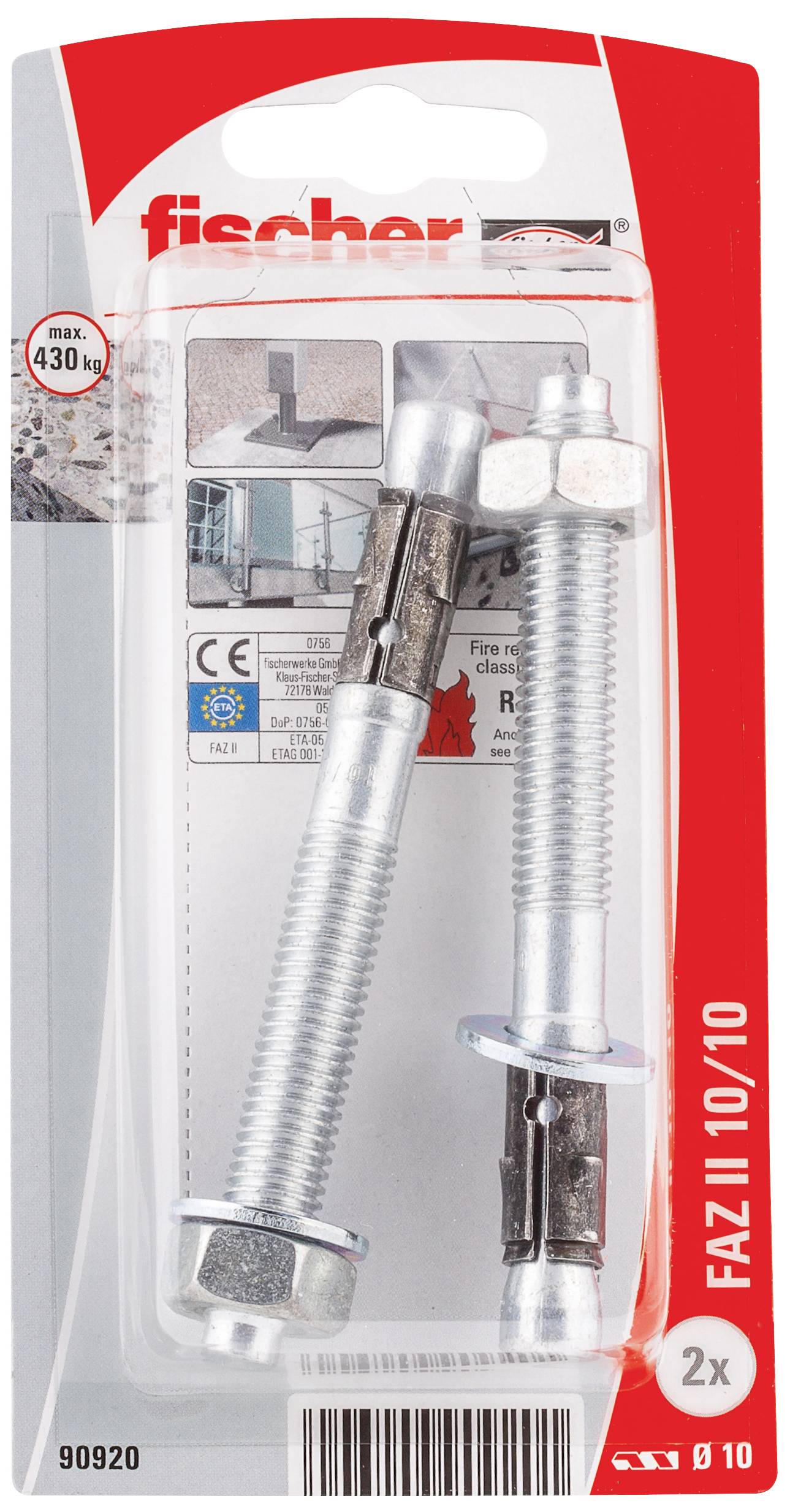

Two Fischer metal heavy-duty anchors in a blister pack, suitable for concrete fixings with a load-bearing capacity up to 430 kg, type FAZ II 10/10.

A modern balcony with a glass balustrade and metal supports. In the background, large windows reveal the interior of a building.

A large warehouse with a conveyor belt in the centre, filled with boxes and shelves. It depicts an industrial environment with modern equipment.

Metal screw and wall plug anchored in concrete, side view. Demonstrates fixing technique for stable constructions in building projects.

A drill penetrates horizontally into a concrete wall, with a red arrow marker indicating the direction of entry.

Longitudinal section through a material with crack formation; an arrow indicates the crack's direction of propagation outwards.

Illustration of a wall mounting: Screw with wall plug fitted in concrete wall. Arrow pointing to the right, symbol for tightening the nut.

Masonry with an anchored wall plug. On the right, the installation torque 'Tinst' is specified, which is required for fixing.

Cross-section of a screw secured in a masonry wall built with stones. Reveals the internal details of the anchoring.

Drilling process in a wall shown, with the note 'h2,nc = h2 + 15 mm' in red, which describes the depth of the drilling.

Drilling Process: A drill penetrates material with a marking of '3x'; indication of rotational direction or number of revolutions.

Cross-sectional view of a rock borehole with a blocked pipe that does not allow flow, marked with a red cross.

Image of a metal anchor in a wall, secured with a screw. An arrow indicates the direction for tightening the nut.

'Figure of an expandable concrete anchor placed in a wall. The anchor has a nut and a washer, with an arrow indicating the 'Tinst C' setting.'

Schematic illustration of an anchor bolt being installed in a concrete wall. Shows the mounting position and method of fixing.

A technical drawing shows an anchor bolt mounted in a concrete wall. An arrow marks the area 'SL-H'.

'Diagram shows the correct installation of an anchor in a wall. A screw is inserted into a wall plug with pre-tension.'

A cross-section diagram shows an anchor bolt embedded in concrete. The bolt is secured by a nut which is tightened by turning clockwise.

Illustration shows an anchor bolt in a concrete wall. An eye and an exclamation mark indicate caution when tightening the bolt.

Image of a sleeve anchor being inserted into a wall. A spanner is tightening the nut to secure the anchor.

A mechanism for securing an anchor in concrete: a screw with a nut, which is tightened clockwise using a spanner.

A bolt anchor is installed in a concrete wall. A red arrow and the word 'Tinst' mark the correct direction of rotation for tightening.

Cross-section of a steel screw anchored in a wall with a wall plug. The screw passes through the plug and is firmly clamped in the material.

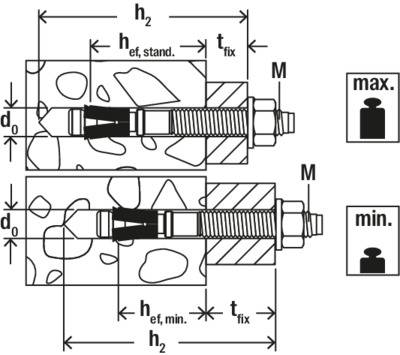

Diagram shows two fixing methods with dimensions for bolt anchors in concrete. Top: Standard depth. Bottom: Minimal embedment depth. Indicators for max./min. weight load on the right.

1/25

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

19 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 5.03 / piece)

€ 5.03

plus VAT.

Report legal concerns

Highlights & Details

Fischer FAZ II 10/10 K NV pin anchor

With split clip for maximum load carrying capacity: This means fewer attachment points and smaller anchor plates are needed. This saves time and money.
Easy to mount: Few hammer strokes and minimum slip. This saves time and power.
Maximum safety in tunnels and swimming pools.
General design approval for anchoring in reinforced concrete for the fischer bolt anchors FAZ II, FAZ II R and FAZ II LCR (diameter M6 - M24).

Technical specifications

(Ø): 10 mm

Product type: Cavity fixing

Material: Steel

Length: 53 mm

Screw diameter: 10 mm

Dim: (Ø x L) 10 mm x 53 mm

Suitable for: Concrete
Flintlime bricks

Content: 1 Set

Outside Ø: 10 mm

Material properties: zinc galvanized

Documents & Downloads

Datasheet

Datasheet 3065914 Fischer 090920 FAZ II 10/10 K NV Cavity fixing 1 Set

User & Safety Instructions

User & Safety Instructions 3065914 Fischer 090920 FAZ II 10/10 K NV Cavity fixing 1 Set

Information

Information 3065914 Fischer 090920 FAZ II 10/10 K NV Cavity fixing 1 Set

Description

The Fischer FAZ II pin anchor is recommended for mounting heavy objects in concrete. With the proven expanding clip the steel dowel meets highest requirements. The split clip tightens up against the drilled hole wall when the nut is tightened and guarantees a powerful mounting. The steel plug can be easily installed: Hit with a hammer and then tighten with a torque wrench - done. The bolt anchor made of electrogalvanized steel is particularly flexible to use, because it can be used to fix a wide range of objects indoors such as TV consoles, stair railings or cable trays.
