Name: Fischer 562212 DuoXpand Plug (long) 120 mm 10 mm 10 pc(s)
Brand: Fischer
SKU: 3835324
Availability: InStock

A syringe filled with red and black striped fluid, partially emptying into a transparent barrel, shown horizontally on a white background.

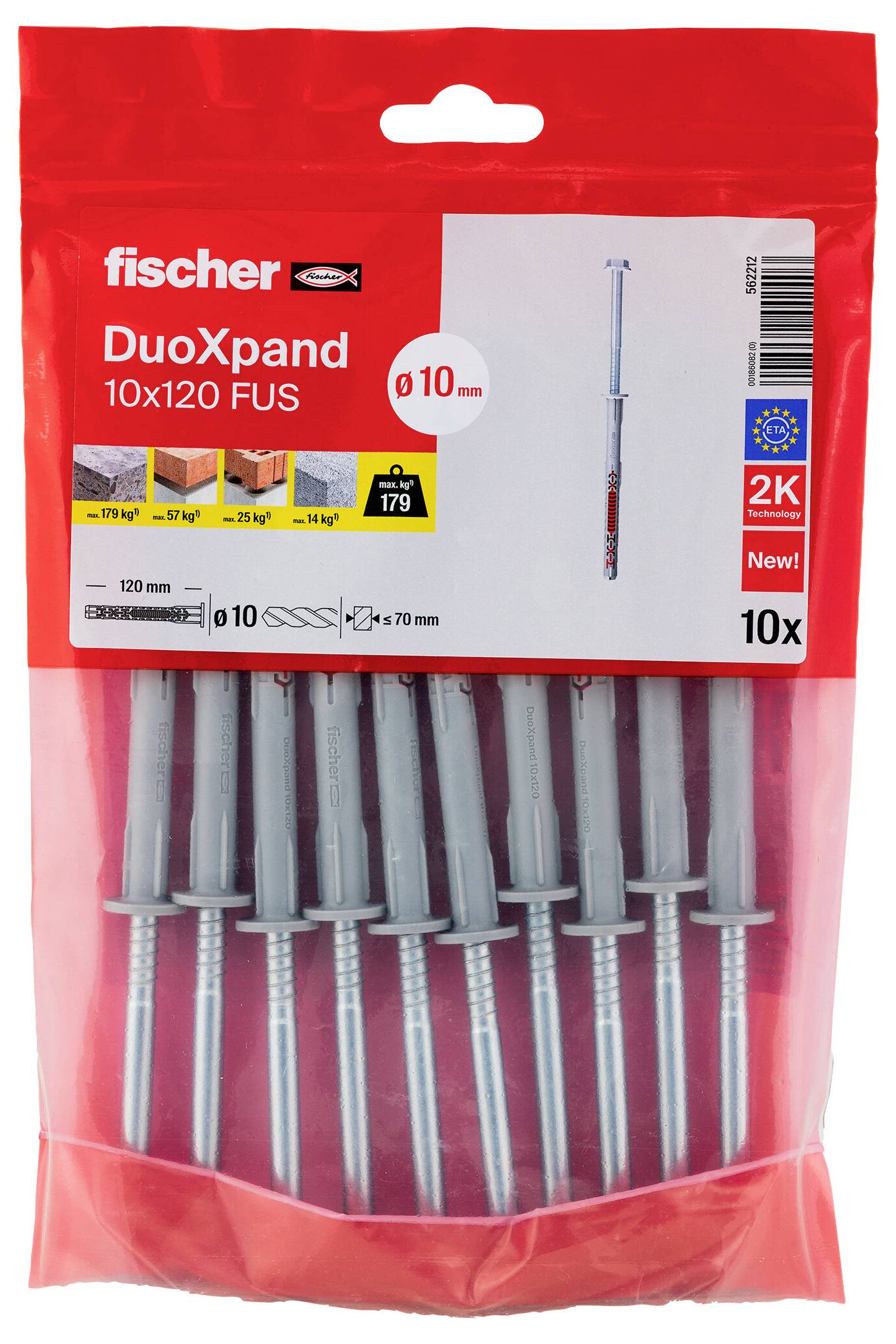

Package of fischer DuoXpand 10x120 FUS anchors, 10-pack, for 10 mm holes and heavy loads<br>

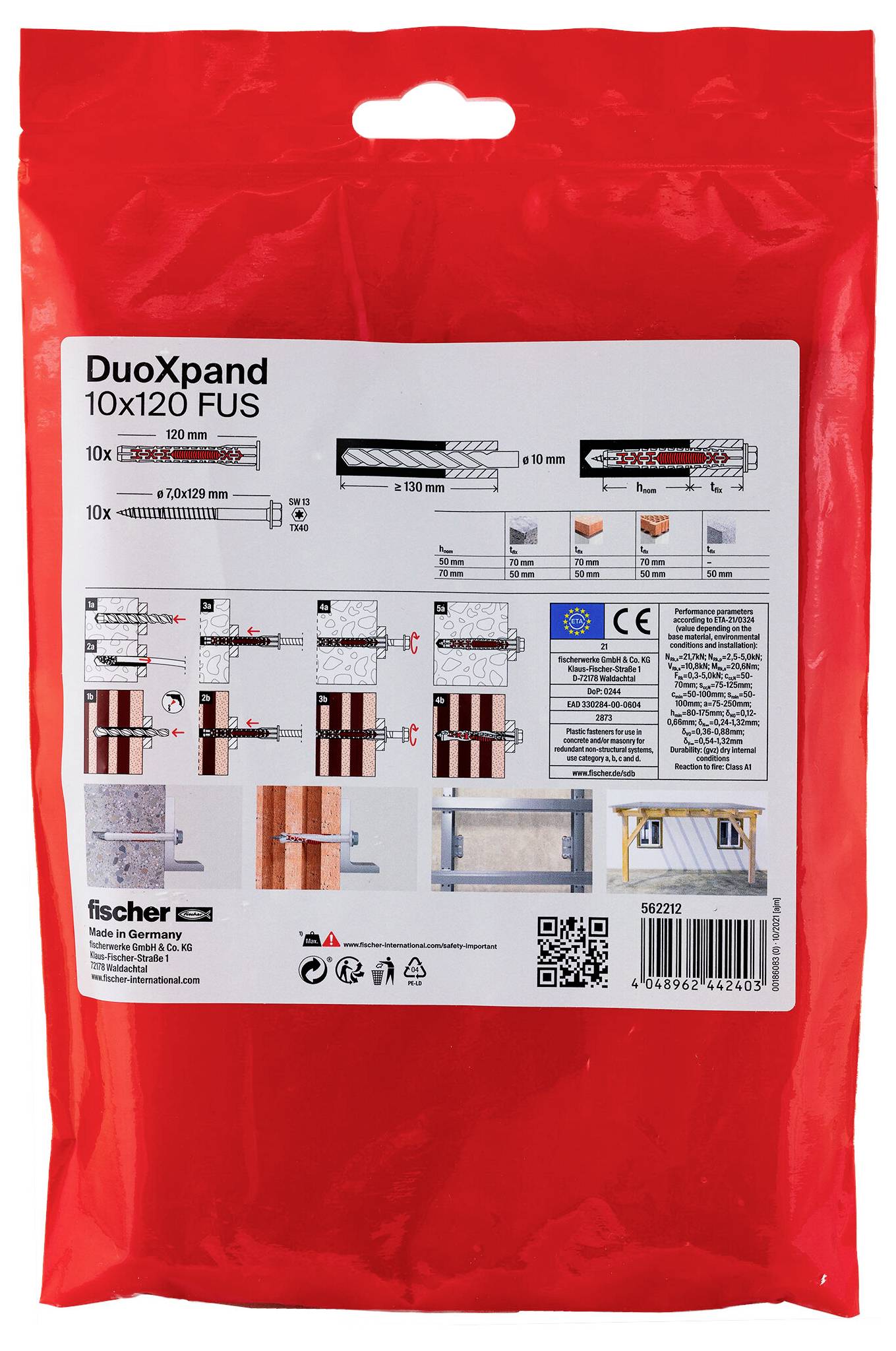

Red Fischer DuoXpand 10x120 FUS anchor pack with product illustrations, installation diagrams, and specifications on the front label.

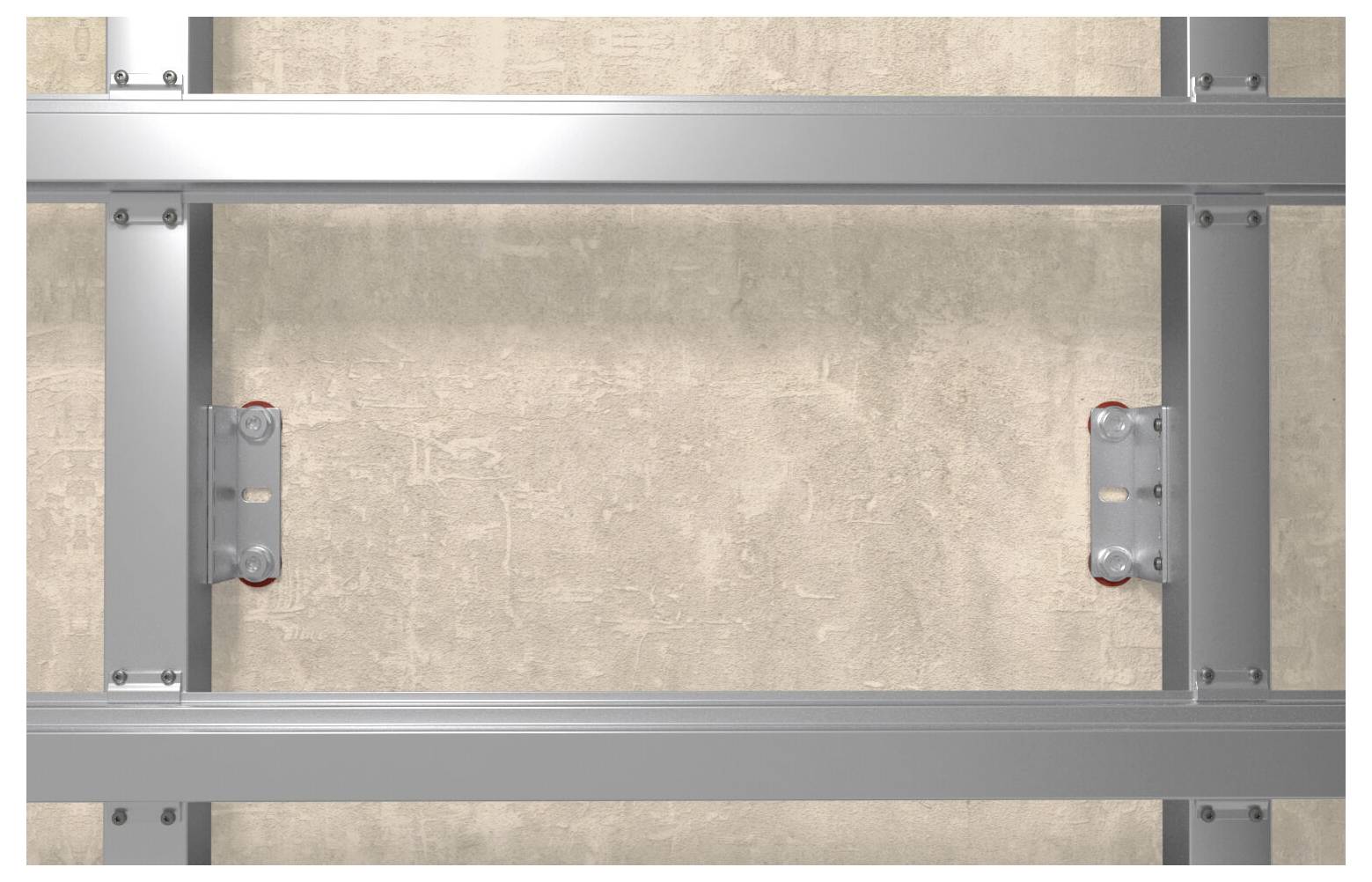

Metal wall framing rails and vertical studs mounted over a beige wall surface, showing structural support installation.

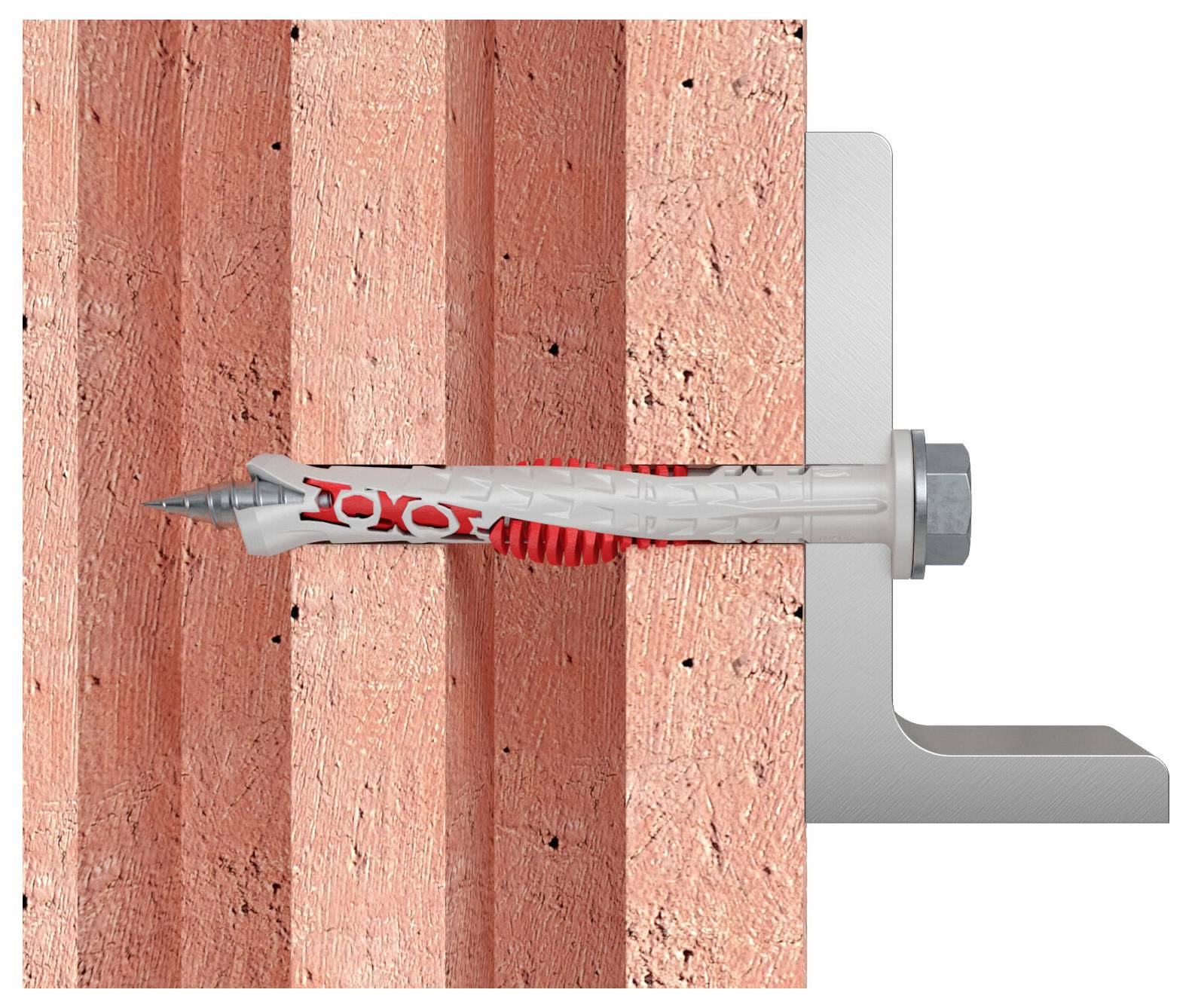

Cross-section of a wall plug anchor screwed into a masonry wall, showing how the fastener expands inside the hole to hold a bracket.<br>

1/5

Fast track dispatch on Tue 27 Oct

8 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 18.99 / piece)

€ 18.99

incl. VAT

Only 8 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer long-shaft anchor bolt DuXpand 10 x 120 FUS hex screw with U-disc

Clever combination of design and material for gentle bites on the building material
Expanding element with two anchoring depths for flexible use
Approved multiple mounting of non-load-bearing systems in concrete and masonry
Lateral ribs prevent rotation in the bore hole for comfortable mounting
Pre-assembled safety screw with hex head and molded washer

Technical specifications

Drive: TX40/SW 13

(Ø): 10 mm

Product type: Plug (long)

Length: 120 mm

Dim: (Ø x L) 10 mm x 120 mm

Content: 10 pc(s)

Quantity per pack: 10 Stück(e)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3835324 Fischer 562212 DuoXpand Plug (long) 120 mm 10 mm 10 pc(s)

Conformity certificate

Conformity certificate 3835324 Fischer 562212 DuoXpand Plug (long) 120 mm 10 mm 10 pc(s)

Description

The Fischer DuXpand long-shaft anchor bolt with two anchorage depths is approved with the Fischer hexagonal safety screw for multi-fixing of non-load systems in concrete, masonry and porous concrete. The plug expands optimally and saves material in the relevant building material due to its special shear geometry and the material combination. The range includes diameters from 8 and 10 and dowel lengths up to 230 mm. The DuXpand with the hexagonal screw and molded washer is especially suitable for fixing metal constructions.

This text is machine translated.
