Name: Flex ALC 3/1-G/R Laser range finder incl. cross line laser 70
Brand: Flex
SKU: 3346115
Availability: BackOrder

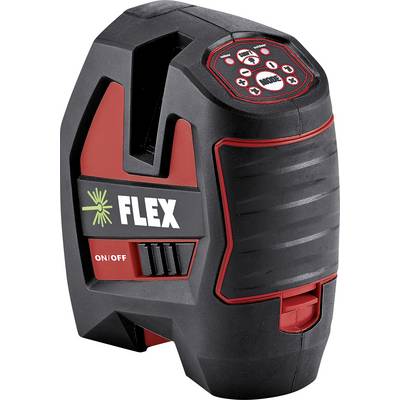

A red and black laser distance measurer by FLEX with an on/off switch and symbols on the front for different modes.

A red and black laser spirit level with 'FLEX' inscription and an on/off switch, for precise alignment.

A man stands in a bright room with metal frames and plasterboard walls, holding a tool. The room has a large window and an incomplete wall structure.

A laser levelling device is attached to a metal structure and displays green lines on the wall for precise alignment during construction work.

Electronic device projects green laser level onto wall in a room with metal framework and insulation to support construction work.

A man kneels in an empty room and adjusts a laser measuring device on a tripod. Green laser lines are visible.

1/6

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 329.00 / piece)

€ 329.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Self adjusting cross line-laser with receiver mode

Reading range 20 - 70
Accuracy ± 0.3

Technical specifications

Number of lines horizontal: 1 pieces
Number of vertical lines: 2 pieces
Visible area lines horizontal: 110 °
Visible area vertical lines: 110 °
Soldering function: Yes
Max. Working range 20 m
Max. Working range with receiver: 70 m
Accuracy 0.3 / solder 0.6 mm
Self-leveling range 4°
Operating time max. 10 h
Temperature range -5 to +50 oC
Protection class IP54
Power supply: Integrated battery

Product type: Laser range finder

Min. reading range: 20

Max. reading range: 70

Accuracy ±: 0.3

Units of measurement: m

Functions: Length measurement

Weight: 360 g

Weight, information: incl. rechargeable battery

Laser category: 2

Dim: (L x W x H) 152 x 88 x 130 mm

Width: 88 mm

Height: 130 mm

Length: 152 mm

Features: incl. cross line laser

Type: ALC 3/1-G/R

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3346115 Flex ALC 3/1-G/R Laser range finder incl. cross line laser 70

Description

With one horizontal and two vertical Laser lines in 90° angle plus Lot (red Laser line), individually switchable Lot function Specially anti-glare glasses provide for clean and high-precision laser lines Green laser diode The green line image is clearly clearer in the display and even under poor light conditions still well visible Expands the range of 50 meters, with receiver up to 70 meters Self-leveling Optical warning signal with exceeding the self-leveling range Self-leveling Simple operation Transport-safety Integrated Li-polymer battery 1/4" Thread for stand Ideal for aligning the pedestal
