FPMA-VESA400
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 4 Piece(s) available
FPMA-VESA400
Highlights & Details
- Adapter plate for the enlargement of the VESA interface.
Technical specifications
- Screen size compatibility: "558.8 - 1320.8 mm (22 - 52"")"

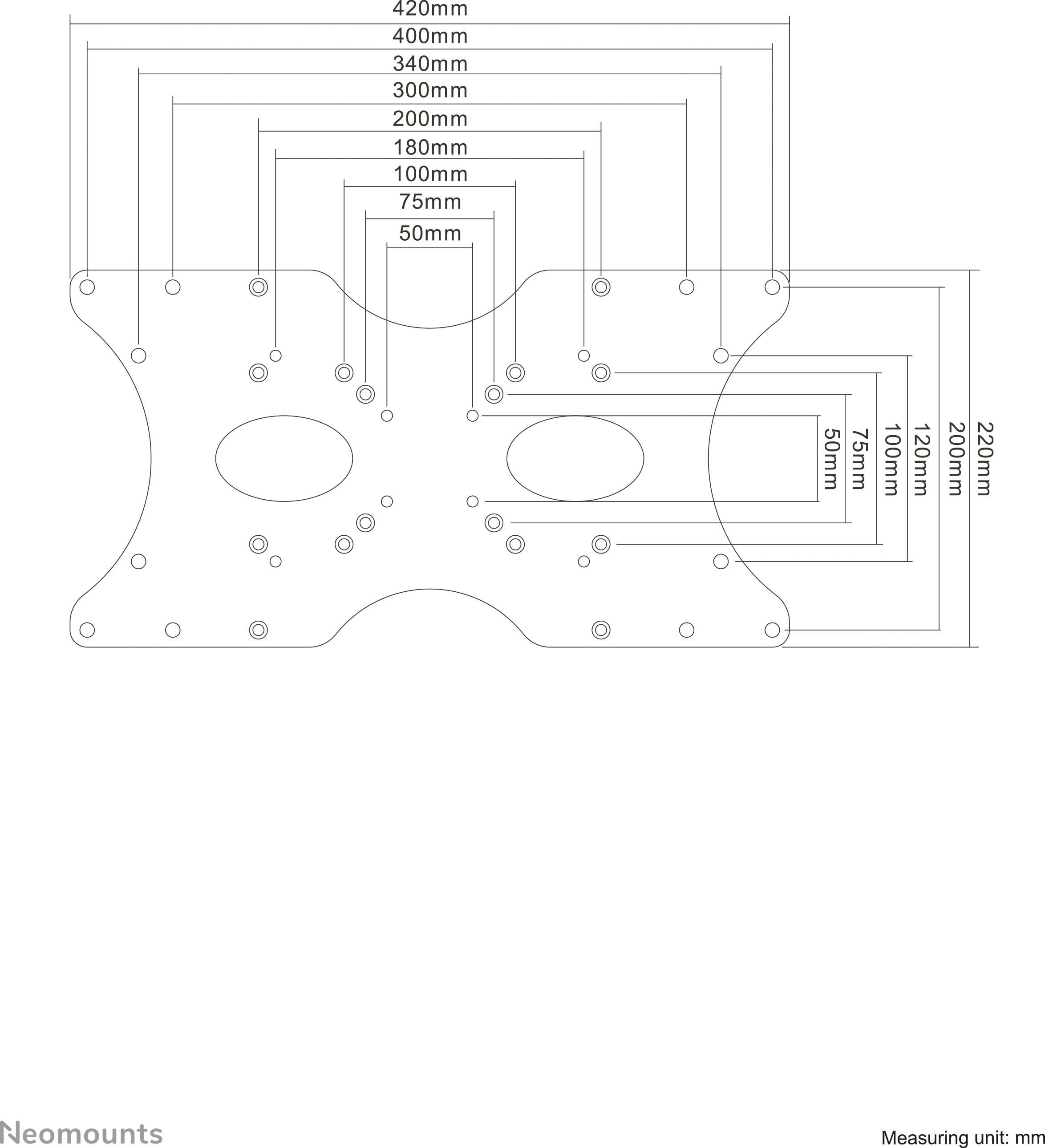

- VESA mounting interfaces compatibility: 50 x 50, 75 x 75, 100 x 100, 120 x 120, 200 x 100, 200 x 200, 400 x 200 mm
- Maximum weight (capacity): 35 kg
- Colour of product: Silver
- Product type
VESA adapter
- Compatible with (series)
Universal
- Factory colour
Silver
- Max. load capacity
35 kg
- Weight
1.2 kg
- Width
22 cm
- Height
42 cm
- Depth
2 cm
- Dim
(W x H x D) 22 x 42 x 2 cm
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1300651 FPMA-VESA400
User & Safety Instructions
User & Safety Instructions 1300651 FPMA-VESA400
Warranty Terms
Warranty Terms 1300651 FPMA-VESA400
Description
The NewStar VESA adapter, model FPMA-VESA400 allows a VESA mount with 50x50, 75x75, 100x100 and 200x100 mm interface to be used with displays with VESA hole patterns of 200x200mm, 400x200 and 120x180 mm (JVC holepattern). Ideal when flat screen needs different VESA pattern to select wall-, desk- or ceiling mount. NewStar FPMA-VESA400 is suitable for screens up to 52" (130 cm). The weight capacity of this product is 35 kg each screen. Depth of this adapter is 3 millimetres only. The adapter is suitable for screens that meet VESA hole pattern 200x200, 400x200 and 120x180 mm (JVC holepattern). Different hole patterns can be covered using NewStar VESA adapter plates. All installation material is included with the product.
