Name: Gedore 7471-01 1521977 Torque wrench Calibrated to (DAkkS standards) For socket bits 520 - 1000 Nm
Brand: Gedore
SKU: 1908457
Availability: BackOrder

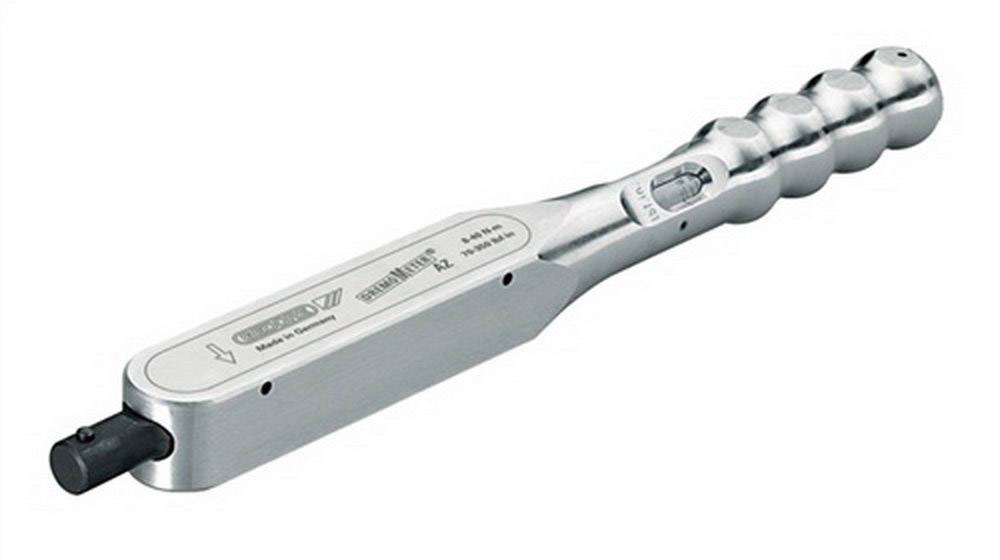

Metal torque wrench with knurled grip, suitable for precise screw tightening in workshops and industrial applications.

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,765.00 / piece)

€ 1,765.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

7471-01 - GEDORE - Torque wrench DREMOMETER DXZ A+S 28Z 520-1000 Nm
Technical advantage/function:
Locking and securing (A+S) prevents accidental or manipulated adjustment, thus more process safety
for the user classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4%) is easily exceeded for your safety
, but robust (since housing made from one piece of aluminum) and insensitive, very workshop-friendly
depending on the tool use can be both forward (e.g. Socket wrench) or to the side (e.g. Change over ratchet and socket wrench insert),
operation only at the handle center - do not use an extension tube, otherwise value shifts may occur (except for DXZ model - here the DREMMETER was calibrated and adjusted with the extension tube.)
Actuation only with push-on tools with a uniform pitch - otherwise, value shifts may occur. Note the stitch dimension on the certificate. Only use GEDORE Original accessories
Large tool holder cross-section of the pin transfers the greatest torques
extremely low wear through reduction of the leverage mechanism
Forged lever chain from the company's own quality forge
highest precision even in heavy continuous use
Easy operation - fast and safe torque tightening
Pleasant adjustment through shapely, Non-detachable adjustment knob at the end of the handle
with certificate according to DIN EN ISO 6789,
traceable to the national standard set by the company DAkkS laboratory for the standard production, wherever the same value must be attracted
If the factory-set fixed setting is desired, please specify N
m value when ordering (price on request)

Product type: Torque wrench

Features: For socket bits

Torque (min.): 520 Nm

Torque (max.): 1000 Nm

Trigger accuracy: 3 %

Graduation: 10 Nm

Length: 1319.00 mm

DIN standard: DIN EN ISO 6789-2:2017

Width: 45 mm

: DAkkS standards

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1908457 Gedore 7471-01 1521977 Torque wrench Calibrated to (DAkkS standards) For socket bits 520 - 1000 Nm

Information

Information 1908457 Gedore 7471-01 1521977 Torque wrench Calibrated to (DAkkS standards) For socket bits 520 - 1000 Nm

Features

Technical advantage/function:
Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
Large drive cross-section transfers maximum torques
Extremely low wear attributable to reduced forces in the lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory pre-setting is desired (price on request)

Description

Features

Technical advantage/function:
Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
Large drive cross-section transfers maximum torques
Extremely low wear attributable to reduced forces in the lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory pre-setting is desired (price on request)
