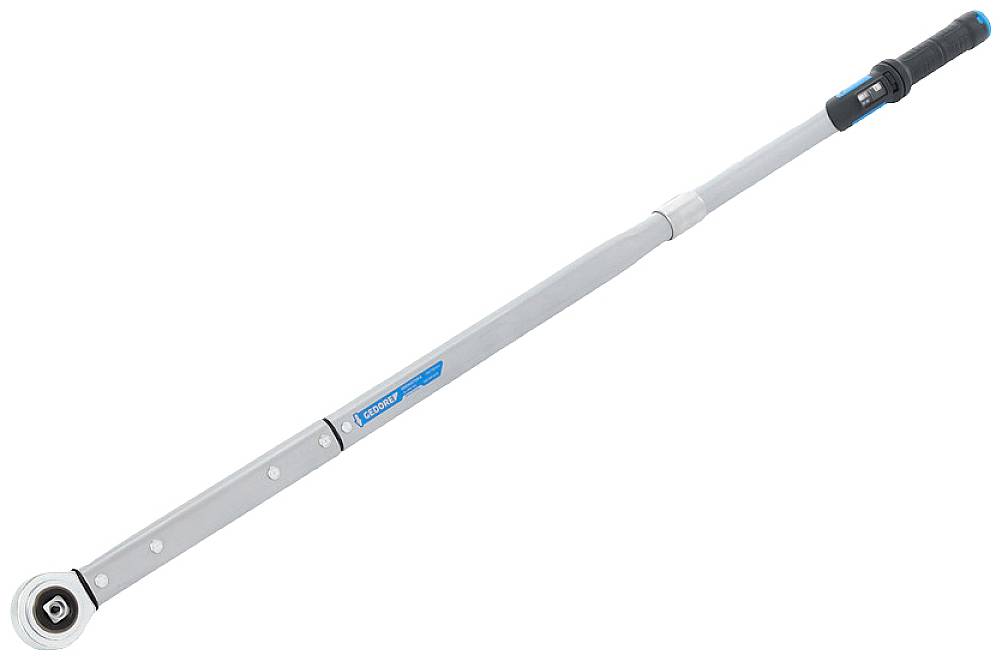

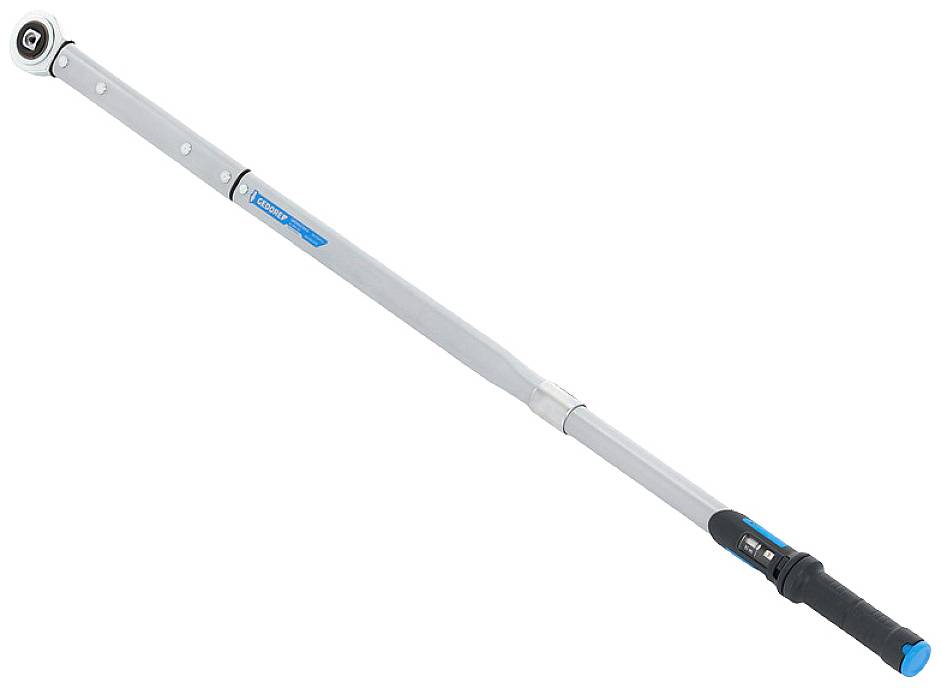

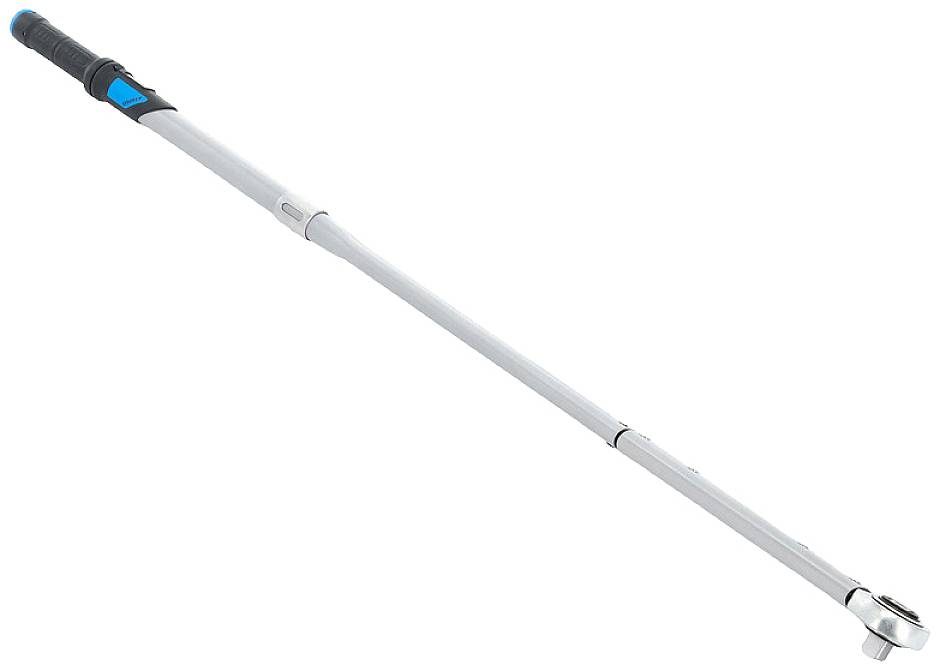

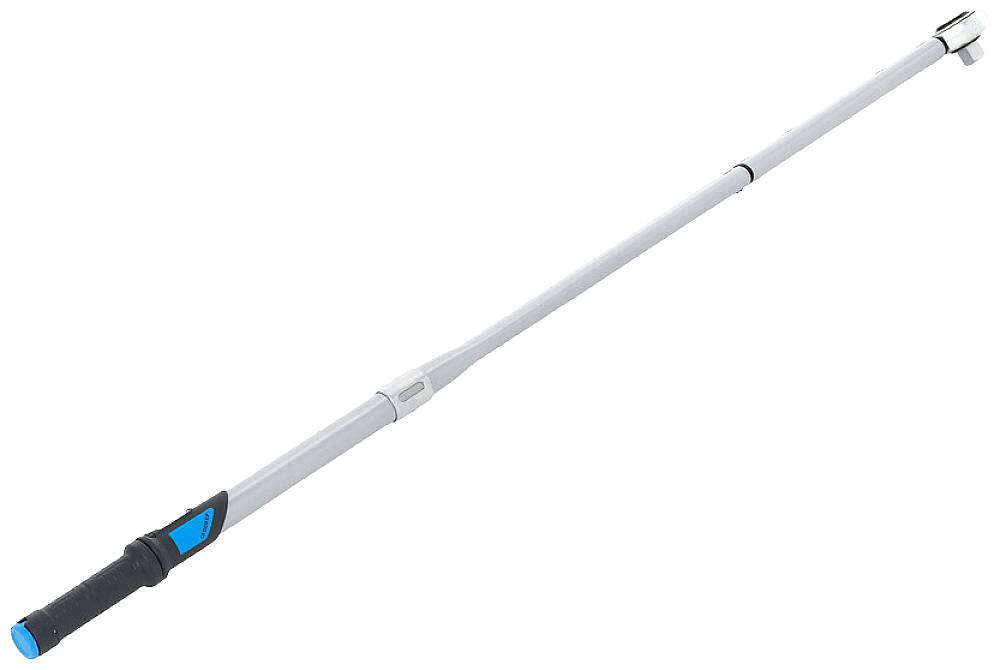

Name: Gedore DMK 750 2641283 Torque wrench 3/4" (20 mm) 150 - 750 Nm
Brand: Gedore
SKU: 1908336
Availability: BackOrder

1/5

EAN:

Part number:

Item no:

Dispatches on Thu 17 Dec

Sales and shipping:

Number

Piece(s)

Total (€ 925.00 / piece)

€ 925.00

incl. VAT

14-day return policy included

Technical specifications

DMK 750 - GEDORE - torque wrench DREMASTER K 3/4", 150-750 Nm
controlled screw suit in the most common range of 150-750 N
m / 110-550 lbf
ft (guide value screws M7-10.9 to M24-8.8, M30-5.6)
Adjustable, Trigger and robust pipe torque wrench with integrated ratchet with square drive for industry and trade
classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4%) is exceeded for your safety. For the controlled right and left suit. 3/4" through-square drive with pin fuse. Robust, semi-gloss chrome-plated steel tube construction, with chrome-plated ratchet and high-quality plastic parts
ergonomically shaped, 2-component plastic handle with calibration aid
Switching between main scale N
m and secondary scale lbf
ft, To avoid reading errors when setting the desired torque
with micrometer scale for N
m main scale for adjusting scale wiping values
Spring system generates a sensitive and audible trigger signal
ergonomic system for torque adjustment with indicator symbol
Possibility of quick adjustment by angle screwdriver, Not included in the delivery
secured adjustment system
for adjustment patent pending
origin system generates a clear sensitivity and audible trigger signal
ergonomic system for torque adjustment with indicator symbol
Possibility of quick adjustment by angle screwdriver,
not included in the delivery secured adjustment system

Documents & Downloads

User & Safety Instructions 1908336 Gedore DMK 750 2641283 Torque wrench 3/4" (20 mm) 150 - 750 Nm

Information 1908336 Gedore DMK 750 2641283 Torque wrench 3/4" (20 mm) 150 - 750 Nm

Use:
Controlled screw tightening in the most common range of 20 - 850 N
m / 15 - 630 lbf
ft (guide for screws M7-10.9 to M24-8.8, M30-5.6)
Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
For controlled bi-directional tightening
Models DMK: 1/2" mushroom head interchangeable square with push-button releasing and a ball-locking mechanism. From Model No. DMK 400 with 3/4" push-through square and a pin-locking mechanism
Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts
Ergonomically shaped plastic grip with calibration aid
Change-over between N
m main scale and lbf
ft ancillary scale to avoid reading errors when setting the torque wanted
With micrometre scale for main N
m scale for setting interim values
Release system triggers a tactile and audible signal
Ergonomic system for torque adjustment with reference symbol
Provision for rapid setting with hexagon allen key, not included
Secured adjusting/setting system

Use:
Controlled screw tightening in the most common range of 20 - 850 N
m / 15 - 630 lbf
ft (guide for screws M7-10.9 to M24-8.8, M30-5.6)
Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
For controlled bi-directional tightening
Models DMK: 1/2" mushroom head interchangeable square with push-button releasing and a ball-locking mechanism. From Model No. DMK 400 with 3/4" push-through square and a pin-locking mechanism
Sturdy, varnished tubular steel construction, with zinc-plated ratchet head and top-grade plastic parts
Ergonomically shaped plastic grip with calibration aid
Change-over between N
m main scale and lbf
ft ancillary scale to avoid reading errors when setting the torque wanted
With micrometre scale for main N
m scale for setting interim values
Release system triggers a tactile and audible signal
Ergonomic system for torque adjustment with reference symbol
Provision for rapid setting with hexagon allen key, not included
Secured adjusting/setting system
