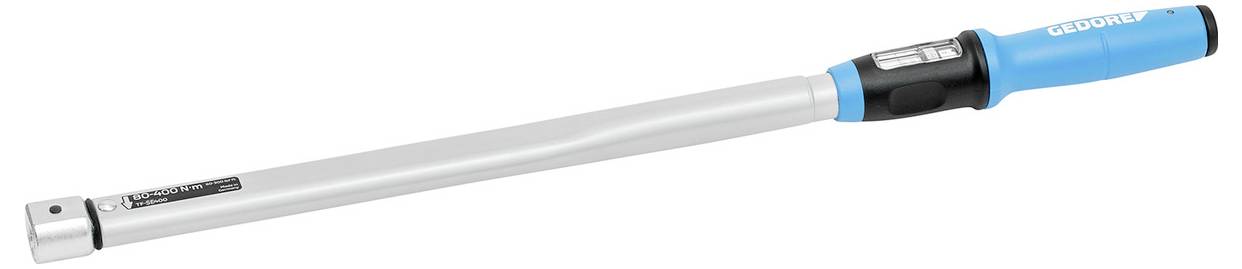

Gedore TF-SE400 3278565 Torque wrench 14 x 18 mm socket square 80 - 400 Nm
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 315.13 / piece)
€
Technical specifications
- Drive type/drive: Square bracket
- Tightening direction: Left and right
- Trigger mechanism: Short-travel release
- Calibration length 589.3 mm
- Material: Steel tube construction with high-quality plastic parts
- Fuse: Catch locking
- Scale type: dual
- Stitch size 25 mm
- Downforce
14 x 18 mm socket square
- Torque (min.)
80 Nm
- Torque (max.)
400 Nm
- Trigger accuracy
0.03 %
- Graduation
10 Nm
- Length
657 mm
- DIN standard
DIN EN ISO 6789
- Weight
1.62 kg
- Width
44 mm
- Height
44 mm
- Product type
Torque wrench
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2451241 Gedore TF-SE400 3278565 Torque wrench 14 x 18 mm socket square 80 - 400 Nm
Description
Application:
Controlled screw suit in the range of 80 - 400 N.·m / 60 -300 lbf·ft
Adjustable, triggering and robust pipe torque wrench with square holder for industry and trade
Construction:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3% and thus more precise than the +/- 4% required in the standard
Incl. Traceable test certificate (DIN EN ISO 6789-2:2017)
For the controlled right and left suit (insert tool to change direction)
Square holder 14x18 mm including ejection aid
Robust, matt powder-coated steel tube construction with high-quality plastic parts
New ergonomic handle, shaped according to the natural grip of the hand
Clearly recognizable and tangible hand centering aid as well as calibration aid in the middle of the grip

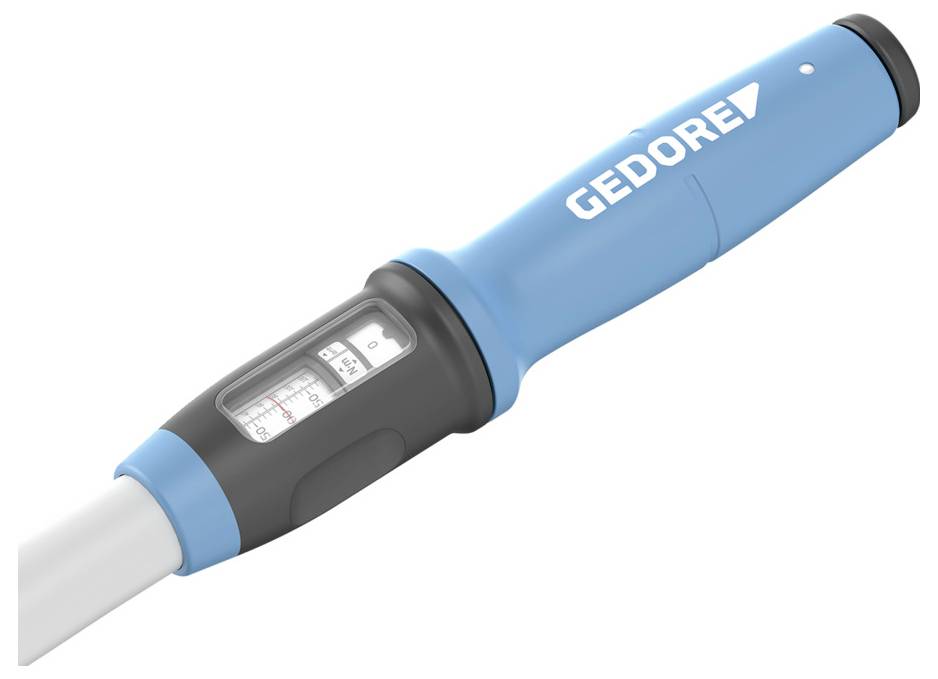

Double scale N·m / lbf·ft with vernier (N.·m), enlarged viewing window protects against abrasion and contamination
With nonius scale for N.·m main scale for setting scale values; lbf·ft Setting only via main scale
Vertical alignment of the scale, torque setting suitable for left- right-handed people
Scale line positioned directly above the scale, prevents reading errors (parallax error)
Unit labeling integrated in scale frame and protected against abrasion via viewing window,
Precise bounce mechanism generates a clearly sensitive and audible trigger signal when the set torque value is reached
Incl. Roll-away safety device, prevents rolling away when the tool is placed
This text is machine translated.
