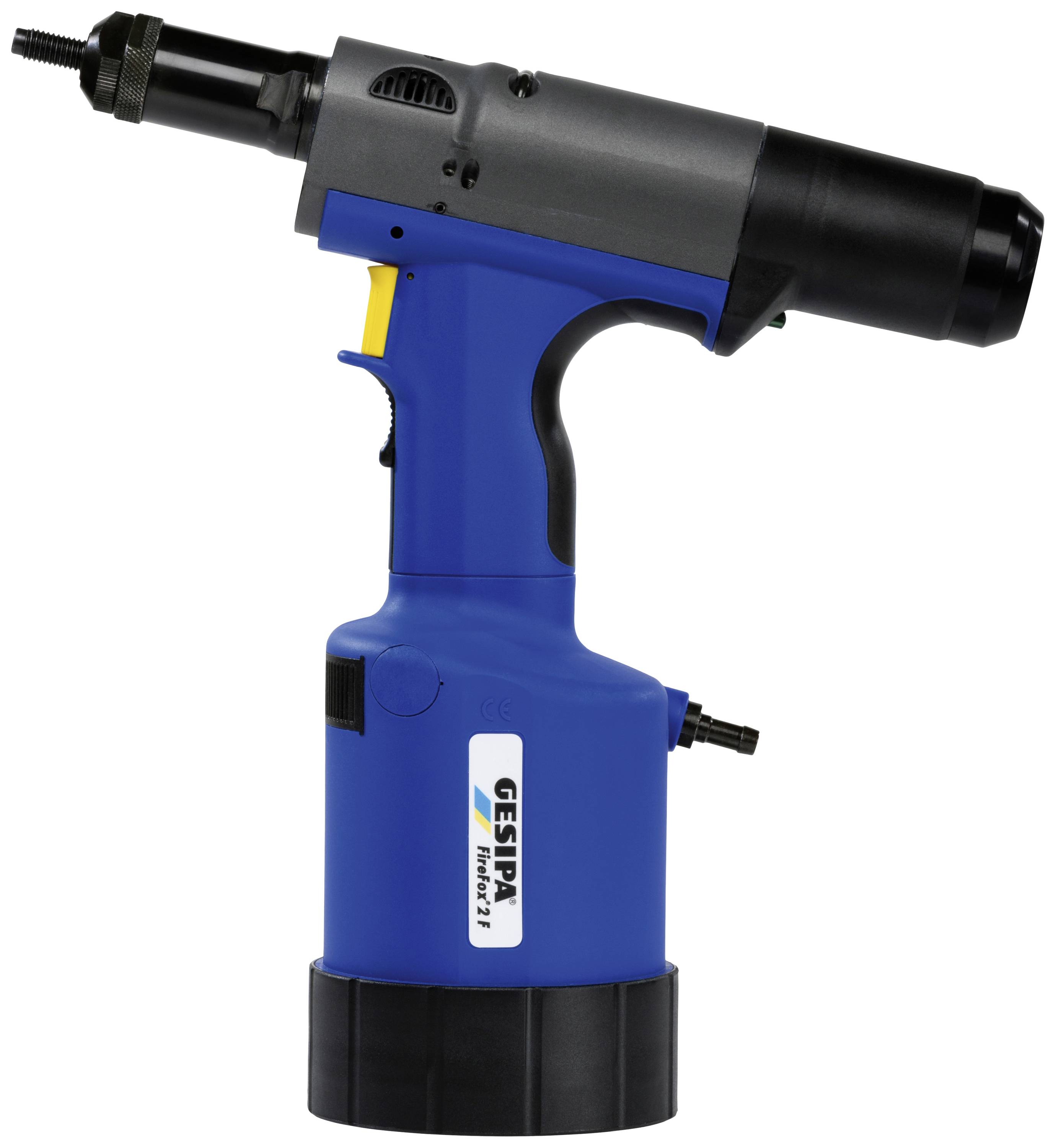

Gesipa 1451045 Hydraulic riveter 1 pc(s)

Firefox 2 F

The Firefox 2 F with pure setting of force sets standards in the installation of blind rivet nuts.
A constant setting of force is especially for blind rivet nut sizes with the same or varying
Length (e.g. M6 x 15.5 or M6 x 18), which are to be placed in alternating material thicknesses, is required and provided
Thus for protecting the material and the thread, secure anchoring of the blind rivet nut and high process safety.

Working range
Set blind rivet nuts of M3 to M10 of all materials as well as M12 in aluminum and steel.

Technical data
Weight: 2.4 kg.
Setting stroke max. 10 mm
Setting force, adjustable, max. 22 kN at 6 bar
Operating pressure 5-7 bar
Hose connection: 6 mm Ø (1/4’’)
Air consumption: Approx. 2 to 4 ltr. Per setting process (depending on nut size)

Advantage
Fast and precise pre-setting of the setting force
By color-coded adjustment ring

Included in the delivery
2 double wrench SW 24/27
4 threaded pins (M4, M5, M6 and M8)*
4 mouthpieces (M4, M5, M6 and M8)*
1 Hex screwdriver SW 4
1 refiller bottle with hydraulic oil 100 ml
1 oil-refiller tanks
Operating instructions with list of spare parts
Card with quick adjustment

Accessories
- Adapter* for the use of cylindrical screws with DIN EN ISO 4762 hexagon socket as threaded pin from M4 to M8
- Adapter for setting blind rivet screws, M4 to M8
- Mouthpieces and threaded thorns in Imperial or US dimensions
- Complete thread punch and mouthpiece sets

This text is machine translated.
