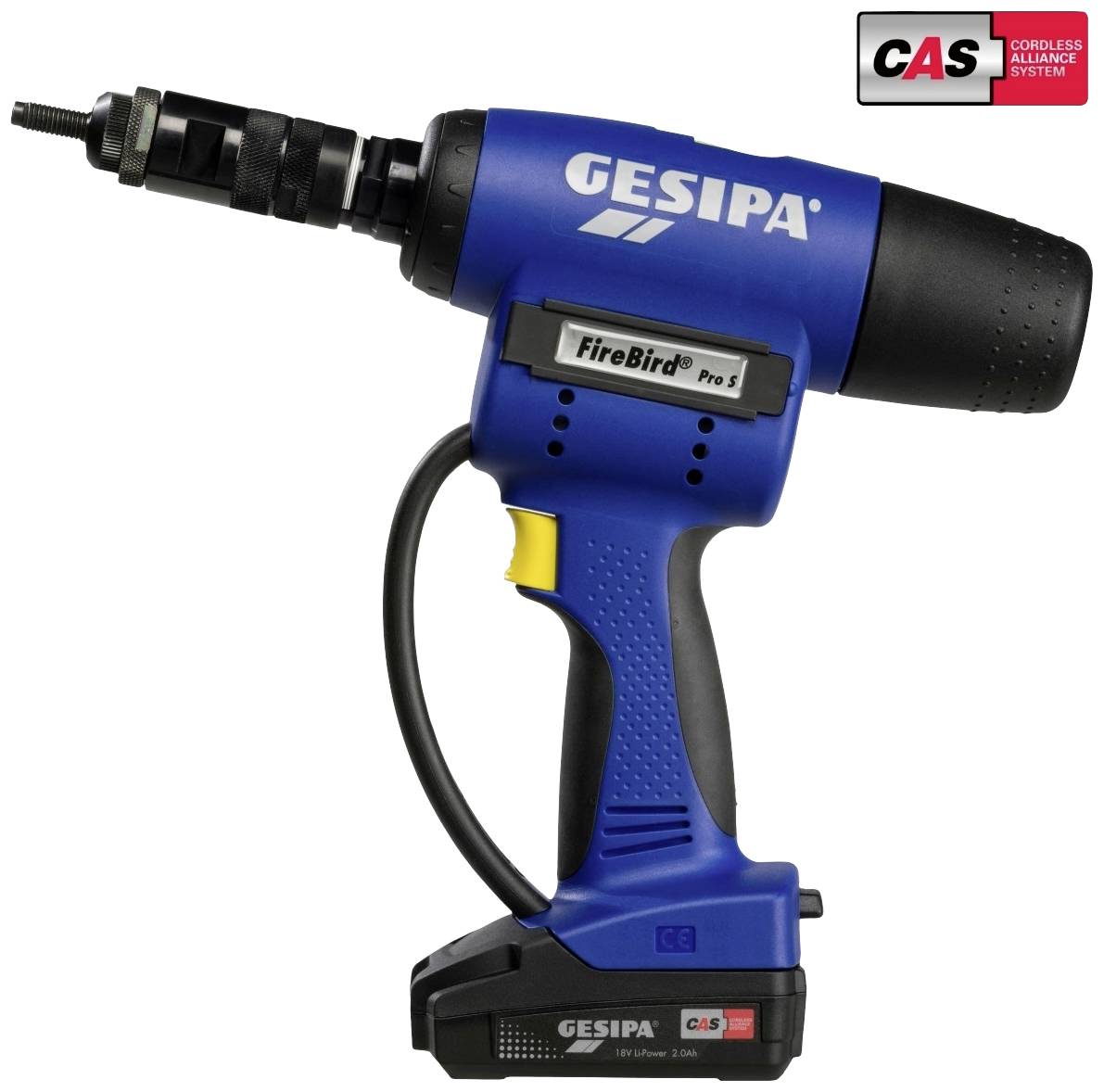

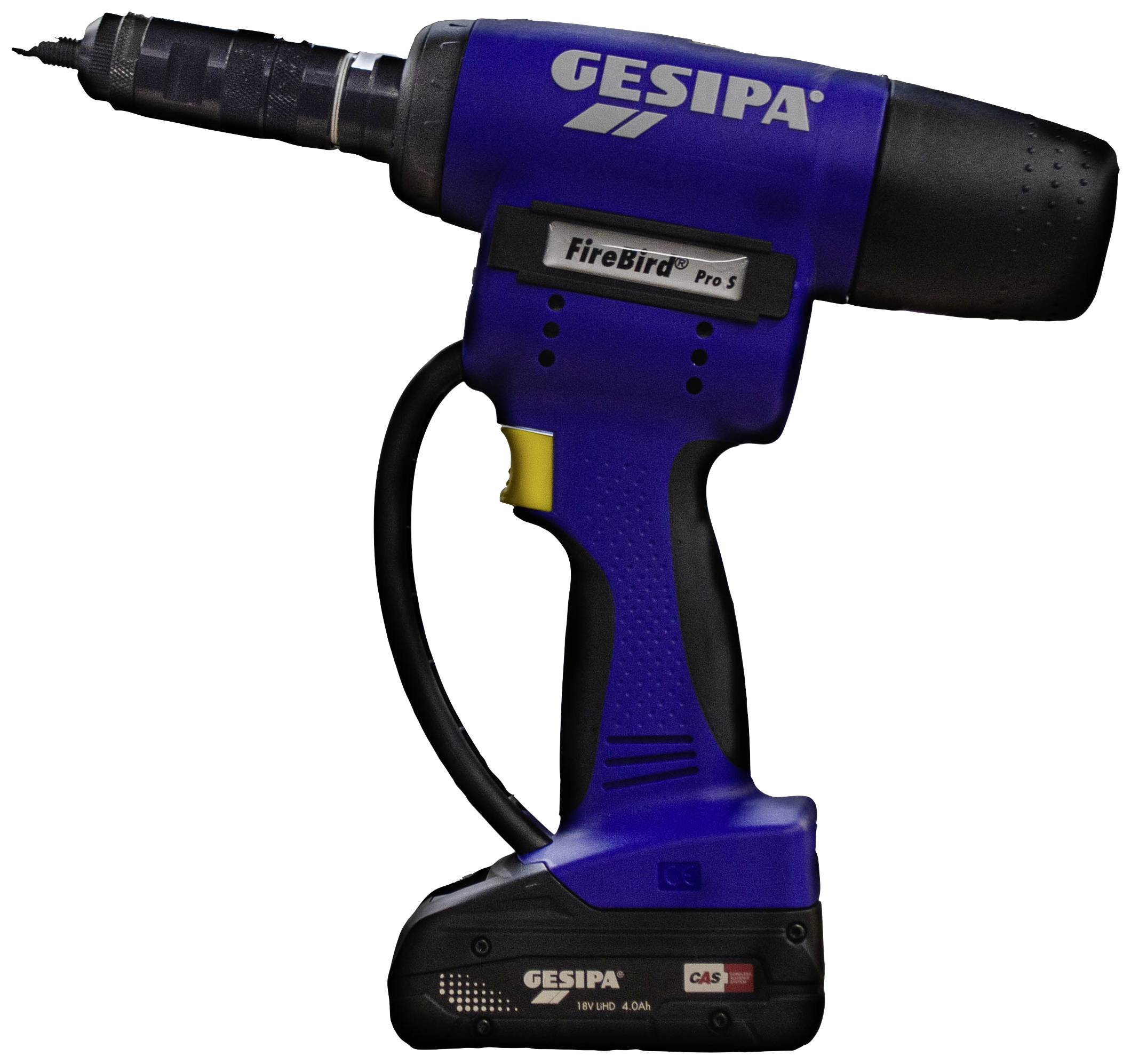

Gesipa 1679678 Cordless blind nut rivet gun 1 pc(s)

Firebird Pro S Gold Edition
The Firebird Pro with mechanical setting of setters

When do you use the setting of the setting lift?
If a blind rivet nut size with the same length is set at constant material thicknesses, work should be carried out with constant setting stroke. The setting stroke corresponds to the path that the thread mandrel performs during the setting process
Is drawn into the mouthpiece and in this way how far the blind rivet nut is compressed. In the setting of the setting stroke
This path can be mechanically set on the setting device.

Advantages of the setting of the setting of the setting lift
- The device control via set stroke setting guarantees a constant height of the blind rivet nut after setting, regardless of small scattering with nut or material
- Continuous adjustment of the setting stroke
- The setting stroke setting is preferred by experienced users and for large-scale series

Working range
Sets blind rivet nuts up to M10 aluminum, up to M8 steel and up to M6 stainless steel.

Technical data
Weight: 2.4 kg including Battery
Setting force 15,000 N
Drive: Brushless motor (BLDC)
Setting stroke 10.0 mm

Included in the delivery
Threaded pin and mouthpiece M6 (in working position)
Threaded pin and mouthpiece M8 and M10 (accessories)
1x Allen key
2x double wrench SW 24/27
1x double wrench size 27/30
Operating instructions + spare parts list

This text is machine translated.
