Gigahertz Solutions MK30 N/A analyser. electric smog measurement case
EAN:
Part number:
Item no:
Number
Total (€ 1,149.00 / piece)
€ 1,149.00
incl. VAT
14-day return policy included
Technical specifications
- Frequency range: (In accordance with the standard of building biology measurement technology) -2 dB, 5 Hz - 100 kHz, (includes GSM mobile radio, UMTS, DECT, Bluetooth®, radar and microwave oven) 3300 MHz/-3 dB, 800 - 2500 MHz
- Low frequency + high frequency
- AC field reading accuracy: ± (2% + 14 digits)
- Measurement accuracy power flux density: ± 6 dB
- Measurement accuracy magnetic flux density: ± (2% + 14 digits)
- Product type
HF EM radiation tester
- Display
LCD
- Frequency range
5 Hz - 100 kHz
3300 MHz
800 - 2500 MHz
- Reading type
Radiant flux
- Power flux density reading range
0.01 - 19990 µW/m²
- Magnetic flux density reading range
0.1 - 1999 nT
Manufacturer's standards (no certificate)
- Signal output
-
- Interfaces
Bluetooth®
- Power supply (details)
2 x 9 V PP3
- Max. frequency
100 kHz
2500 MHz
- Min. frequency
5 Hz
800 MHz
3300 MHz
- AC field reading range (max.)
1999 V/m
- AC field reading range (min.)
0.1 V/m
- Power flux density reading range (max.)
19990 µW/m²
- Power flux density reading range (min.)
0.01 µW/m²
- Magnetic flux density reading range (max.)
1999 nT
- Magnetic flux density reading range (min.)
0.1 nT
- Frequency response
5 Hz - 100 kHz, 2dB (in accordance with the standard of the ecological measuring technique) · 800 - 2500 MHz (3300 MHz/-3 dB), includes
GSM-mobile radio, UMTS, DECT, Bluetooth®, radar and microwave oven
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 100690 Gigahertz Solutions MK30 N/A analyser. electric smog measurement case
User & Safety Instructions 100690 Gigahertz Solutions MK30 N/A analyser. electric smog measurement case
Description
The devices of this measuring case unites the simple operation of the "layman devices" with additional possibilities of analysis possibilities of the professional devices. Thus, the HF38B possesses the measuring range, the peak Hold function and the antenna of the professional series. The ME3840B is equipped with the adjustable frequency filter for the distinction of rail and line current as well as its artificial harmonic content.

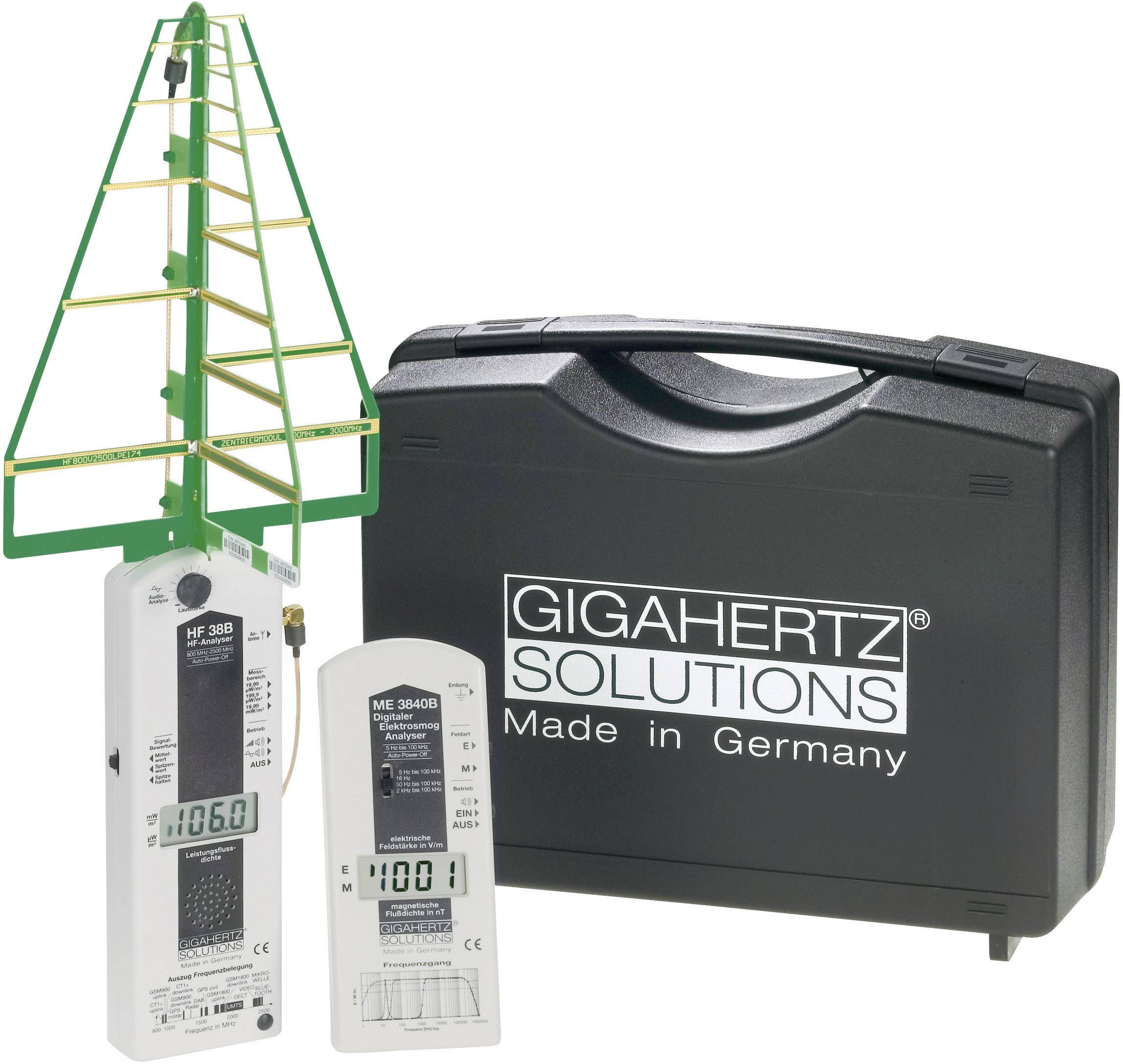

Scope of delivery
- HF-Analyser HF38B
- NF-Measuring device ME3840B
- Plastic case
- 2 batteries
- User manual.
