Name: Gigahertz Solutions NFA1000 LF EM radiation tester
Brand: Gigahertz Solutions
SKU: 100318
Availability: BackOrder

Portable measuring device in a yellow casing for analysing electromagnetic frequencies. Digital display shows '6.27'.

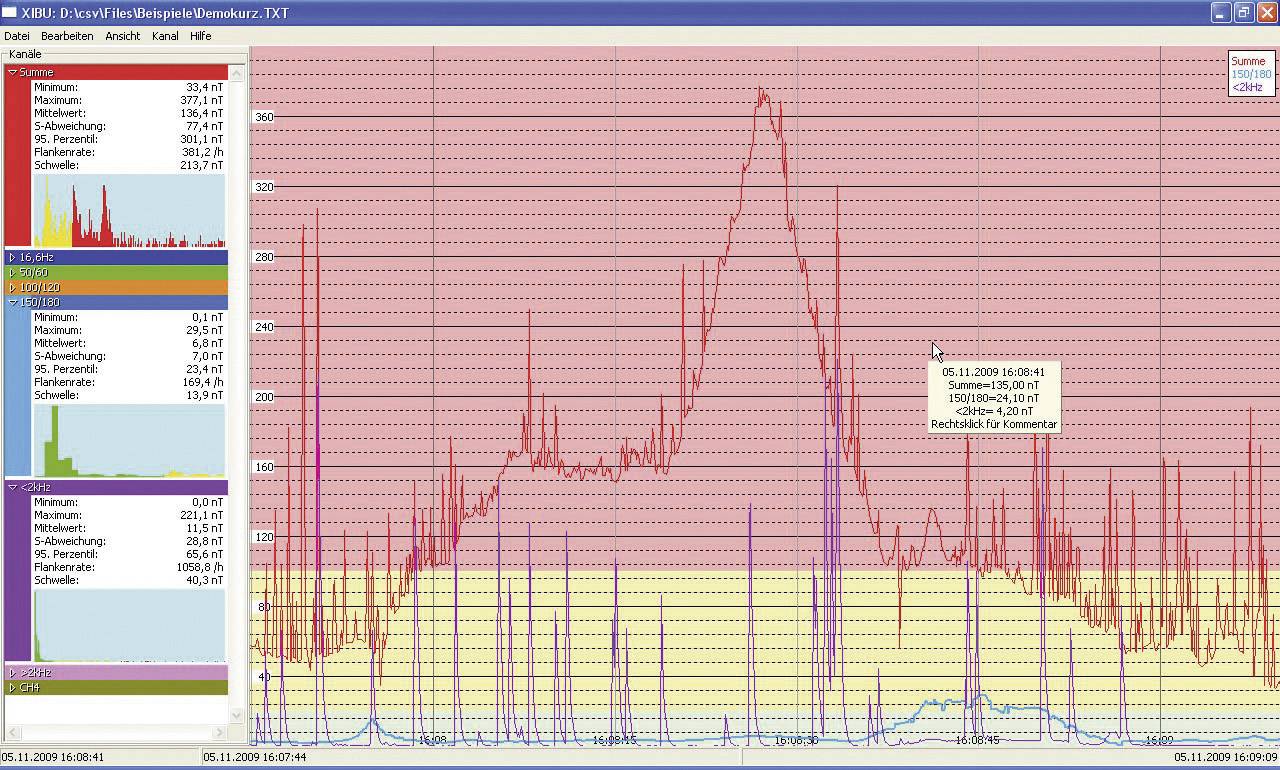

A graphical representation shows several lines depicting energy consumption over a specific period. On the left, there is a legend with various values.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,165.00 / piece)

€ 3,165.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

3D LF-Logger NFA 1000

Integrated Data logger
Potential-free E-Field measurement
FFT with LED display

Technical specifications

Frequency range: (Compensated, among other things modern switching power supplies, better than TCO guideline) 5 Hz - 1000 kHz
LF reading accuracy: 50/60 Hz: ± 5 %; 16 Hz - 30 kHz: ± 1 dB; 5 Hz - 1000 kHz: ± 2 dB; isotropy deviation: ± 1.5 dB; offset ± 5 digits
Display: 3.5 digit LCD

Product type: LF EM radiation tester

Display: LCD

Frequency range: 5 Hz -1000 kHz

Reading type: Radiant flux

Magnetic flux density reading range: 1 - 19990 nT

: Manufacturer's standards (no certificate)

Signal output: -

Interfaces: SD card

Power supply (details): Li-Ion-Akkupack

Length: 33 cm

Width: 27.5 cm

Height: 8.2 cm

Weight: 1.52 kg

Dim: (L x W x H) 33 x 27.5 x 8.2 cm

Max. frequency: 1000 kHz

Min. frequency: 5 Hz

AC field reading range (max.): 1999 V/m

AC field reading range (min.): 0.1 V/m

Magnetic flux density reading range (max.): 19990 nT

Magnetic flux density reading range (min.): 1 nT

Display (details): 4-digit LCD

Frequency response: 5 Hz -1000 kHz

Documents & Downloads

Datasheet

Datasheet 100318 Gigahertz Solutions NFA1000 LF EM radiation tester

User & Safety Instructions

User & Safety Instructions 100318 Gigahertz Solutions NFA1000 LF EM radiation tester

Description

The new benchmark in the Low frequency -measuring technique. The equipment offers a Logger function for the recording of the measured values during a longer period for the evaluation of the stress and strains. Various recording modes can be selected: 16.6 + 33.3 Hz, 50Hz., Adds straight lines or odd harmonic content, > 2 kHz, sum total. The data are stored on a SD card 1 GB. Spoken notes can be noted directly in the equipment. FFT is possible up to 30 kHz (logarithmically quantized).
