Name: Gossen Metrawatt Apollo 600+ Equipment tester, Equipment tester set, VDE tester, VDE tester kit VDE standard 0701-0702
Brand: Gossen Metrawatt
SKU: 3345909
Availability: BackOrder

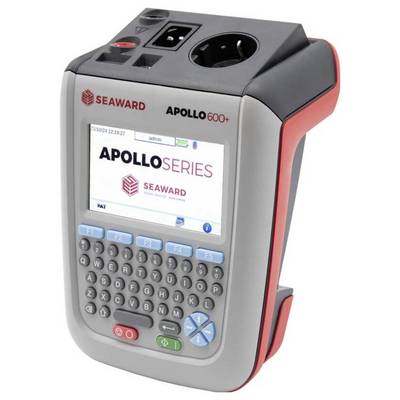

Portable test device with colour display and keyboard, model 'APOLLO600+', displays test information on the screen.

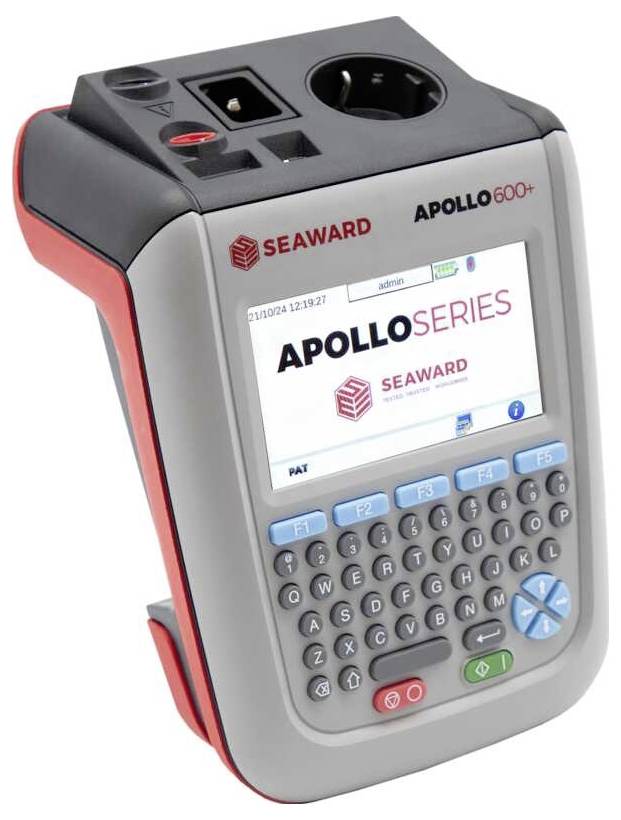

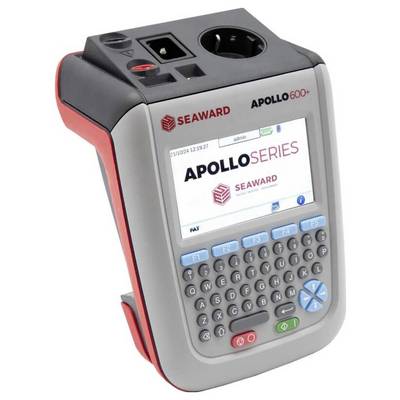

Gossen Metrawatt Apollo 600+ Equipment tester, Equipment tester set, VDE tester, VDE tester kit VDE standard 0701-0702-1

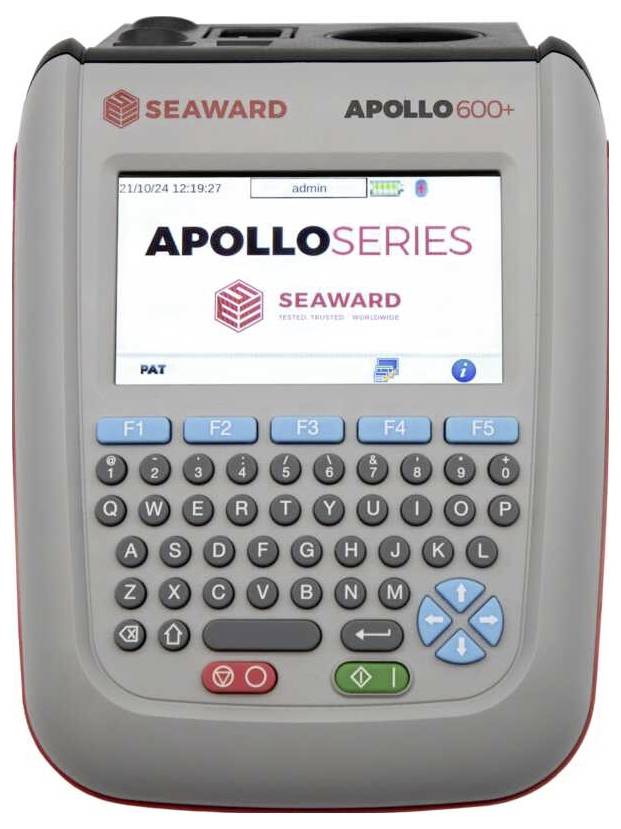

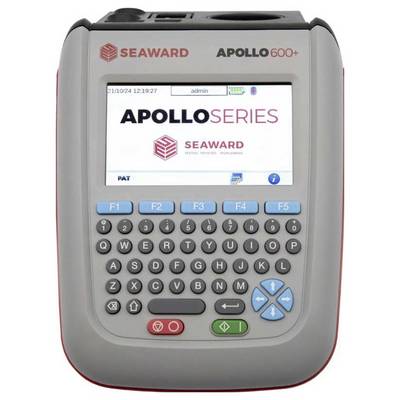

A portable electrical testing device with a keypad and display showing 'APOLLO SERIES'. Marked with a date and username.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 10 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,359.00 / piece)

€ 2,359.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Device tester for testing according to EN 50699 / VDE 0702

Colour graphics display
Built-in rechargeable battery (for passive testing and backup)
Built-in camera for documentation purposes
Customizable sequences for device testing (up to 100 sequences can be stored)
Bi-directional transfer of data using PATGuard3 Elite
2 Probe testing possible for permanently installed devices (RPE and RISO)
Integrated data storage for up to 50,000 objects

Technical specifications

Product type: Equipment tester

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Interfaces: 1x USB 1.1
1x USB host

Dim: (L x W x H) 230 x 150 x 100 mm

Weight: 1.5 kg

: IP40

Reading range (VDE): Touch voltage
Differential current
Leakage current
Insulation resistance
Electrical load
Continuity
RDC testing (AC, A)
Earth leakage current
Earth leakage resistance
Voltage

DIN standard: DIN VDE 0701 (EN 50678)
DIN VDE 0702 (EN 50699)
EN50678/50699

Display type: Digital

Width: 150 mm

Height: 100 mm

Length: 230 mm

Test procedure: automated
manual

Voltage supply: 230 V/AC
Rechargeable
Mains

Memory (space): 50000

Memory: Yes

Type: Apollo 600+

VDE standard: 0701-0702

Features: incl. clip terminal
incl. software

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3345909 Gossen Metrawatt Apollo 600+ Equipment tester, Equipment tester set, VDE tester, VDE tester kit VDE standard 0701-0702

User & Safety Instructions

User & Safety Instructions 3345909 Gossen Metrawatt Apollo 600+ Equipment tester, Equipment tester set, VDE tester, VDE tester kit VDE standard 0701-0702

Description

Apollo 600+ has an integrated camera for visual documentation purposes, a USB port for data transfer and a comprehensive range of test functions using user-configurable testing procedures for testing mobile equipment. Apollo 600+ therefore provides storage space for up to 50,000 test objects.

This text is machine translated.
