Name: Gossen Metrawatt PROFiTEST H+E EXPERT CHECK Teat lead adapter, VDE tester, Safety tester VDE standard 0122, 0105, 0100
Brand: Gossen Metrawatt
SKU: 3059411
Availability: InStock

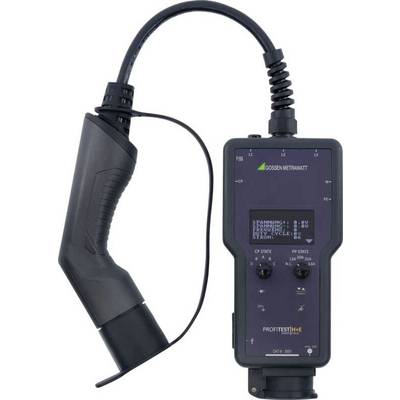

An electrical testing device with a cable and screen displays measurements and settings. It is designed for checking safety systems.

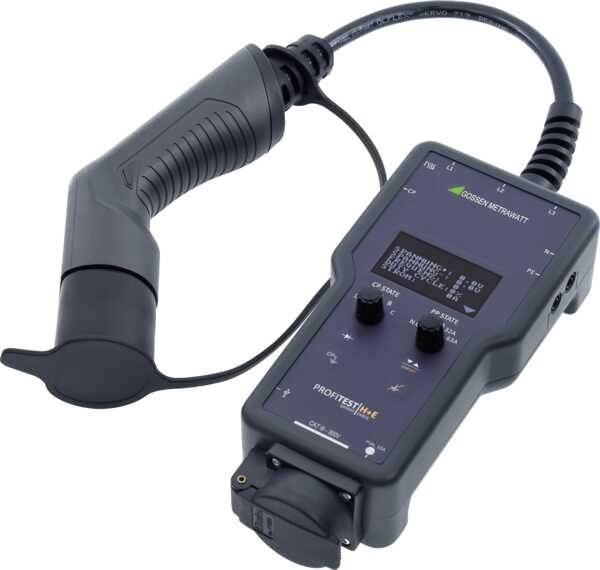

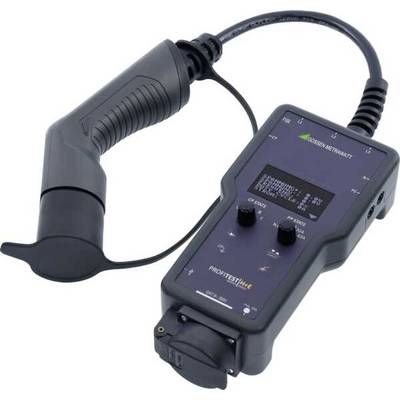

Handheld electrical safety measuring device with display and buttons, in black colour, with a curved handle.

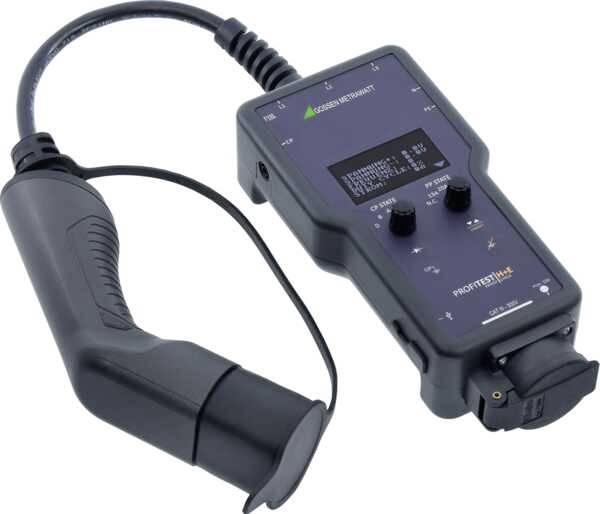

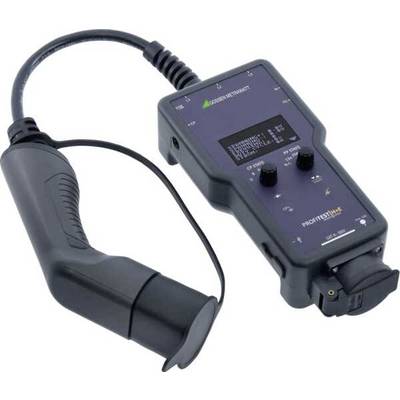

A portable testing device for checking charging cables for electric vehicles. Displays test readings on a small display.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

31 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,465.00 / piece)

€ 2,465.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Diagnostics tester and test adapter for AC charging points according to IEC 61851-1, VDE 0122-1

Diagnosis and test adapter in one device
Display of positive and negative PWM-voltages
Tested according to standard PE interruption with the display of the trigger time according to VDE 0122-1 (IEC 61851-1)

Technical specifications

Product type: Teat lead adapter

: Manufacturer's standards (with certificate)

Reading category: CAT III 300 V

Interfaces: 1x USB

Dim: (L x W x H) 240 x 115 x 60 mm

Weight: 1180 g

: IP21

Reading range (VDE): Voltage
Frequency
Current

DIN standard: DIN VDE 0122
DIN VDE 0105
DIN VDE 0100

Display type: Digital

Width: 115 mm

Height: 60 mm

Length: 240 mm

Test procedure: manual

Voltage supply: Rechargeable

Memory: No

Type: PROFiTEST H+E EXPERT CHECK

VDE standard: 0122
0105
0100

Features: incl. electric vehicle charging station adapter

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3059411 Gossen Metrawatt PROFiTEST H+E EXPERT CHECK Teat lead adapter, VDE tester, Safety tester VDE standard 0122, 0105, 0100

User & Safety Instructions

User & Safety Instructions 3059411 Gossen Metrawatt PROFiTEST H+E EXPERT CHECK Teat lead adapter, VDE tester, Safety tester VDE standard 0122, 0105, 0100

Description

Design the safe future of e-mobility with the diagnostic tester and test adapter! The robust device surprises with extended testing functionality and user-oriented user comfort. Beyond the standard-compliant function testing of charging pillars according to DIN EN/IEC 61851-1 (VDE 0122-1), the new tester also enables electrical testing of the charging infrastructure. For this purpose the PROFITEST H+E EXPERT CHECK is combined with devices from the PROFITEST MF- or PROFITEST Master IQ-series.

This text is machine translated.
