Name: Gossen Metrawatt PROFiTEST MF TECH 0105-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st
Brand: Gossen Metrawatt
SKU: 2730560
Availability: BackOrder

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 27 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,889.00 / piece)

€ 3,889.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Test set for repeat testing according to DIN VDE 0105-100 for testing the effectiveness of protective measures on electrical installations.

Context-sensitive color graphic displayMeasurement and test procedure - simple creation of the plant structure / measuring & saving / generating logs Pre-configured and self-programmable test sequences for quick testing of electrical systems Memory concept for up to 50,000 recordsTesting all current all-current sensitive RCDs, RDC-DD, RCMBProtection of the operator by PE detection when used by finger contactFuture-oriented connectivity

Technical specifications

Product type: VDE tester kit

: DAkkS standards

Reading category: CAT III 600 V
CAT IV 300 V

Interfaces: USB

Dim: (L x W x H) 330 cm x 260 mm x 90 mm

Weight: 2.7 kg

: IP40

Reading range (VDE): Loop impedance
RCD testing (AC, A, F, B, B+, EV)
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
Insulation resistance
Earth resistance
Earth fault loop impedance
Earth leakage resistance
Earth leakage current
Voltage
Current
Frequency
Resistance
Show more

DIN standard: DIN VDE 0100
DIN VDE 0105
DIN VDE 0413
DIN EN 61010-1
DIN EN 61557

Display type: Digital

Width: 260 mm

Height: 90 mm

Length: 330 cm

Test procedure: automated
manual

Voltage supply: Rechargeable
Battery

Memory (space): 50000

Memory: Yes

Type: PROFiTEST MF TECH 0105-Set

VDE standard: 0100
0100-600
0105
0411
0413

Features: incl. case
incl. software

Documents & Downloads

Datasheet

Datasheet 2730560 Gossen Metrawatt PROFiTEST MF TECH 0105-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st

User & Safety Instructions

User & Safety Instructions 2730560 Gossen Metrawatt PROFiTEST MF TECH 0105-Set VDE tester kit, Electrical tester set Calibrated to (DAkkS standards) VDE st

Description

The PROFITEST MF TECH 0105-set makes the investment decision easy for you. Because with the accessories customized perfectly to your requirements, the set is especially suitable for its testing tasks within the framework of the DGUV-regulation 3. Professional recording of the test objects and documentation of the test.

This text is machine translated.

Features

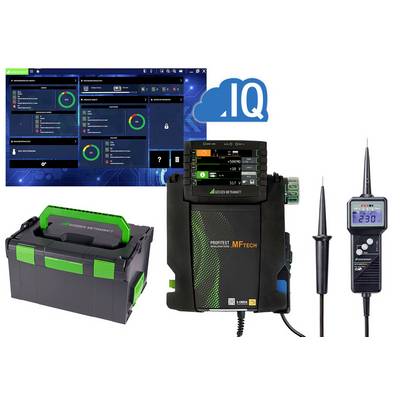

PROFITEST MF TECH Installation testerSortimo L-BOXX: System case with inner dividers for PROFITEST Master and accessoriesIZYTRONIQ BUSINESS Professional – Database software + Cloud voucherMETRAVOLT 12D+L voltage and continuity testerDisplayContext-sensitive color graphic display Soft key buttons Allows you to conveniently select sub-functions And parameters. Unavailable subfunctions and Parameters are automatically hidden.Special measurementsSelective earth resistance RE (mains operation)With 2-pin adapter, probe, earthing and clip-on current sensor(3-pole measurement method)Measurement potential equalizationCurrent measurement with pliers Field directionEarth leakage resistance RE(ISO)Voltage dropLocation isolation ZSTCounter start (kWh test)Testing of E-loading columns andElectric vehicles on E-loading pillars (IEC 61851-1)Inclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.

Scope of delivery

1 x Prof.test MF TECH1 x earthing-contact plug inserts (country-specific)1 x 2-pin measuring adapter and1 x cable for expansion to 3-pin adapter (PRO-A3-II)2 x alligator clips1 x shoulder belt1 x set of rechargeable batteries (Z502H)1 x chargers (Z502R)1 x quick user manual1 x side sheet safety information1 x DAkkS calibration certificate1 x USB-interface cable 1 X METRAVOLT 12D+L1 x Sortimo plastic system case with inlay1 x software IZYTRONIQ BUSINESS PROFESSIONAL1 x IZYTRONIQ Cloud voucher for 12 months

Description

Features

PROFITEST MF TECH Installation testerSortimo L-BOXX: System case with inner dividers for PROFITEST Master and accessoriesIZYTRONIQ BUSINESS Professional – Database software + Cloud voucherMETRAVOLT 12D+L voltage and continuity testerDisplayContext-sensitive color graphic display Soft key buttons Allows you to conveniently select sub-functions And parameters. Unavailable subfunctions and Parameters are automatically hidden.Special measurementsSelective earth resistance RE (mains operation)With 2-pin adapter, probe, earthing and clip-on current sensor(3-pole measurement method)Measurement potential equalizationCurrent measurement with pliers Field directionEarth leakage resistance RE(ISO)Voltage dropLocation isolation ZSTCounter start (kWh test)Testing of E-loading columns andElectric vehicles on E-loading pillars (IEC 61851-1)Inclusive IZYTRONIQ database software for managing equipment, machinery, equipment and medical devices in combination with locations across a double tree structure and for managing auditors, test equipment, catalogs and sequences.

Scope of delivery

1 x Prof.test MF TECH1 x earthing-contact plug inserts (country-specific)1 x 2-pin measuring adapter and1 x cable for expansion to 3-pin adapter (PRO-A3-II)2 x alligator clips1 x shoulder belt1 x set of rechargeable batteries (Z502H)1 x chargers (Z502R)1 x quick user manual1 x side sheet safety information1 x DAkkS calibration certificate1 x USB-interface cable 1 X METRAVOLT 12D+L1 x Sortimo plastic system case with inlay1 x software IZYTRONIQ BUSINESS PROFESSIONAL1 x IZYTRONIQ Cloud voucher for 12 months
