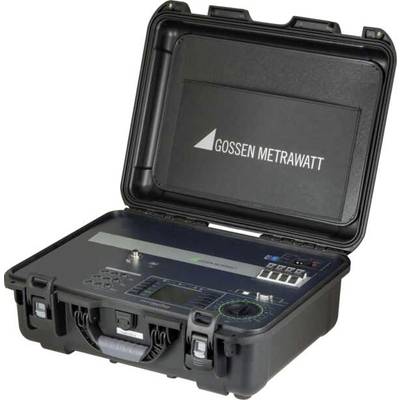

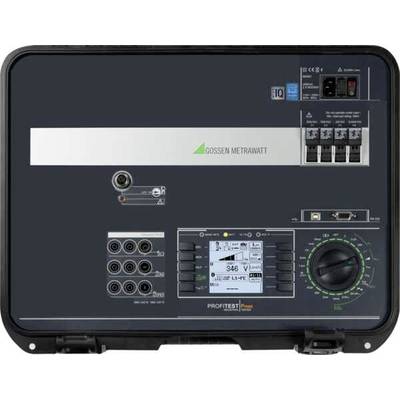

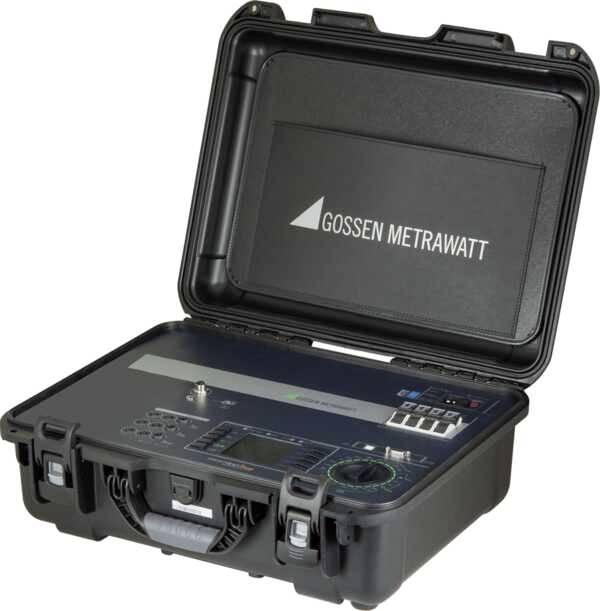

Gossen Metrawatt PROFITEST PRIME VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 0100-6
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4,814.29 / piece)
€ 4,814.29
plus VAT.
Technical specifications
- Product type
VDE tester
DAkkS standards
- Interfaces
1x USB host
1x RS 232
- Dim
(L x W x H) 500 x 210 x 410 mm
- Weight
10150 g
- Reading range (VDE)
Earth fault loop impedance
Frequency
Insulation resistance
PRCD testing (2-pin, 3-pin, PRCDS, PRCDS+, PRCDK)
RCD testing (AC, A, F, B, B+)
RCD testing (AC, A, F, B, B+, EV)
Loop impedance
Earth leakage current
Earth leakage resistance
Voltage
Show more
- Display type
Digital (LCD)
- Width
210 mm
- Height
410 mm
- Length
500 mm
- Test procedure
automated
manual
- Voltage supply
230 V/AC
Rechargeable
- Type
PROFITEST PRIME
- VDE standard
0100
0100-600
0105
0105-100
0113
0122
0126
0413
0660
- Features
incl. software
RCD/FI testing
incl. case
PV testing
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3203905 Gossen Metrawatt PROFITEST PRIME VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 0100-6
User & Safety Instructions
User & Safety Instructions 3203905 Gossen Metrawatt PROFITEST PRIME VDE tester, Electrical tester Calibrated to (DAkkS standards) VDE standard 0100, 0100-6
Description
The PROFITEST PRIME makes the investment decision easy for you. The perfectly tailor-made accessories can be used to test electrical systems according to DIN VDE 0100-600, machinery and equipment according to VDE 0113-1, PV systems according to VDE 0126-23 and E charging stations according to VDE 0122-1 standard conform.
PROFITEST PRIME – versatile and future-proof
Intuitive operation
Work efficiently
Check in accordance with the standard
Right-handed logging
PROFITEST PRIME - saves time and money
Only one test device for a wide range of applications
All measurements without annoying replugging of the test leads
Exchangeable measuring tips on the measuring leads
Internationally applicable thanks to language selection
PROFITEST PRIME – even in 10 years
Future-proof through firmware updates
Service the next 10 years
DAkkS certificate with its own calibration center
User support and support for examination questions
PROFITEST PRIME – quick and easy to log
Cascadable future-proof software concept
Modern data management through customer and measurement data management
Creation of plant structures from the plant to the measuring points
Quick and easy to access right-handed protocol as per ZVEH
PROFITEST PRIME - safe measurement and testing
Easy to operate thanks to rotary switch
Pre-defined test sequences for a structured test
Coded plugs provide for error-free tests
Help on site with help function and connection diagrams
Measurement category 600 V CAT III / 300 V CAT IV.
Four-wire measuring technology - no compensation of the measurement leads required
This text is machine translated.
PROFITEST PRIME – versatile and future-proof
Intuitive operation
Work efficiently
Check in accordance with the standard
Right-handed logging
PROFITEST PRIME - saves time and money
Only one test device for a wide range of applications
All measurements without annoying replugging of the test leads
Exchangeable measuring tips on the measuring leads
Internationally applicable thanks to language selection
PROFITEST PRIME – even in 10 years
Future-proof through firmware updates
Service the next 10 years
DAkkS certificate with its own calibration center
User support and support for examination questions
PROFITEST PRIME – quick and easy to log
Cascadable future-proof software concept
Modern data management through customer and measurement data management
Creation of plant structures from the plant to the measuring points
Quick and easy to access right-handed protocol as per ZVEH
PROFITEST PRIME - safe measurement and testing
Easy to operate thanks to rotary switch
Pre-defined test sequences for a structured test
Coded plugs provide for error-free tests
Help on site with help function and connection diagrams
Measurement category 600 V CAT III / 300 V CAT IV.
Four-wire measuring technology - no compensation of the measurement leads required
This text is machine translated.
Features
- Measurement in AC-/DC-mains
- Measurement of the network internal and error loop impedance with Hohem test current up to 690 V AC / 800 V DC without tripping RCD type A and type B.
- Low ohm measurement for protection and potential equalizing conductors with 200 mA and automatic polarity reversal and 25 A
- RCD TESTING TYPE A, AC, F, B, B+, EV,F-EV,F-audio, mi, G/R, SRCDs, PRCDs
- E-Mobility: Check RDC-DD and RCMB
- Combined RCD-test with constantly increasing ramp, tripping time, tripping current
- Insulation measurement up to 1000 V with increasing ramp
- Check RCMS and IMDS
- Measurement of leakage and differential currents
- Measuring of temperature and humidity
- VOLTAGE MEASUREMENT 1,000 V AC / DC
- Power and battery operation (with limited functionality)
- Bluetooth and USB interface
- Push-print function – sends the measured value after the measurement has been completed
Scope of delivery
- 1 Measuring/testing device (PROFITEST PRIME)
- 1 power connection cable 1.5 m
- 1 probe for L with probe tip and 4 m probe cable and alligator clip
- 1 Measurement category with attached safety cap: 300 V CAT IV, 600 V CAT III, 1 A
- 1 Measurement category without attached safety cap: 600 V CAT II, 16 A.
- 1 probe for N with probe tip and 4 m probe cable and alligator clip
- 1 probe for PE with probe tip and 4 m probe cable and alligator clip
- 1 accessories pouch 400 x 350 x 50
- 1 USB-interface cables
- 1 quick operating instructions
- 1 DAkkS calibration certificate
- 1 card with registration key for IZYTRONIC software
- 1 IZYTRONIQ business starter
