Name: GW Instek GSG-2160 (GPIB) (CE) Vector Signal Genererator Signal generator 9 kHz - 6 GHz 1-channel Sinus
Brand: GW Instek
SKU: 3437817
Availability: BackOrder

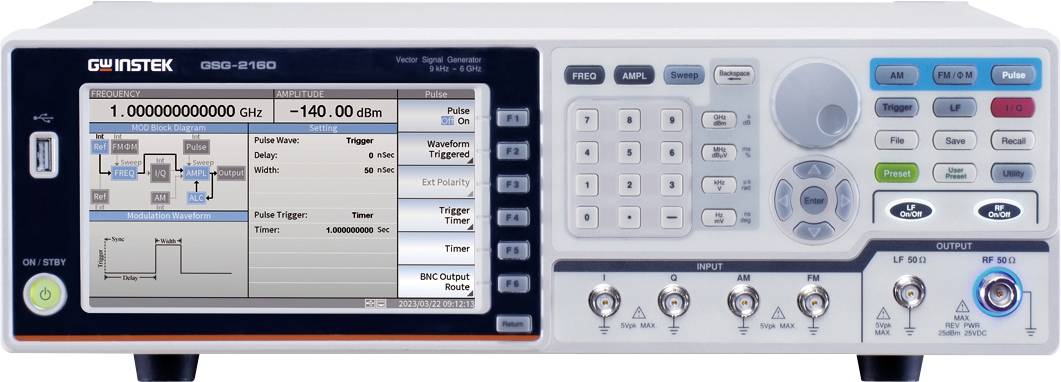

GW Instek GSG-2160 (GPIB) (CE) Vector Signal Genererator Signal generator 9 kHz - 6 GHz 1-channel Sinus-0

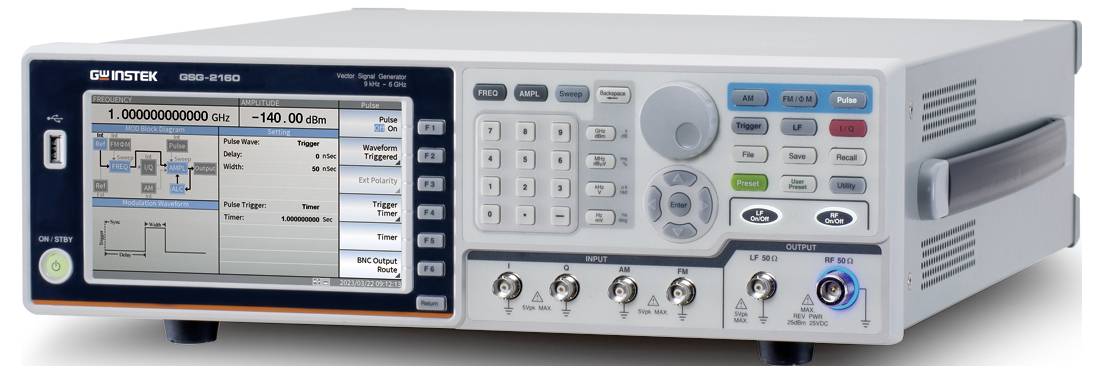

GW Instek GSG-2160 (GPIB) (CE) Vector Signal Genererator Signal generator 9 kHz - 6 GHz 1-channel Sinus-1

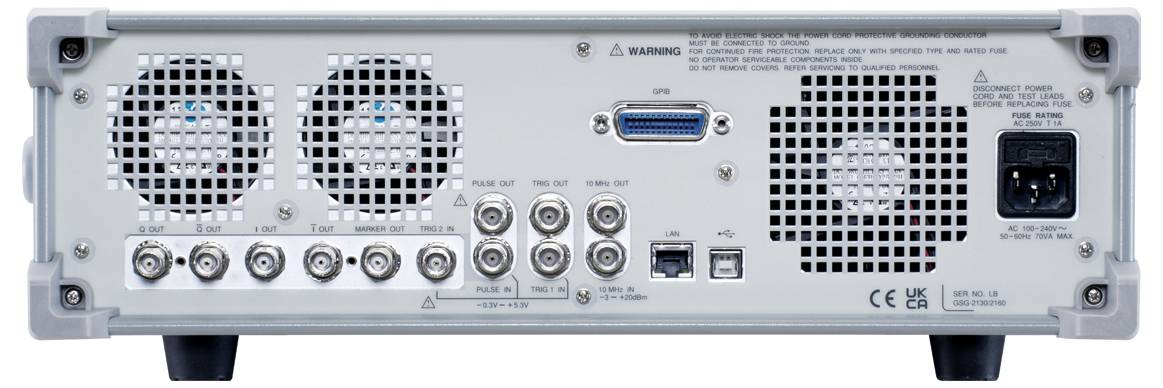

GW Instek GSG-2160 (GPIB) (CE) Vector Signal Genererator Signal generator 9 kHz - 6 GHz 1-channel Sinus-2

1/3

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 17,149.00 / piece)

€ 17,149.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

GW Instek GSG-2160 (GPIB) (CE)

Extensive digital modulation: Supports ASK, PSK, PSK, QAM, FSK, MSK and custom IQ and FSK modulation signals with a maximum bandwidth of 60 MHz for digital signal output.
Wide frequency range: Covers 9 kHz to 6 GHz.
Wide amplitude output range: From +20 dBm to -140 dBm with 0.01 dBm resolution.
Low phase noise: Better than -117 dBc/Hz (typical) at 1 GHz output and 20 kHz offset.
Analogue modulation functions: Built-in AM, FM and PM modulation.
Versatile signal output: Offers LF signals (sine, square, triangle/ramp, Gaussian noise) and pulse signals.
External IQ signal input: Allows the synthesis of IQ signals through external I and Q data.
High frequency accuracy: Standard 10 ppm frequency stability and 2 ppm aging rate. Optionally expandable to 10 ppb frequency stability and 0.1 ppm aging rate (OCXO).
Fast frequency/amplitude switching: Typical ≤ 5 ms.
Comprehensive interfaces: USB and LAN are standard; GPIB is integrated.
Clear display: 7-inch TFT LCD for detailed display of all parameters.
3U standard rack size: Enables easy integration with test systems.

Technical specifications

Frequency resolution 1 MHz
Standard frequency stability 10 ppm.
Standard aging rate: 2 ppm/year.
Amplitude range: -140 dBm to +20 dBm.
Amplitude setting resolution 0.01 dBm

Product type: Signal generator

Frequency range: 9 kHz - 6 GHz

Signal output types: Sinus

Display: LCD

: Manufacturer's standards (no certificate)

No. of channels: 1-channel

Max. frequency: 6 GHz

Min. frequency: 9 kHz

Features: Modulation

Height: 3 U

Interfaces: GPIB

Type: GSG-2160 (GPIB) (CE) Vector Signal Genererator

Documents & Downloads

Datasheet

Datasheet 3437817 GW Instek GSG-2160 (GPIB) (CE) Vector Signal Genererator Signal generator 9 kHz - 6 GHz 1-channel Sinus

User & Safety Instructions

User & Safety Instructions 3437817 GW Instek GSG-2160 (GPIB) (CE) Vector Signal Genererator Signal generator 9 kHz - 6 GHz 1-channel Sinus

Description

The GW Instek GSG-2160 (GPIB) (CE) is a multifunctional RF vector and signal generator, that has been developed especially for the examination of advanced digital modulation signals. It covers a wide frequency range from 9 kHz to 6 GHz and is this Ideal for demanding applications in communication education, HF component tests, automotive applications and IoT applications. The GSG-2160 offers an impressive amplitude accuracy and a low phase noise of -117 dBc/Hz (at 1 GHz output and 20 kHz offset). As the top model of the series it possesses a digital signal modulation function with a maximum bandwidth of 60 MHz for digital signal output, which supports different modulation types like ASK, PSK, PSK, QAM, FSK, MSK and custom IQ and FSK signals. With its integrated analogue modulation functions (AM, FM, PM), LF and pulse signal outputs the GSG-2160 is the perfect tool for detailed signal analyzes and simulations. The intuitive 7-inch TFT LCD display shows all relevant parameters clearly, while the versatile interfaces (USB, LAN, GPIB) enable seamless integration with test systems.
