Joy-it JDS2915 Battery-powered, Mains-powered 15 MHz - 0.01 µHz 2-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
30 Piece(s)
Sales and shipping:
Number
Total (€ 100.83 / piece)
€
Highlights & Details

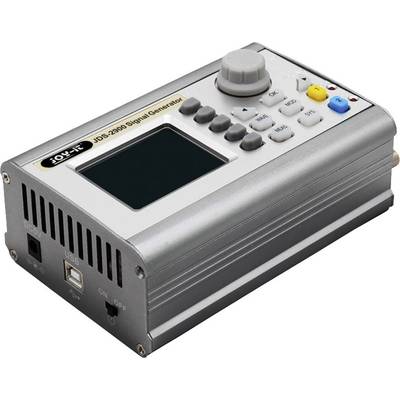

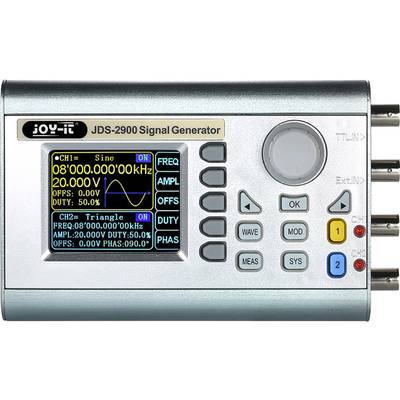

JDS-2915 mobile usable signal generator
- 2-channel signal generator
- 1 channel frequency counter
- 0 to 15 MHz
- Can also be used mobile via power bank
- Incl. Power supply
- Multilingual display/software (D,E,FR)
Technical specifications
- Frequency accuracy ± 20 ppm
- Frequency stability: ± 1 ppm/3h
- Sampling rate 266 MSA/s
- Display: 2.4" TFT color LCD, vertical wave resolution, 14 bits
- Amplitude range<: 10 MHz: 0 - 20 Vpp,> 10 MHz: 0 - 10 Vpp
- Amplitude resolution: 1 mV
- Amplitude stability: ± 5%/5h
- Amplitude evenness<: 10 MHz: ± 5 %,> 10 MHz: ± 10 %
- Output impedance 50 Ω ± 10%
- Wobble function: Frequency range: Adjustable between 0.01Hz - 60MHz, time: Adjustable between 0.1s and 999.9s, direction: Rising, falling, rising + falling, mode: Linear or logarithmic
- Signal output type
Sine, square, triangle, pulse, half, solid wave, expo-nential rise / fall, noise, Lorentz pulse, CMOS and more
- Frequency range
15 MHz - 0.01 µHz
- Frequency range (sine)
0 - 15 MHz
- Distortion factor (sine)
< 0.8 %
- Frequency range square wave
0 - 15 MHz
- Square wave slew rate
< 25 ns
- Frequency range triangle
0 -15 MHz
- ARB frequency range
0 - 6 MHz
- Wobble function
0.01 Hz to 60 MHz
- Frequency reading (external)
1Hz to 100MHz
- Dim
(W x H) 145 mm x 95 mm
- Height
95 mm
- Width
145 mm
- Max. frequency
0.01 µHz
Manufacturer's standards (no certificate)
- No. of channels
2-channel
- Features
incl. cycle counter
- Interfaces
BNC
- Voltage supply
230 V/AC
Battery
Mains
- Type
JDS2915
- Min. frequency
15 MHz
- Product type
Battery-powered
Documents & Downloads
Datasheet
Datasheet 2138350 Joy-it JDS2915 Battery-powered, Mains-powered 15 MHz - 0.01 µHz 2-channel
User & Safety Instructions
User & Safety Instructions 2138350 Joy-it JDS2915 Battery-powered, Mains-powered 15 MHz - 0.01 µHz 2-channel
Description
The JDS2915 is a 2-channel signal generator, which generates signals of up to 15 MHZ. It can be used in all areas of measurement technology with its different curve shapes, such as sine, square, triangle, pulse, half-wave and much more. In addition, a 1-channel frequency counter is integrated. With a frequency accuracy of +/-20ppm and a stability of +/-1ppm/3h, it offers excellent signal quality and flexibility. The 2.4" TFT color display also ensures optimum user-friendliness, resulting in a wide range of possible applications.
Due to its stable metal housing and the possible operation with a power bank, it is also ideally suited for mobile use.
This text is machine translated.
Due to its stable metal housing and the possible operation with a power bank, it is also ideally suited for mobile use.
This text is machine translated.
Scope of delivery
- JDS-2915 Signal generator
- 2x BNC signal terminals
- Power supply unit
