Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary

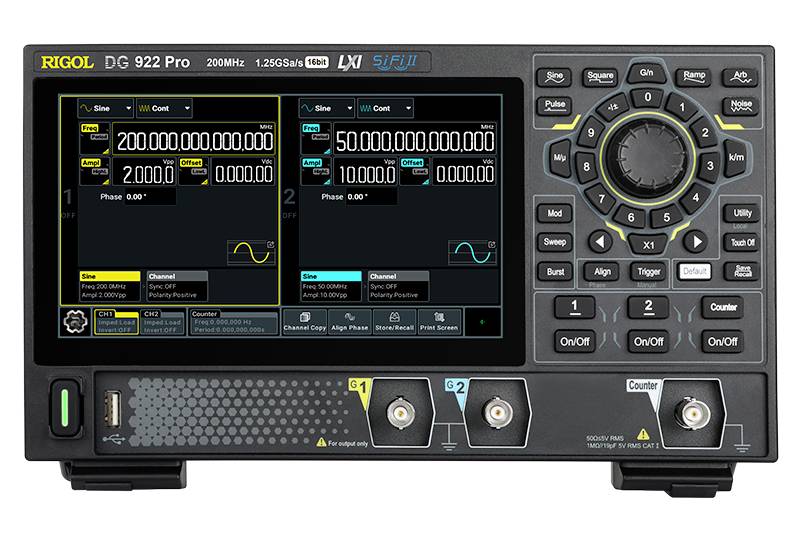

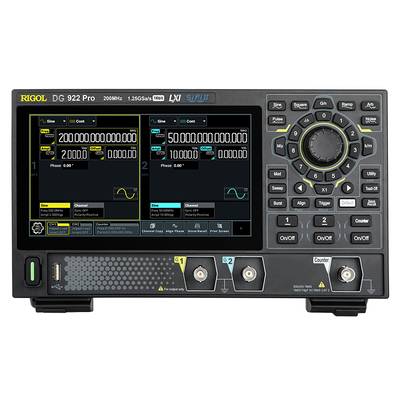

Electronic device for signal generation with two screens, controls, and buttons. Displays waveforms and frequency information.

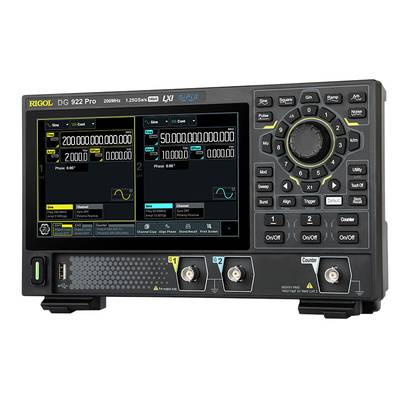

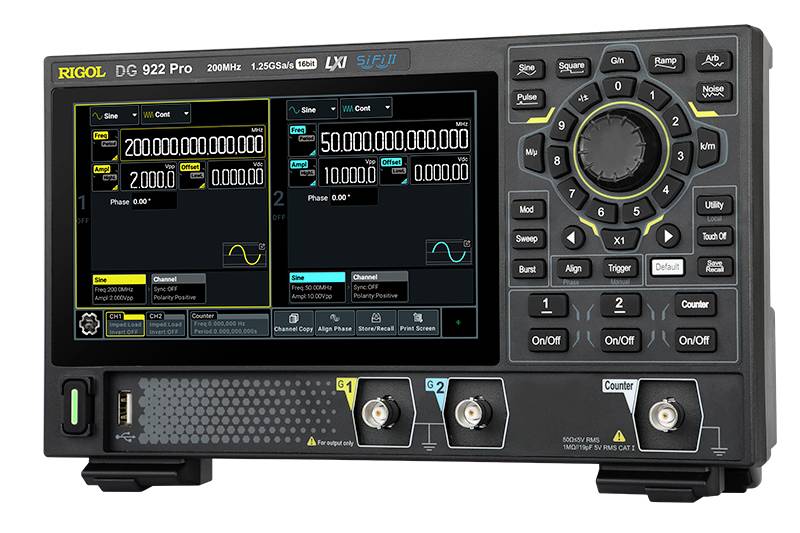

A modern oscilloscope with a digital screen displays two different signal patterns and detailed measurement parameters.

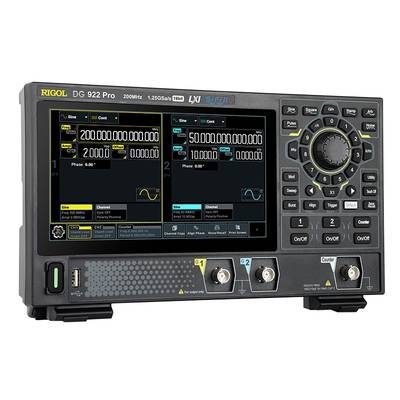

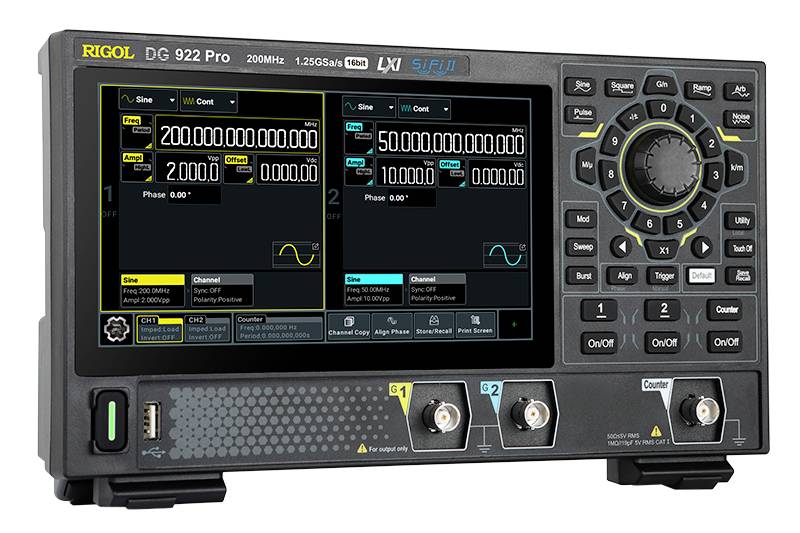

A digital oscilloscope with two channels displays rectangular and sine waves with corresponding settings and modulations.

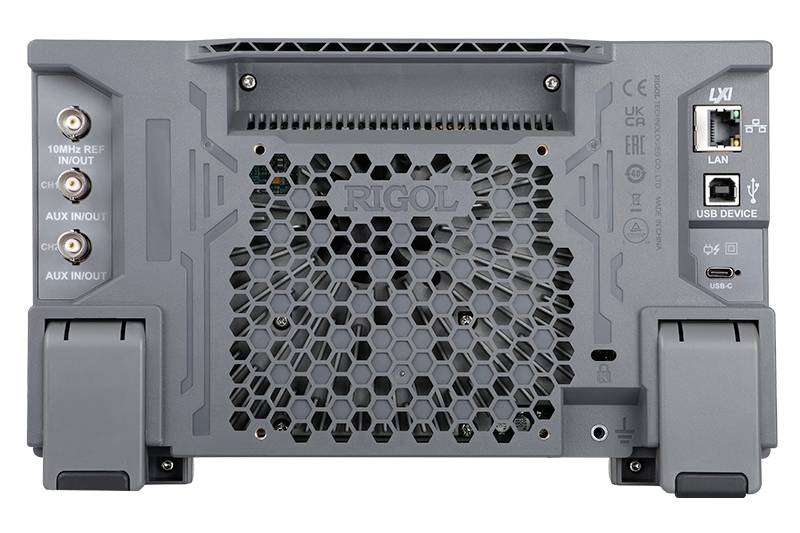

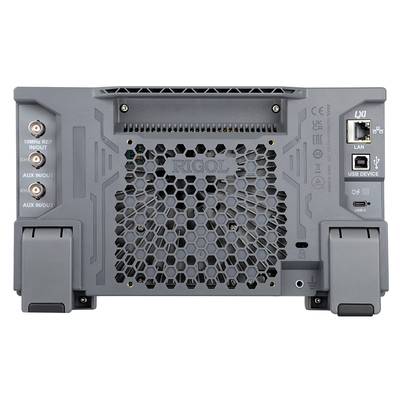

Back of an electronic device with multiple ports, including LAN and USB, ventilation grilles, and the brand name 'RIGOL'.

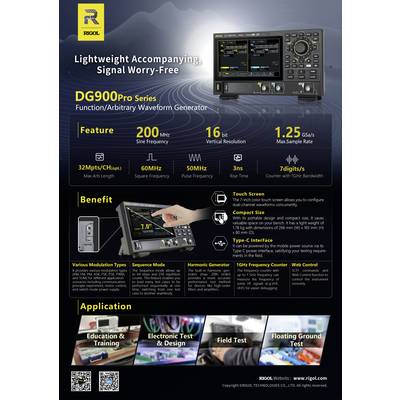

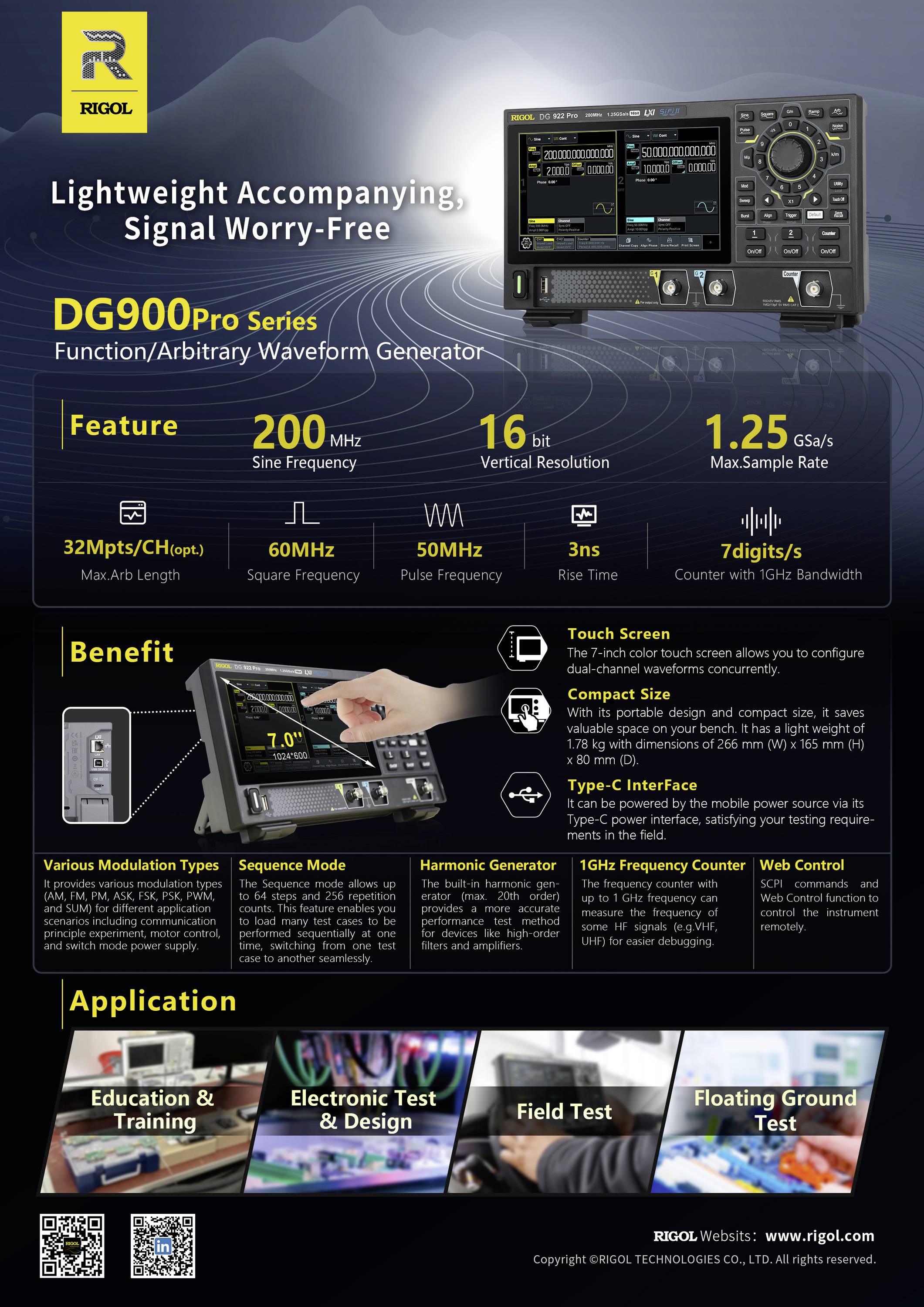

Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary-4
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,375.00 / piece)
€ 1,375.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

  • 16-bit vertical resolution
  • 1.25 GSa/s sample rate
  • Dimensions depth 80 mm
  • 7" touchscreen, 1024 x 600
Product type

Mains-powered

Frequency range

1 µHz - 200 MHz

Signal output types

Sinus

Rectangle

Ramp

Pulse

Arbitrary

Frequency range (sine)

1 μHz - 200 MHz

Frequency range square wave

1 μHz - 60 MHz

Display

Touchscreen

ARB frequency range

1 µHz - 50 MHz

Manufacturer's standards (no certificate)

Internal modulation

AM, FM, PM, ASK, FSK, PSK, PWM, SUM

Dim

(W x H) 266 mm x 165 mm

Weight

1.78 kg

No. of channels

2-channel

Max. frequency

200 MHz

Min. frequency

1 µHz

Features

Modulation

Width

266 mm

Height

165 mm

Interfaces

USB device

USB host

LAN

Voltage supply

Mains

Type

DG922 Pro

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3046560 Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary

User & Safety Instructions

User & Safety Instructions 3046560 Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary

User & Safety Instructions 3046560 Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary

User & Safety Instructions 3046560 Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary

Warranty Terms

Warranty Terms 3046560 Rigol DG922 Pro Mains-powered 1 µHz - 200 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary

Description

The function/arbitrary wave generator of the series DG900 Pro offers a sampling rate of up to 1.25 GSa/s and 16 Mpts/CH memory depth (standard). It is a cost-effective, two-channel function/arbitrary waveform generator that combines several functions, including function generator, arbitrary waveform generator, noise generator, pulse generator, Harmonic generator, analogue/digital modulator and counter.
