Name: GW Instek PEL-3032E Electrical load 500 V DC 15 A 300 W
Brand: GW Instek
SKU: 1601400
Availability: BackOrder

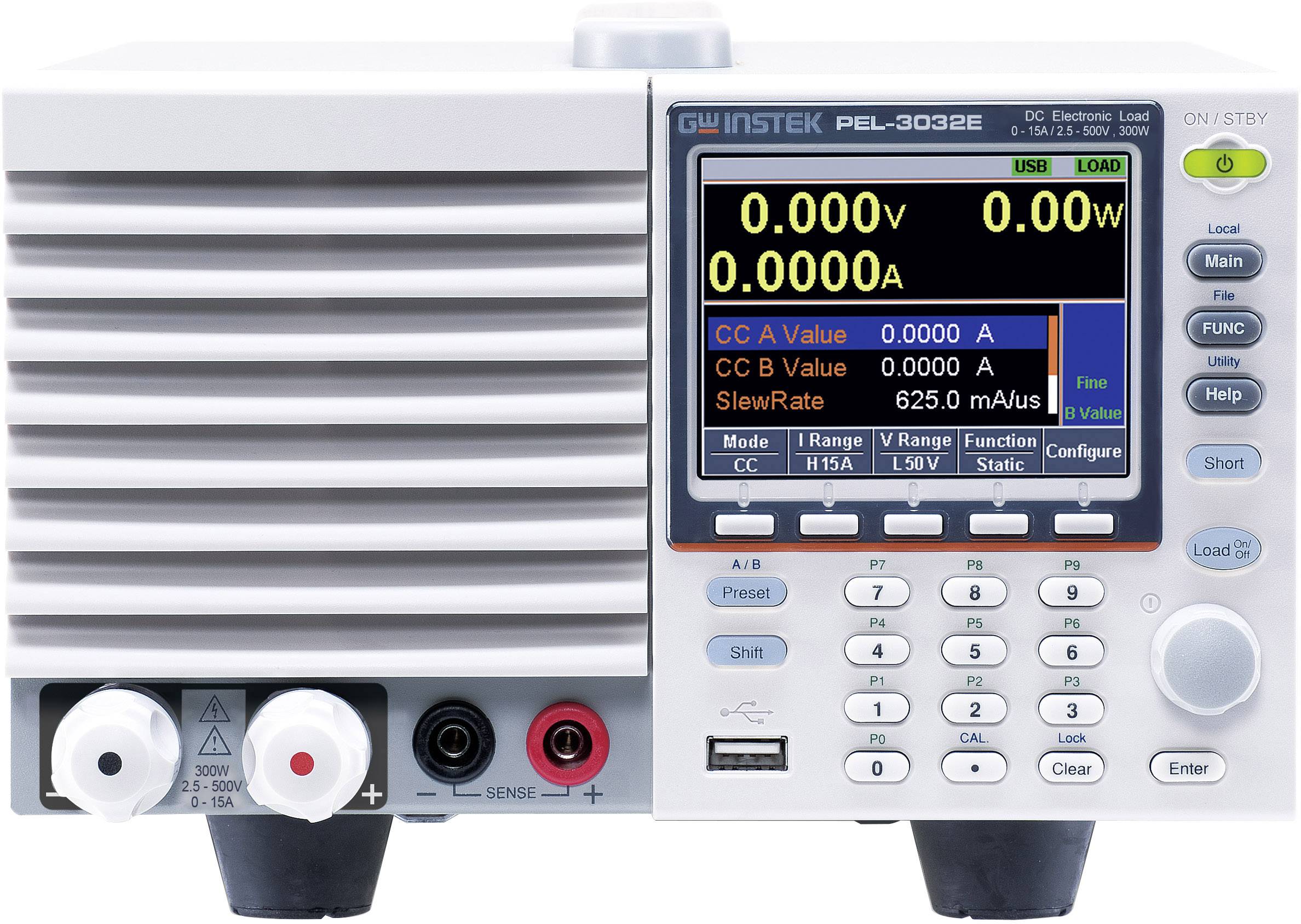

An electronic load device with a digital display shows current and voltage values. Buttons and connections are located on the front panel.

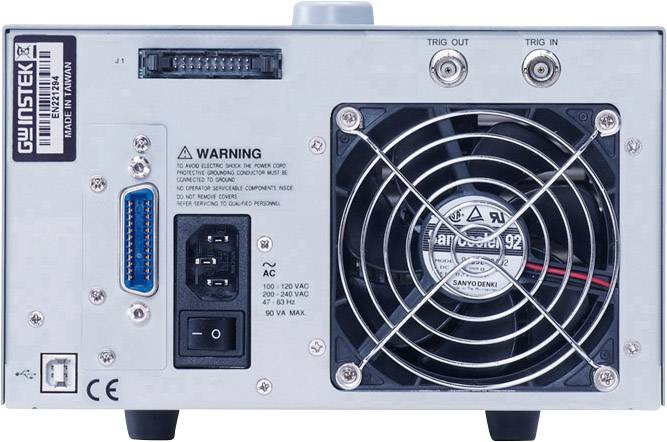

This image shows the rear of an electronic device with a fan, power cable connection, and various ports.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,365.00 / piece)

€ 2,365.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Programmable electronic load PEL -3032 E

Power 300W
Voltage 2.5~500V
Current 0~15A
7 Operating Modes: CC, CV, CR, CP, CC+CV, CR+CV, CP+CV
Fast/ Normal Sequence Function
Battery discharge test
OCP、OPP test Automation
Max. Slew Rate: 2.5A/us

Technical specifications

Type: PEL-3032E

Input voltage: 100 - 240 V AC

Product type: Electrical load

Min. input voltage: 100 V AC

Input voltage (max.): 240 V AC

Load input current (max.): 15 A

Max. non-stop power rating: 300 W

Dim: (W x H x D) 214 x 124 x 401 mm

Max. input voltage: 500 V DC

Weight: 7.5 kg

: Manufacturer's standards (no certificate)

Inputs: IEC 320 C14

Load input voltage (min.): 2.5 V DC

Min. load input current: 0 A

Load connection: Screw terminals (front)

Width: 214 mm

Height: 124 mm

Depth: 401 mm

Documents & Downloads

Datasheet

Datasheet 1601400 GW Instek PEL-3032E Electrical load 500 V DC 15 A 300 W

User & Safety Instructions

User & Safety Instructions 1601400 GW Instek PEL-3032E Electrical load 500 V DC 15 A 300 W

Information

Information 1601400 GW Instek PEL-3032E Electrical load 500 V DC 15 A 300 W

Description

GW Instek launches new PEL-3000E series programmable single-channel electronic load. In the series, PEL-3031E provides 300W (1V~150V/60A) and PEL-3032E provides 300W(2.5V~500V/15A) current sink capability. Inherited from the PEL-3000 series, PEL-3000E has an easy-to-read LCD panel and user-friendly interface. This model features high speed and accurate measurement capability for electronic component, battery, portable charger and power products that require low to medium power consumption.
