Name: GW Instek PEL-3041 Electrical load 150 V DC 70 A 350 W
Brand: GW Instek
SKU: 1321048
Availability: BackOrder

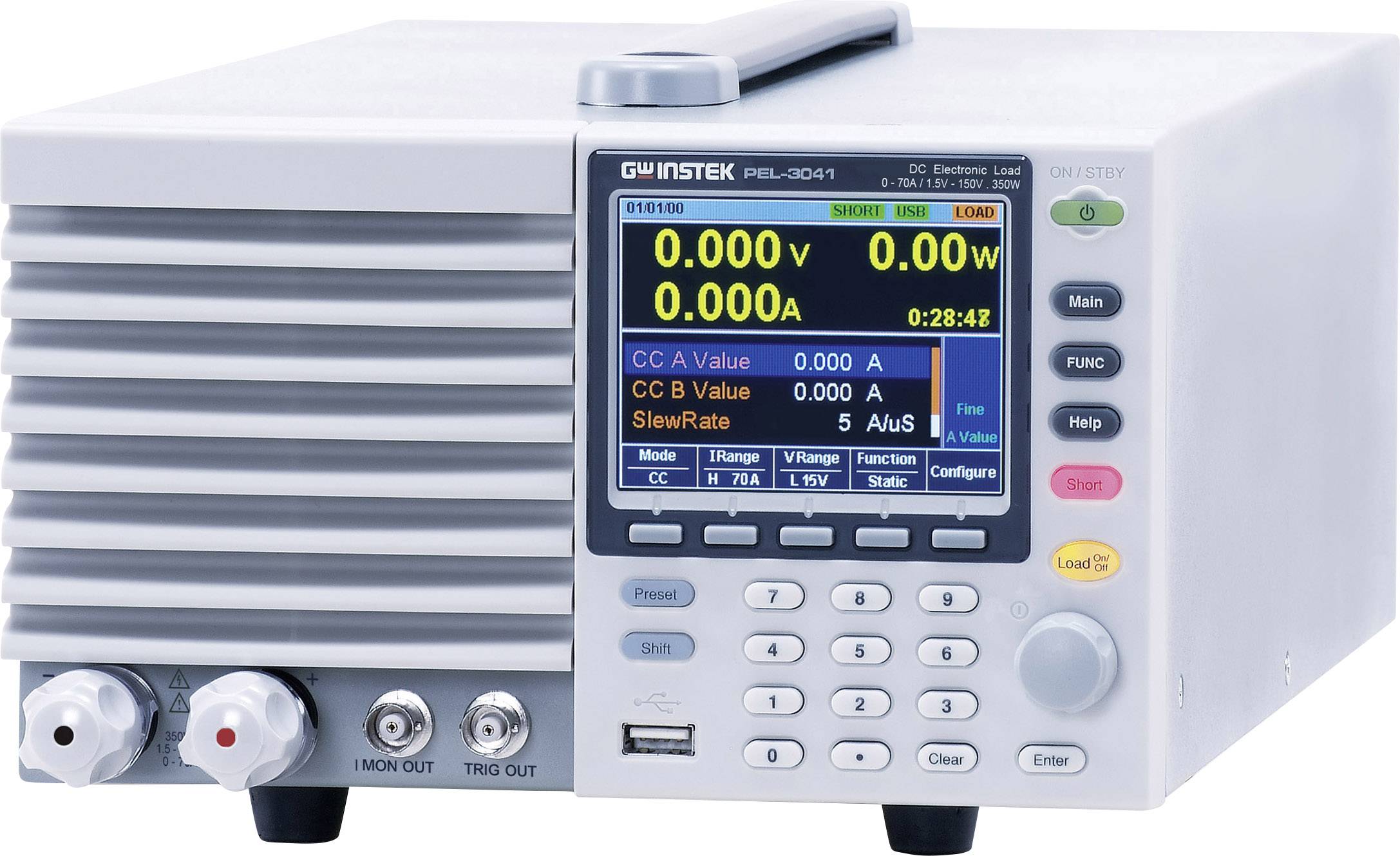

The image shows a GW Instek PEL-3014, a DC electronic load device with digital displays for voltage and current, along with buttons for various settings.

A laboratory power supply with a digital display shows voltage 0.000V, current 0.000A and power 0.000W. Additional controls are located on the right-hand side.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,079.00 / piece)

€ 3,079.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: PEL-3041

Input voltage: 100 - 230 V AC

Product type: Electrical load

Min. input voltage: 100 V AC

Input voltage (max.): 230 V AC

Load input current (max.): 70 A

Max. non-stop power rating: 350 W

Dim: (W x H x D) 215 x 124 x 400 mm

Max. input voltage: 150 V DC

Weight: 7 kg

: Manufacturer's standards (no certificate)

Non-stop power rating: 0.35 W

Inputs: IEC 320 C14

Load input voltage (min.): 1.5 V DC

Min. load input current: 0.00002 A

Load connection: Screw terminals (front)
Screw terminals (rear)

Width: 215 mm

Height: 124 mm

Depth: 400 mm

Documents & Downloads

Datasheet

Datasheet 1321048 GW Instek PEL-3041 Electrical load 150 V DC 70 A 350 W

User & Safety Instructions

User & Safety Instructions 1321048 GW Instek PEL-3041 Electrical load 150 V DC 70 A 350 W

Information

Information 1321048 GW Instek PEL-3041 Electrical load 150 V DC 70 A 350 W

Description

The single-channel PEL-3000-series are electronically controlled high-speed loads for DC voltages. Due to the extremely fast rule times are the devices ideal for quick-switched power supplies and extensive load simulations can be used. Through the wide input range from 1.5 to 150 V/DC, the units are also suitable for charging systems and solar applications.

This text is machine translated.

Features

4 Base Load functions: Constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
3 combined load functions: Constant current and voltage (CC + CV), constant resistance and voltage (CR+CV), constant power and voltage (CP + CV)
Parallel connection of up to 5 typgleichen loads
Go/No Go-Monitoring-Function
Current monitoring and timer function
Interface: USB/RS232/analogue
Protective devices: adjustable low-voltage protection, overvoltage protection, overcurrent protection, Uberleistungsschutz, overheating protection, polarity reversal protection.

Scope of delivery

Power cord
User manual.

Description

Features

4 Base Load functions: Constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
3 combined load functions: Constant current and voltage (CC + CV), constant resistance and voltage (CR+CV), constant power and voltage (CP + CV)
Parallel connection of up to 5 typgleichen loads
Go/No Go-Monitoring-Function
Current monitoring and timer function
Interface: USB/RS232/analogue
Protective devices: adjustable low-voltage protection, overvoltage protection, overcurrent protection, Uberleistungsschutz, overheating protection, polarity reversal protection.
