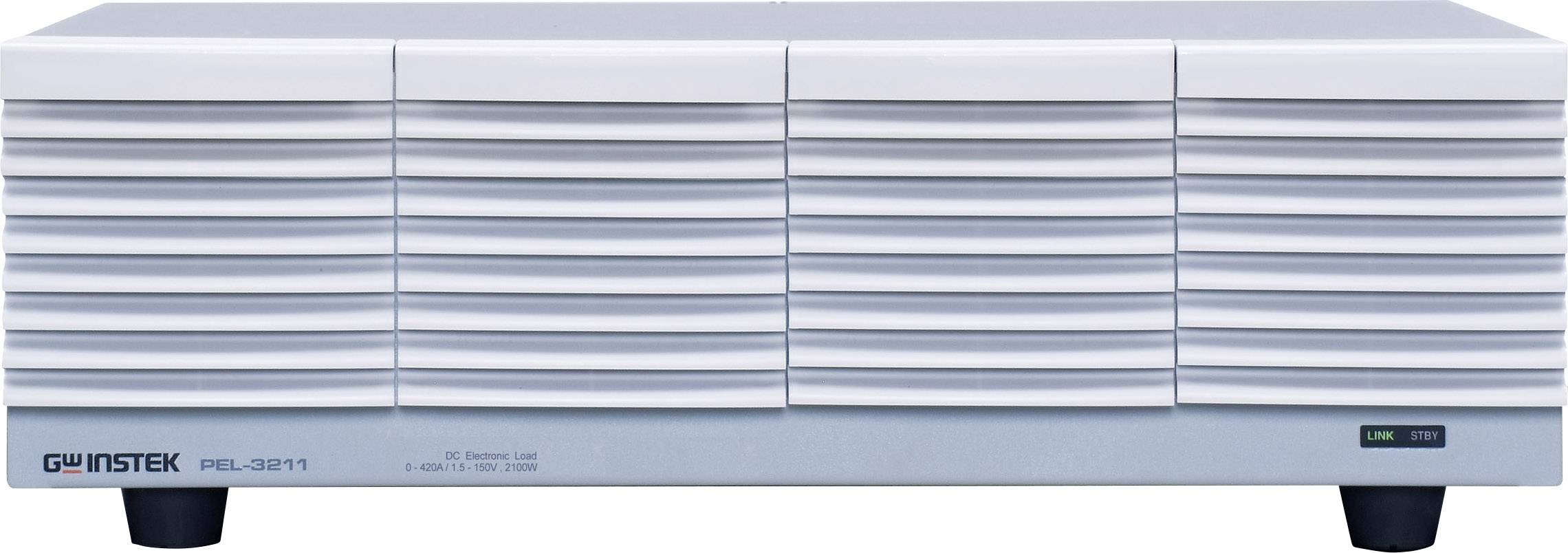

GW Instek PEL-3211 Electrical load 150 V DC 420 A 2100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4,738.66 / piece)
€ 4,738.66
plus VAT.
14-day return policy included
Highlights & Details
Performance Booster PEL -3211 for electronic load PEL-3111
- Additional booster
- 2100 W
- 150 V DC
- 420 A
Technical specifications
- Type
PEL-3211
- Input voltage
100 - 230 V AC
- Product type
Electrical load
- Min. input voltage
100 V AC
- Input voltage (max.)
230 V AC
- Load input current (max.)
420 A
- Max. non-stop power rating
2100 W
- Dim
(W x H x D) 428 x 148 x 593 mm
- Max. input voltage
150 V DC
- Weight
23 kg
Manufacturer's standards (no certificate)
- Non-stop power rating
2.1 W
- Inputs
IEC 320 C14
- Load input voltage (min.)
1.5 V DC
- Load connection
Screw terminals (front)
Screw terminals (rear)
- Width
428 mm
- Height
148 mm
- Depth
593 mm
Documents & Downloads
Datasheet
Datasheet 1321050 GW Instek PEL-3211 Electrical load 150 V DC 420 A 2100 W
User & Safety Instructions
User & Safety Instructions 1321050 GW Instek PEL-3211 Electrical load 150 V DC 420 A 2100 W
User & Safety Instructions 1321050 GW Instek PEL-3211 Electrical load 150 V DC 420 A 2100 W
User & Safety Instructions 1321050 GW Instek PEL-3211 Electrical load 150 V DC 420 A 2100 W
Information
Information 1321050 GW Instek PEL-3211 Electrical load 150 V DC 420 A 2100 W
Description
The Performance Booster enables the extension of the load power in connection with the electronic loads PEL-3111. Up to 4 parallel switched booster to the main device PEL-3111 can be switched.
This text is machine translated.
This text is machine translated.
Features
- 4 Base Load functions: Constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
- 3 combined load functions: Constant current and voltage (CC + CV), constant resistance and voltage (CR+CV), constant power and voltage (CP + CV)
- Parallel connection of up to 5 typgleichen loads
- Go/No Go-Monitoring-Function
- Current monitoring and timer function
- Interface: USB/RS232/analogue
- Protective devices: adjustable low-voltage protection, overvoltage protection, overcurrent protection, Uberleistungsschutz, overheating protection, polarity reversal protection.
Scope of delivery
- Power cord
- User manual.
Hints
The operation is carried out only in connection with PEL-3111.
