Name: GW Instek PEL-3744 Electrical load 150 V DC 1470 A 7350 W
Brand: GW Instek
SKU: 2178569
Availability: BackOrder

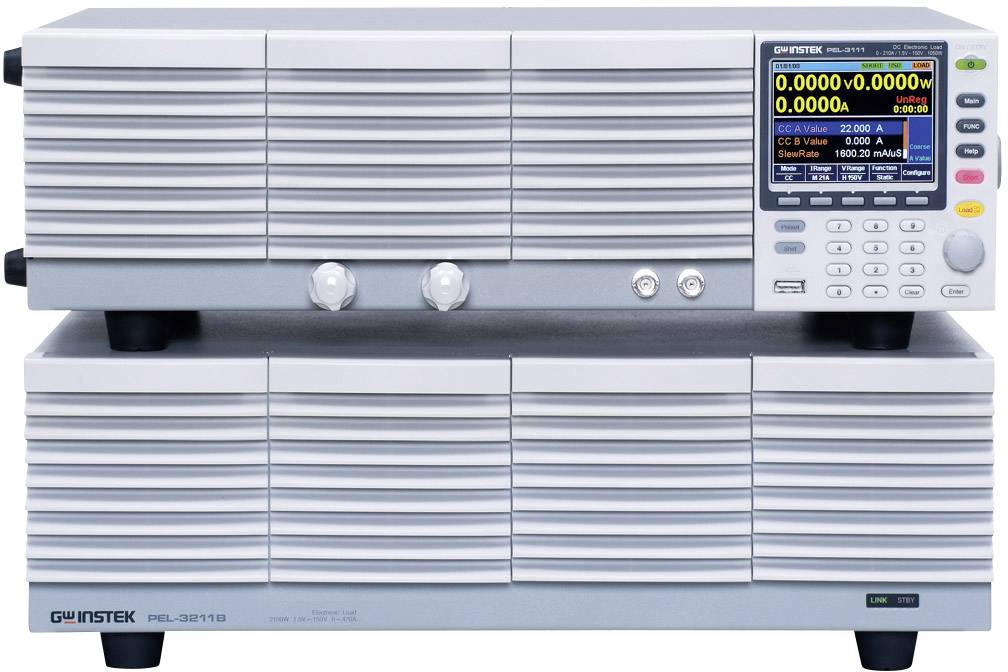

An electronic load device with a digital display that shows current and voltage values. Two fans in the front panel.

Image similar

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25,315.00 / piece)

€ 25,315.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

PEL-3000/3000H Series Programmable DC Electronic Load

Operating voltage (DC)：0~150V(PEL-3000)/ 0~800V(PEL-3000H)
Operating Mode : C.C / C.V / C.R / C.P / CC+CV / CR+CV / CP+CV
Parallel Connection of Inputs for Higher Capacity (Max : 9,450W)
Support of High Slew Rate：Max. 16A/us((PEL-3000)/ 0.84A/us(PEL-3000H)
Run Program Function（GO/NO GO Test）
Sequence Function for High Efficient Load Simulations
Dynamic(Switching) Function：0.0166Hz ~20kHz
Soft Start Function：Off / On(1~200ms, Res：1ms)
Adjustable OCP / OVP / OPP / UVP Setting
Short Circuit Function
Timer function : Elapsed Time of load on
Cut Off Time(Auto Load Off Timer )：1s to 999h 59min 59s or Off
External Channel Control / Monitoring via Analog Control Connector
Setup Memories：100 sets
3.5 Inch TFT LCD Display
Multi Interface : USB 2.0 Device / Host , RS-232 , GPIB / LAN (Optional)

Technical specifications

Interfaces: Analogueue, USB, RS232
Display type used: Color, LCD 3.5"

Type: PEL-3744

Product type: Electrical load

Load input current (max.): 1470 A

Max. non-stop power rating: 7350 W

Dim: (W x H x D) 598 x 611 x 706 mm

Max. input voltage: 150 V DC

Weight: 125 kg

: Manufacturer's standards (no certificate)

Non-stop power rating: 7350 W

Load input voltage (min.): 1.5 V DC

Min. load input current: 0 A

Width: 598 mm

Height: 611 mm

Depth: 706 mm

Variants(All information include VAT, plus shipping costs)

Max. non-stop power rating

Load input current (max.)

Calibrated to

GW Instek PEL-3744 Electrical load 150 V DC 1470 A 7350 W

Item no:2178569

Available soon

Conrad Electronic

This article

7350 W

1470 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25,315.00^*

GW Instek PEL-3212 Electrical load 150 V DC 420 A 2100 W

Item no:2178022

Available soon

Conrad Electronic

2100 W

420 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14,995.00^*

GW Instek PEL-3322 Electrical load 150 V DC 630 A 3150 W

Item no:2178566

Available soon

Conrad Electronic

3150 W

630 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13,465.00^*

GW Instek PEL-3323 Electrical load 150 V DC 630 A 3150 W

Item no:2178567

Available soon

Conrad Electronic

3150 W

630 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21,749.00^*

GW Instek PEL-3424 Electrical load 150 V DC 840 A 4200 W

Item no:2177986

Available soon

Conrad Electronic

4200 W

840 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 28,699.00^*

GW Instek PEL-3533 Electrical load 150 V DC 1050 A 5250 W

Item no:2178568

Available soon

Conrad Electronic

5250 W

1050 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18,289.00^*

GW Instek PEL-3535 Electrical load 150 V DC 1050 A 5250 W

Item no:2178014

Available soon

Conrad Electronic

5250 W

1050 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35,455.00^*

GW Instek PEL-3955 Electrical load 150 V DC 1890 A 9450 W

Item no:2177973

Available soon

Conrad Electronic

9450 W

1890 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31,125.00^*

GW Instek PEL-3212 Electrical load Calibrated to (DAkkS standards) 150 V DC 420 A 2100 W

Item no:2468645

Unavailable

Conrad Electronic

2100 W

420 A

DAkkS standards

Piece(s)

Minimum order quantity: 1

Multiple: 1

GW Instek PEL-3322 Electrical load Calibrated to (DAkkS standards) 150 V DC 630 A 3150 W

Item no:2468644

Unavailable

Conrad Electronic

3150 W

630 A

DAkkS standards

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2178569 GW Instek PEL-3744 Electrical load 150 V DC 1470 A 7350 W

Description

The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01mA current resolution and 16A/μs current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175W to 1050W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications. Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000W and above. The flexible power combination of PEL-3000 meets the test requirements of present high-power power supply.
The PEL-3000H programmable DC Electronic load, which not only inherited functions and features from the PEL-3000 series but providing three current ranges for all PEL-3000H series and adding voltage monitor BNC terminals on the front panel. The PEL-3000H series, a single-channel, programmable D.C. electronic load with 800V and 0.84A/μs current Slew Rate, is ideal for the test of the high voltage devices such as the EV & HEV in-vehicle chargers, DC/DC converters or high-voltage batteries.
