Name: GW Instek PSW-720L55 Bench PSU (adjustable voltage) 0 - 160 0 - 7.2 A 720 W programmable No. of outputs 2 x
Brand: GW Instek
SKU: 3013953
Availability: BackOrder

'Two-channel DC power supply with display: Left channel 80.00V 13.50A; Right channel 30.00V 0.00A. Multiple control buttons.'

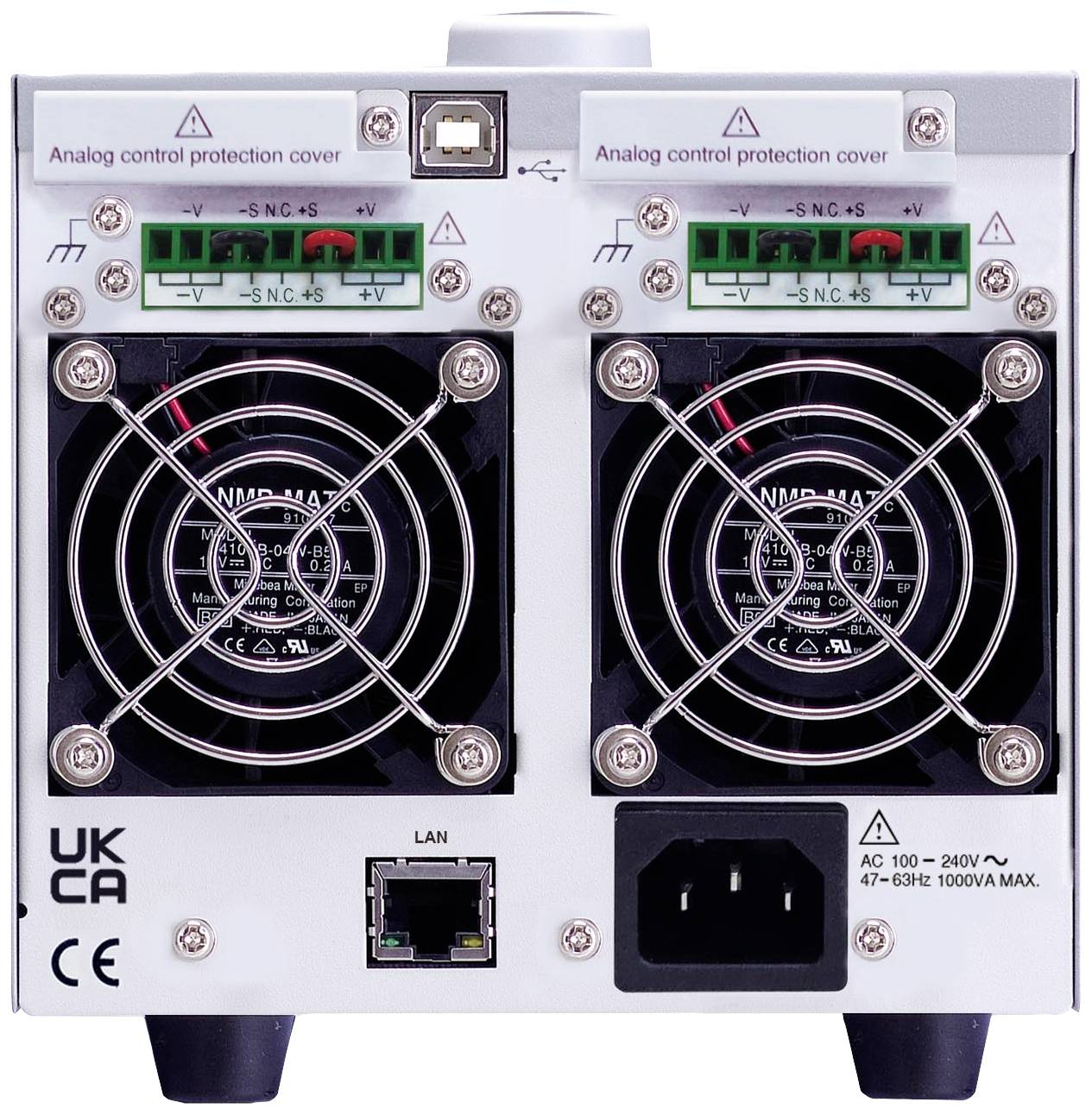

Back of an electronic device with two fans, multiple ports, a LAN connection, and voltage inputs.

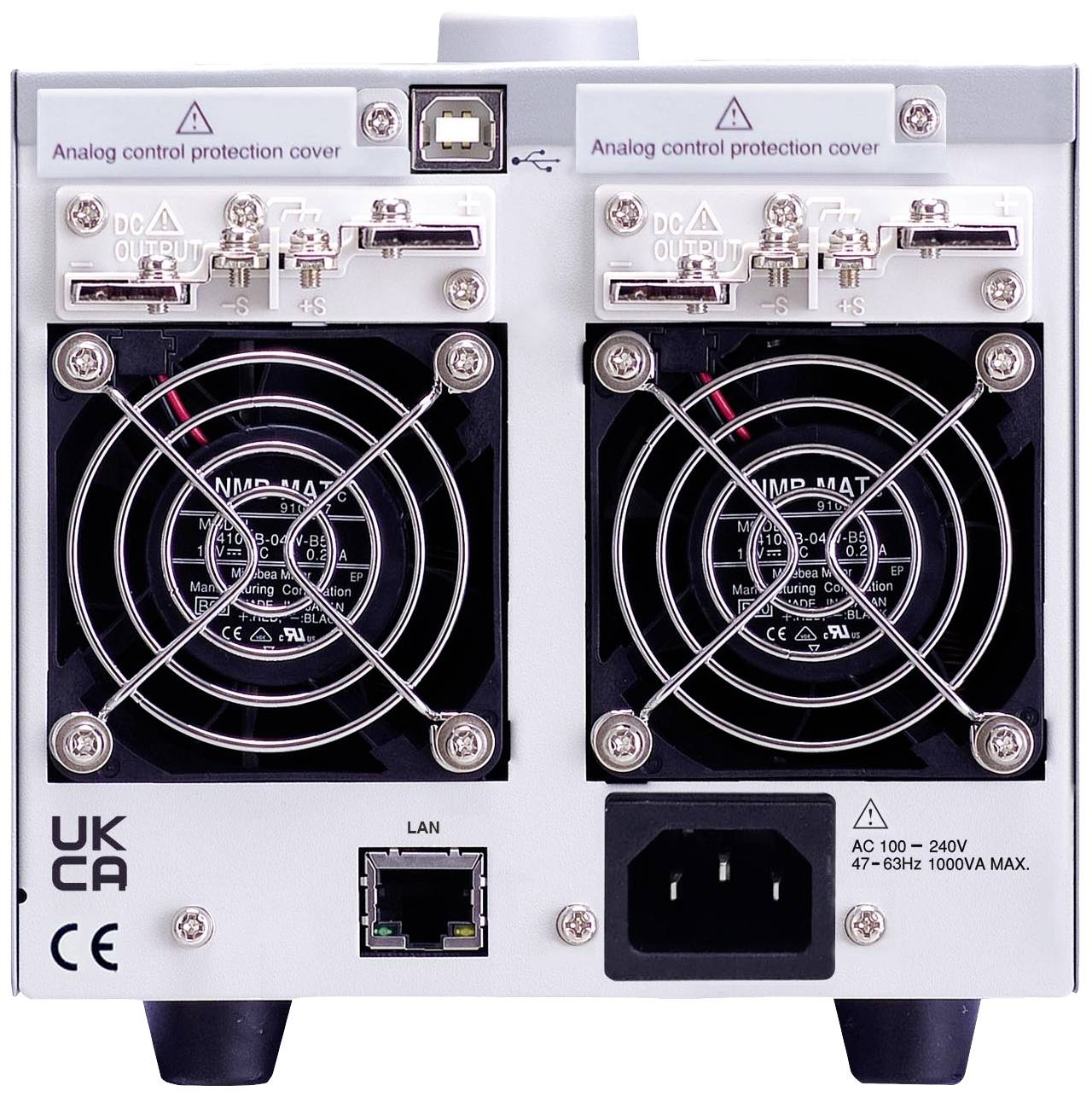

Rear view of an electronic device with two fans, power and LAN connection sockets, and labels for analogue protective caps.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 3,339.00 / piece)

€ 3,339.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Dual-channel switching DC Power supply

No. of outputs 2 x
0 - 160 / 0 - 7.2 A
0 - 160 V DC / 0 - 7.2 A
720 W
programmable

Technical specifications

Type: PSW-720L55

Product type: Bench PSU (adjustable voltage)

No. of outputs: 2 x

: 720 W

Technology: SMPSU

Features: programmable

Dim: (L x W x H) 350 x 142 x 124 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Weight: 5.4 kg

Output voltage (max.): 160 V DC

Output voltage (min.): 0 V DC

Output voltage 2 (max.): 160 V DC

Output voltage 2 (min.): 0 V DC

Max. output current: 7.2 A

Output current (min.): 0 A

Output current 2 (max.): 7.2 A

Output current 2 (min.): 0 A

Width: 142 mm

Height: 124 mm

Length: 350 mm

Max. temperature: +50 °C

Min. temperature: 0 °C

Variants(All information include VAT, plus shipping costs)

Output current

Output voltage

GW Instek PSW-720L55 Bench PSU (adjustable voltage) 0 - 160 0 - 7.2 A 720 W programmable No. of outputs 2 x

Item no:3013953

Available soon

Conrad Electronic

This article

0 - 7.2 A

0 - 160

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,339.00^*

GW Instek PSW-720H66 Bench PSU (adjustable voltage) 0 - 250 0 - 4.5 A 720 W programmable No. of outputs 2 x

Item no:3013954

Available soon

Conrad Electronic

0 - 4.5 A

0 - 250

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,375.00^*

GW Instek PSW-720H68 Bench PSU (adjustable voltage) 0 - 250 0 - 4.5 A 720 W programmable No. of outputs 2 x

Item no:3013955

Available soon

Conrad Electronic

0 - 4.5 A

0 - 250

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,485.00^*

GW Instek PSW-720H88 Bench PSU (adjustable voltage) 0 - 800 0 - 1.44 A 720 W programmable No. of outputs 2 x

Item no:3013956

Available soon

Conrad Electronic

0 - 1.44 A

0 - 800

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,595.00^*

GW Instek PSW-720L11 Bench PSU (adjustable voltage) 0 - 30 0 - 36 A 720 W programmable No. of outputs 2 x

Item no:3013944

Available soon

Conrad Electronic

0 - 36 A

0 - 30

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,039.00^*

GW Instek PSW-720L12 Bench PSU (adjustable voltage) 0 - 30 0 - 36 A 720 W programmable No. of outputs 2 x

Item no:3013945

Available soon

Conrad Electronic

0 - 36 A

0 - 30

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,039.00^*

GW Instek PSW-720L14 Bench PSU (adjustable voltage) 0 - 30 0 - 36 A 720 W programmable No. of outputs 2 x

Item no:3013946

Available soon

Conrad Electronic

0 - 36 A

0 - 30

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,039.00^*

GW Instek PSW-720L15 Bench PSU (adjustable voltage) 0 - 30 0 - 36 A 720 W programmable No. of outputs 2 x

Item no:3013947

Available soon

Conrad Electronic

0 - 36 A

0 - 30

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,189.00^*

GW Instek PSW-720L22 Bench PSU (adjustable voltage) 0 - 40 0 - 27 A 720 W programmable No. of outputs 2 x

Item no:3013948

Available soon

Conrad Electronic

0 - 27 A

0 - 40

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,039.00^*

GW Instek PSW-720L24 Bench PSU (adjustable voltage) 0 - 40 0 - 27 A 720 W programmable No. of outputs 2 x

Item no:3013949

Available soon

Conrad Electronic

0 - 27 A

0 - 40

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,039.00^*

Documents & Downloads

Datasheet

Datasheet 3013953 GW Instek PSW-720L55 Bench PSU (adjustable voltage) 0 - 160 0 - 7.2 A 720 W programmable No. of outputs 2 x

User & Safety Instructions

User & Safety Instructions 3013953 GW Instek PSW-720L55 Bench PSU (adjustable voltage) 0 - 160 0 - 7.2 A 720 W programmable No. of outputs 2 x

Description

The PSW-MULTI series is a programmable DC-switched power supply with two or three channels and a large output range. The maximum output power can reach 1080W. There are 13 two-channel models with a nominal power of 720 W and 24 three-channel models with a nominal power of twice 1080 W. The nominal voltages of the low-voltage modules are 30V, 40V, 80V, 160V. The nominal voltages of the high-voltage modules are 250 V and 800 V.
