GYS K25 Plasma cutter 10 - 25 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,069.00 / piece)
€ 1,069.00
incl. VAT
14-day return policy included
Technical specifications
- Maximum thickness 8 mm for steel, stainless steel and cast iron
- Maximum thickness 6 mm for aluminum and copper
- Product type
Plasma cutter
- Welding current (min.)
10 A
- Welding current (max.)
25 A
- Welding current (range)
10 - 25 A
- Fused
16 A
- Operating voltage
230 V
- Length
410 mm
- Width
200 mm
- Height
360 mm
- Dim
(L x W x H) 410 x 200 x 360 mm
- Weight
15 kg
Documents & Downloads
Datasheet
Datasheet 3020935 GYS K25 Plasma cutter 10 - 25 A
User & Safety Instructions
User & Safety Instructions 3020935 GYS K25 Plasma cutter 10 - 25 A
Information
Information 3020935 GYS K25 Plasma cutter 10 - 25 A
Description

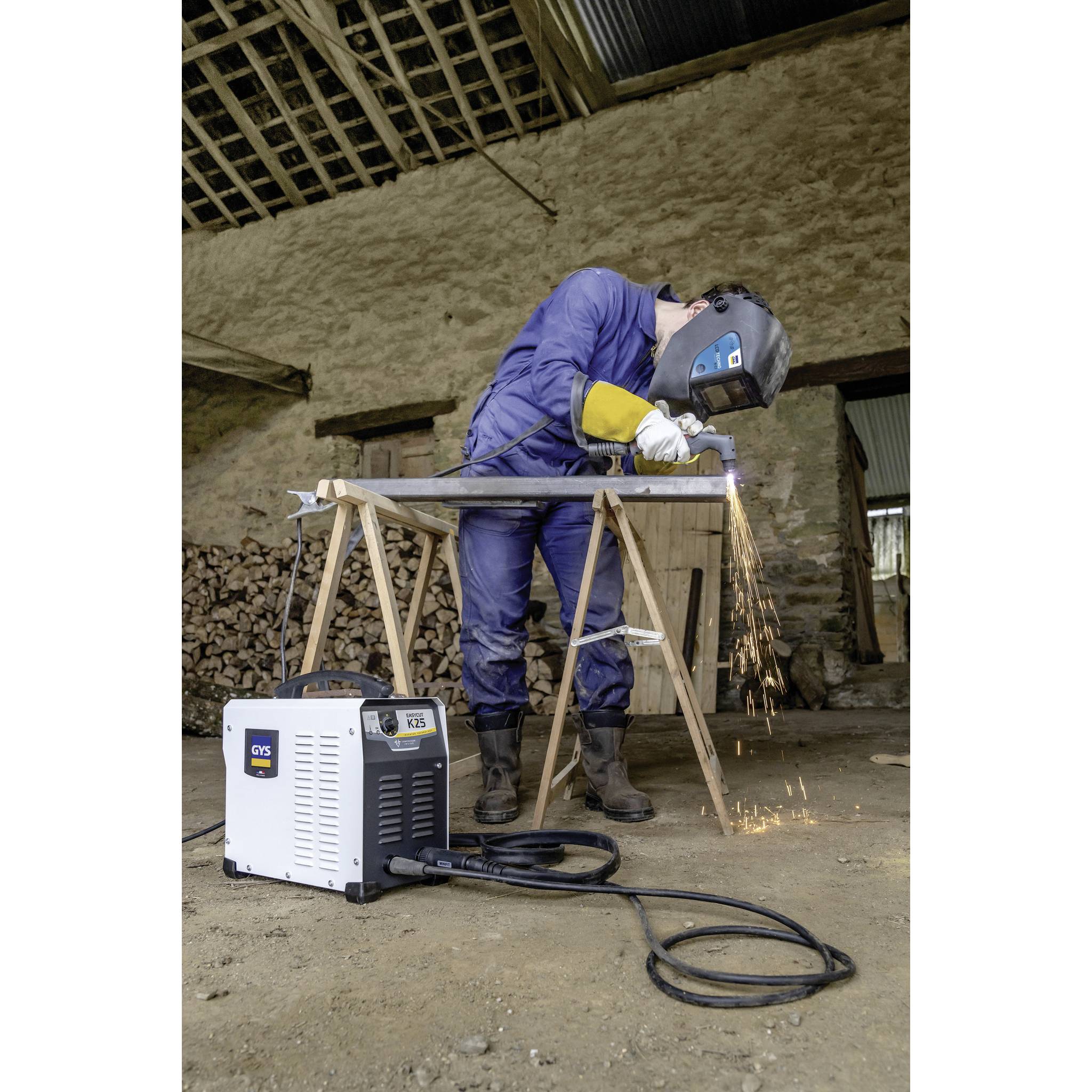

The EASYCUT K25 plasma cutting device with integrated compressor is designed for cutting on metals up to 8 mm thick and is suitable for working in the open. High-frequency free ignition. An external compressed air supply is not required because a compressor is installed. This ensures unrestricted flexibility especially with the use of construction sites. The pilot arc ignites without touching the workpiece. This free high-frequency ignition process prevents electromagnetic interference in the environment (radio, mobile phones, computers, medical devices, etc.).
This text is machine translated.
This text is machine translated.
Features
- 4m cutting torch TPT25 with safety switch, the accidental. Prevents the plasma cutter from starting
- For simple transport, the burner and ground clamp can be removed
- Integrated compressor (sound level 60/70 dB)
- Reinforced protection for operation on generators and with overvoltages up to 400 volts
Scope of delivery
- EASY CUT K25
- Ground clamp (2 m, 10 mm²)
- Burner TPT25 (4 m)
- User manual.
