H-Tronic 1114505 WS5030 Water level sensor 30 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Water sensor WS 5030
- Water sensor for WPS 5000 WS 5030
- Length 30 meters
Technical specifications
- Dim. (Sensor): Approx. 90 x 20 mm
- Product type
Water level sensor
- Connection
Cable with open ends
- Material
Plastic
PVC
Stainless steel V4A
- Cable length
30 m
- Dim
(Ø x L) 20 mm x 90 mm
- Length
90 mm
- (Ø)
20 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062317 H-Tronic 1114505 WS5030 Water level sensor 30 m
Description
The water sensor WS 5030 is suitable in combination with the H-Tronic water level switch WPS 5000 (Article No. 1 11 45 00) and the WPS 4000 (Article No. 1 11 44 60) for automatic level monitoring of conductive liquids in containers, wells, basements etc. The metal sensors are cast in a plastic housing. This measurement sensor with a 30 meter long PVC connecting cable is only intended for detecting liquids in non-aggressive media.
This text is machine translated.
This text is machine translated.
Features
- Design: Sensor cast in plastic (for conducting liquids)
- Robust sensor for durable use under water
- Special features: The measuring electrodes are resistant to chlorine and salt water (stainless steel AISI 316 / V4A)
- Connection: Approx. 30 m PVC cable open cable ends
Scope of delivery

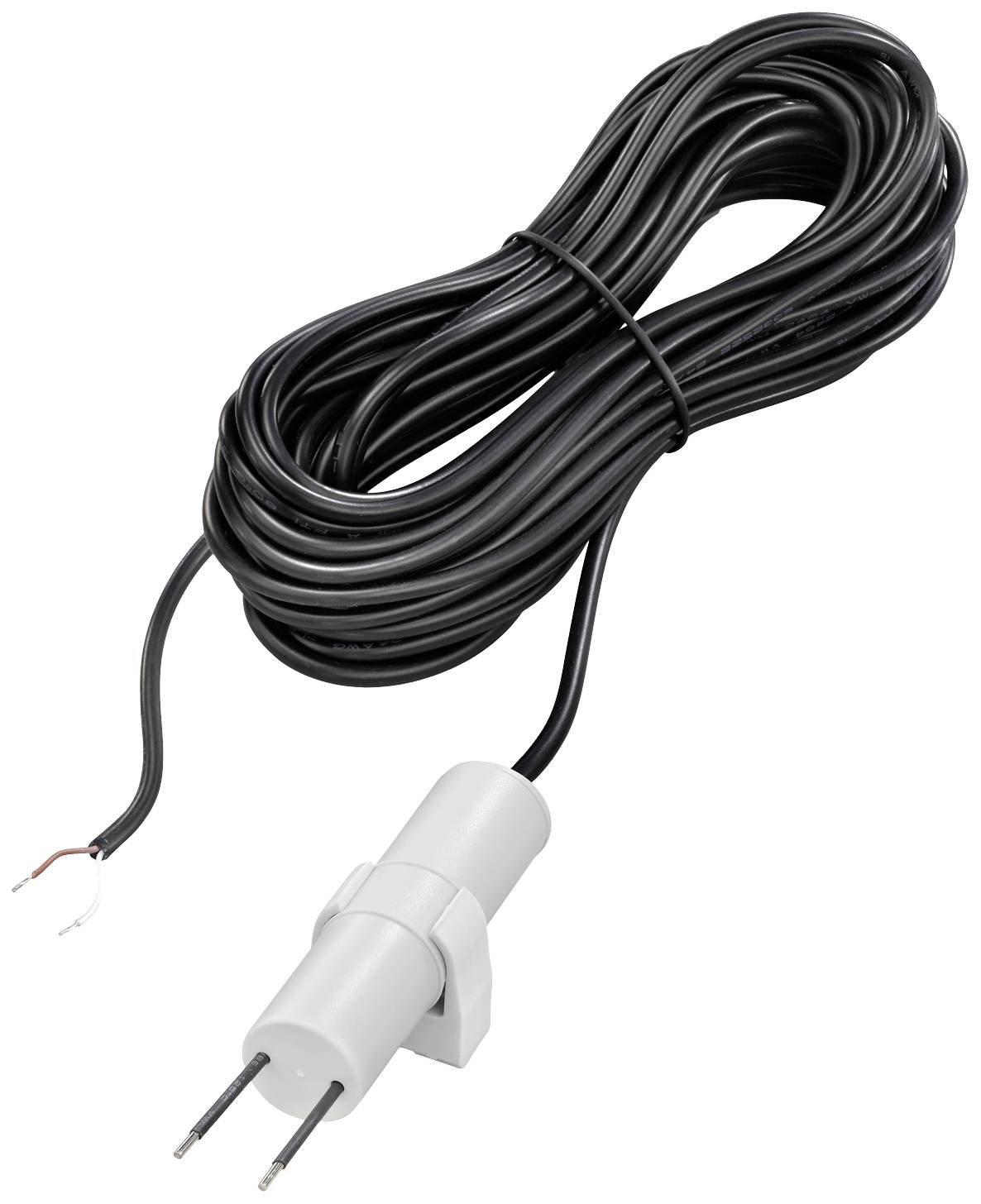

- Water sensor in plastic with approx. 30 meter connection cable and open ends.
Hints
H-Tronic water level switches and water sensors work in conjunction with conductive liquids.
Water is not the same as water, depending on the salts dissolved in it or Ions, water can be more or less conductive. An adequate conductivity of the liquid to be measured is important for the proper functioning of the water sensors.
Tap water, salt water or contaminated water are good conductive liquids. Osmosis water, distilled water or pure rain water are poorly conductive liquids and may therefore not be suitable for water sensors.
Especially in the case of rain water, the function of the water sensor may be alternating, since the conductivity of rain water is subject to strong fluctuations due to environmental influences.
If you want to use a water level switch for poorly conductive liquids, we recommend that you use a mechanical float switch from our assortment instead of a water sensor.
