Name: Hager BR6510019016 Trunking Bottom part (L x W x H) 2000 x 100 x 68 mm 2 m Traffic white
Brand: Hager
SKU: 2815764
Availability: BackOrder

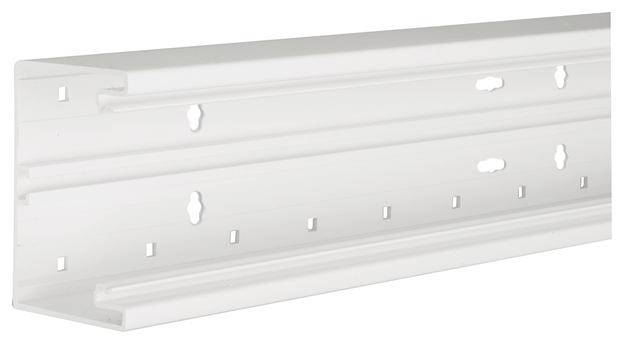

Metal rail with pre-drilled holes for mounting purposes. It is robust and versatile, suitable for use in various constructions.

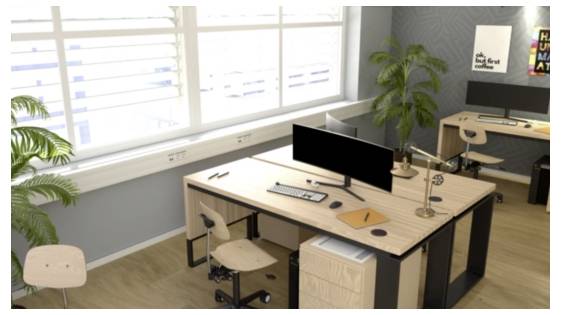

A modern office space with two desks, each featuring a computer monitor, chairs, and plants. Large windows provide ample natural light.

A wall-mounted unit with two electrical power outlets and two network ports, suitable for office or home use.

1/4

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 20.00)

€ 39.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Trunking

Component: Bottom part

Content: 2 m

Factory colour: Traffic white

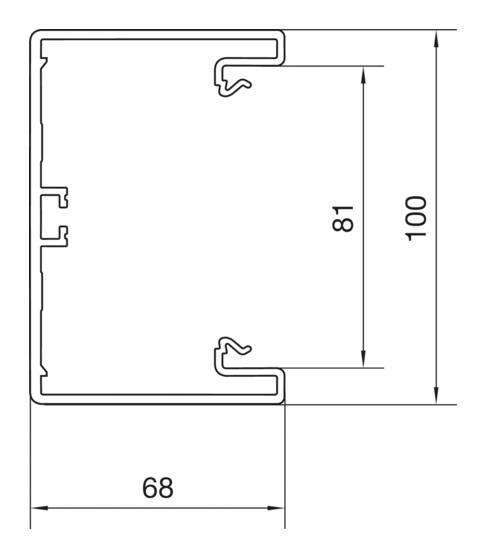

Dim: (L x W x H) 2000 x 100 x 68 mm

Length: 2000 mm

Width: 100 mm

Height: 68 mm

: White

: 100

: FALSE

: 68 mm

: 9016

: Untreated

: Polyvinyl chloride (PVC)

: 2000 m

: Plastic

: Inner lying

: 1

: 1

: TRUE

: FALSE

: TRUE

: 5750 mm²

: 80 mm

: TRUE

: TRUE

: Continuous C-profile

: TRUE

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2815764 Hager BR6510019016 Trunking Bottom part (L x W x H) 2000 x 100 x 68 mm 2 m Traffic white

User & Safety Instructions

User & Safety Instructions 2815764 Hager BR6510019016 Trunking Bottom part (L x W x H) 2000 x 100 x 68 mm 2 m Traffic white

Description

Dado trunking base PVC front latch BR 68x100mm OT 80mm traffic white Channel lower part for the electrical installation channel system Dado trunking made of plastic according to DIN EN 50085-1 as a device mounting channel with upper section 80 or 120 mm for installing commercially available devices with or without additional panels. With mounting holes (universal drill tolerance compensation) for direct wall mounting and additional rectangular holes for tool-free attachment of channel on consoles by means of clip technology. With front locking, tool-free equipment installation for the attachment of devices and equipment installation sockets with quick mounting Additional C-profile as installation option. Couplers available for simple and custom-fit duct mounting, dividers and cable retention clips as accessories. Note: Sound and fire protection measures must be carried out in a professional manner.
