Buy HellermannTyton LKCSF1-PA66-BK Cable mount Screw fixing, Rivets 151-27202 Bundle Ø range 13 mm (max) 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

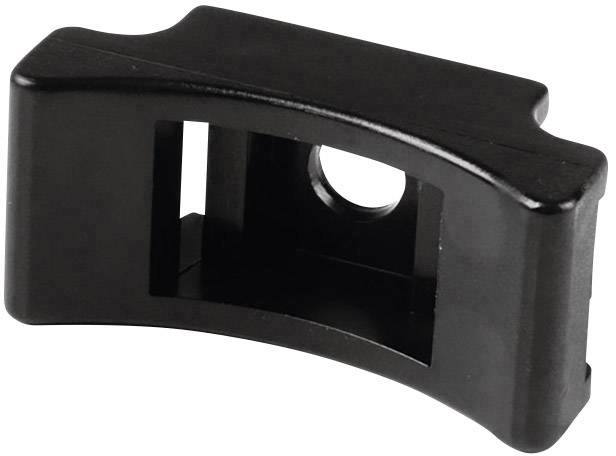

Black plastic part with a rectangular opening and a round hole in the centre. Potential component of a larger device.

Black plastic part with a rectangular opening and a round hole in the centre. Potential component of a larger device.

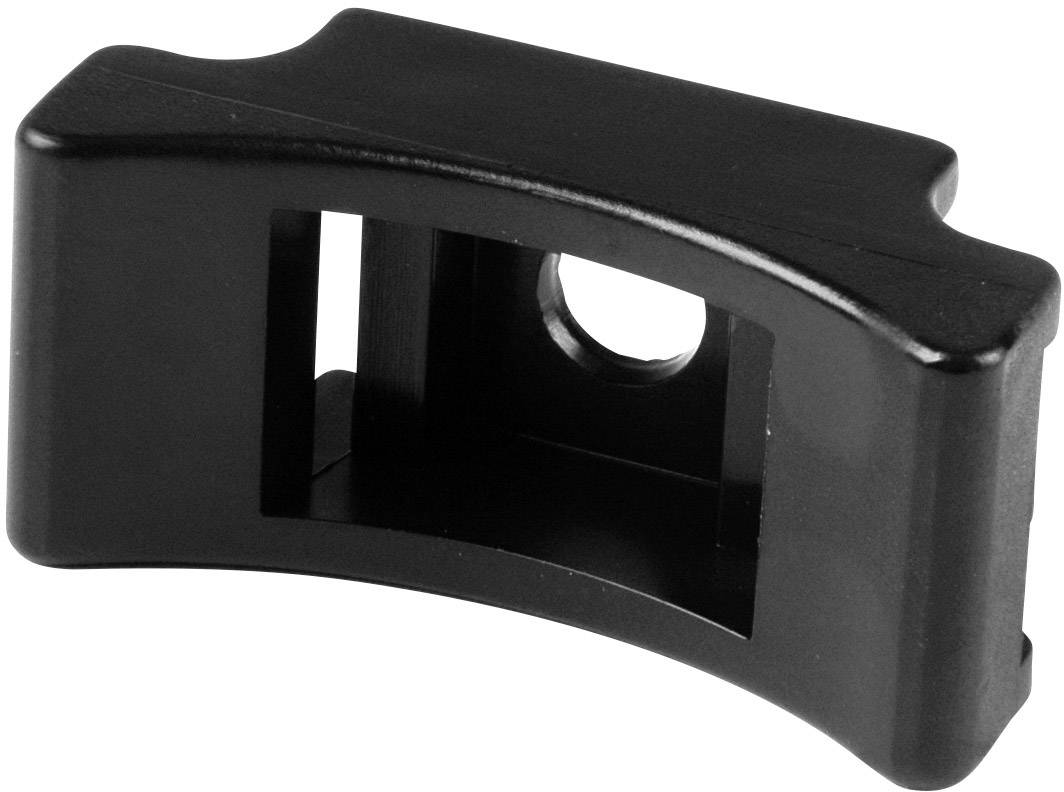

A black plastic component with a rectangular cut-out and a small hole, likely a connecting element or mounting bracket.

1/2

Image similar

Product type

Cable mount

Fastening method

Screw fixing

Rivets

Bundle Ø (max.)

13 mm

Material

Polyamide

Bundle Ø range

13 mm (max)

Datasheet (PDF)

HellermannTyton

Fast track dispatch on Tue 27 Oct

1274 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.88 / piece)

€ 0.88

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Mounting base 40x19 mm, black

Cable mount
Screw fixing, Rivets
Bundle Ø range 13 mm (max)

Technical specifications

Product type: Cable mount

Fastening method: Screw fixing
Rivets

Bundle Ø range: 13 mm (max)

Bundle Ø (max.): 13 mm

Material: Polyamide

Min. temperature: -40 °C

Max. temperature: +85 °C

Mounting Ø (max.): 6 mm

Content: 1 pc(s)

Manufacturer part #: 151-27202

Width: 19 mm

Height: 16.80 mm

RoHS-compliant: Yes

Type: LKCSF1-PA66-BK

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1996112 HellermannTyton LKCSF1-PA66-BK Cable mount Screw fixing, Rivets 151-27202 Bundle Ø range 13 mm (max) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1996112 HellermannTyton LKCSF1-PA66-BK Cable mount Screw fixing, Rivets 151-27202 Bundle Ø range 13 mm (max) 1 pc(s)

Description

Compact design with slight curvature. Provides a secure hold for the bundle. Easy installation with screw. These mounting bases are particularly suitable for a secure hold in case of vibrations wherever cables and wires are to be securely fastened or where cable bundles are to be laid. Due to the curved design, the cable bundle adapts optimally to the base and ensures a secure routing of the cables within the application

This text is machine translated.

Description

Compact design with slight curvature. Provides a secure hold for the bundle. Easy installation with screw. These mounting bases are particularly suitable for a secure hold in case of vibrations wherever cables and wires are to be securely fastened or where cable bundles are to be laid. Due to the curved design, the cable bundle adapts optimally to the base and ensures a secure routing of the cables within the application

This text is machine translated.
