Grey, block-shaped plastic component with two rectangular insertion slots; likely a part or connection for a technical device.

Grey, block-shaped plastic component with two rectangular insertion slots; likely a part or connection for a technical device.

Single component of a LEGO-style construction set, a grey connector with a broad base and two upright struts, against a white background.

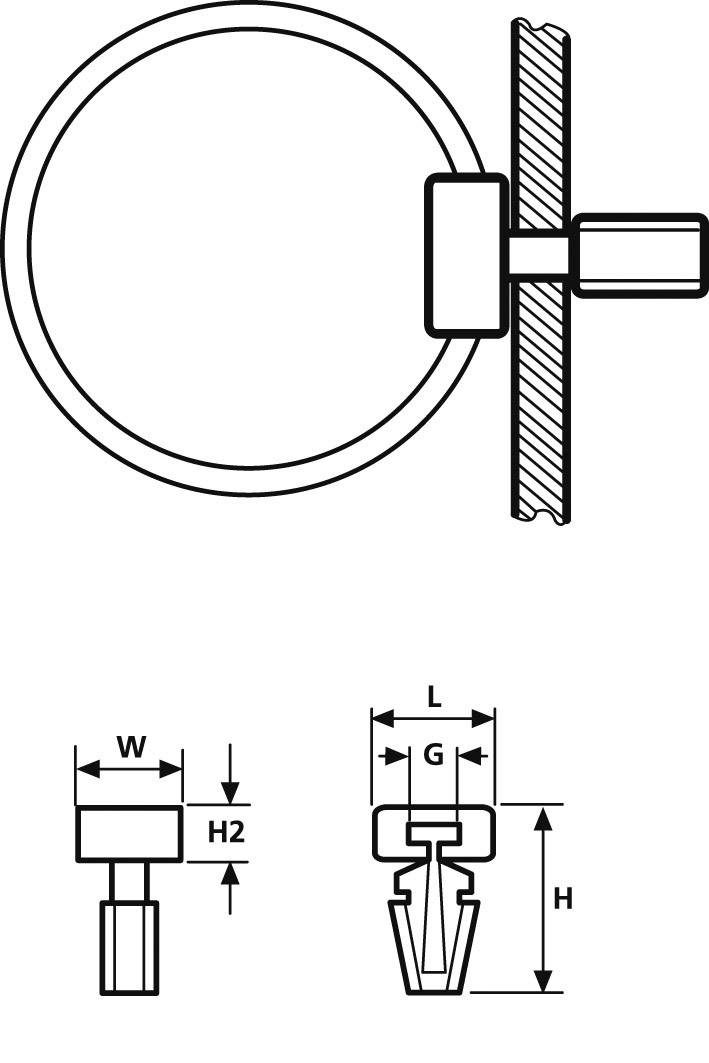

Technical drawing of a clamp with cross-sectional view. Dimensions are marked with letters L, G, W, H and H2.

1/3

HellermannTyton

Product type

Cable mount

Fastening method

Grommet routing

Material

Polyamide 6.6

Features

+ spring toggle

Max. cable tie width

5.2 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2651 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.26 / piece)

€ 1.82

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HellermannTyton TM1SF-N66-NA-C1 Cable mount 151-40119 + spring toggle Ecru 1 pc(s)

Ecru
Cable mount

Our service for you

Technical specifications

Flame-retardant according to UL94 V2
Plate thickness: 3.4 mm

Product type: Cable mount

Features: + spring toggle

Max. cable tie width: 5.2 mm

Fastening method: Grommet routing

Material: Polyamide 6.6

Min. temperature: -40 °C

Max. temperature: +85 °C

Mounting Ø (min.): 6.30 mm

Mounting Ø (max.): 6.30 mm

Factory colour: Ecru

Halogen-free: Yes

Content: 1 pc(s)

Manufacturer part #: 151-40119

Dimensions: (L x B x H x H2) 10.2 x 7.6 x 15.6 x 4.6 mm

RoHS-compliant: Yes

Type: TM1SF-N66-NA-C1

Material (details): Polyamide 6.6 (PA66)

Operating temperature: -40 - +85 ºC, short-term - +105 °C (500 h)

Documents & Downloads

Datasheet

Datasheet 531561 HellermannTyton TM1SF-N66-NA-C1 Cable mount 151-40119 + spring toggle Ecru 1 pc(s)

User & Safety Instructions

User & Safety Instructions 531561 HellermannTyton TM1SF-N66-NA-C1 Cable mount 151-40119 + spring toggle Ecru 1 pc(s)

Description

The fastening element is used to insert a cable tie in confined spaces. It is used in mass production, for example, where a simple and space-saving fixing is required.

Description

The fastening element is used to insert a cable tie in confined spaces. It is used in mass production, for example, where a simple and space-saving fixing is required.
