Name: Hensel 62000010 Junction box (L x W x H) 77 x 180 x 130 mm Grey-white (RAL 7035) IP66 (front bezel sealed) 1 pc(s)
Brand: Hensel
SKU: 1826910
Availability: BackOrder

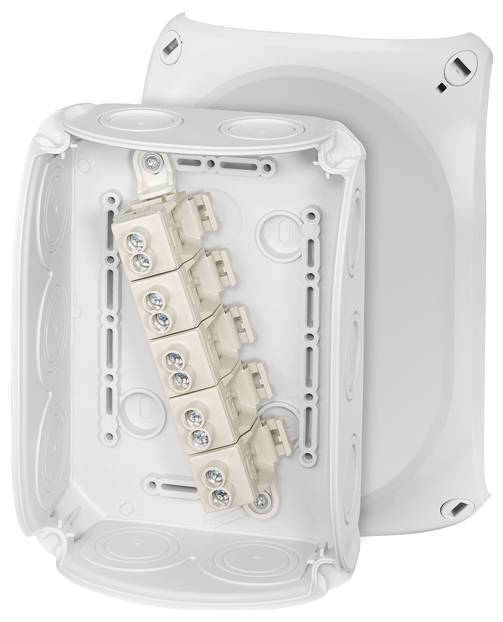

White, rectangular junction box with an open lid. Inside, five terminal-like connectors are arranged side by side.

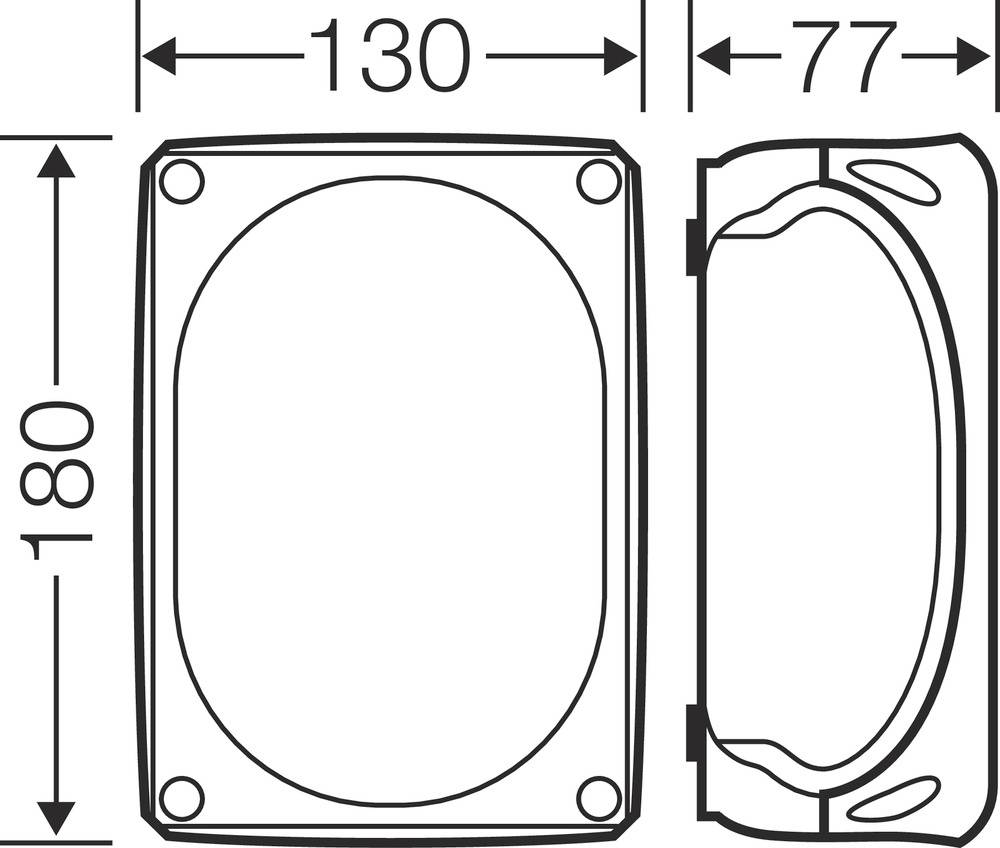

Technical drawing of a rectangular enclosure with dimensions: width 130 mm, depth 77 mm, height 180 mm, side and top view.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 27.99 / piece)

€ 27.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Hensel DK 1010 G-Rack Accessories

4-10 mm², Cu3~
With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
Two cable entries in the ground, sealing range Ø 9,0-20,0 mm

Technical specifications

Product type: Junction box

Factory colour: Grey-white (RAL 7035)

: IP66 (front bezel sealed)

Dim: (L x W x H) 77 x 180 x 130 mm

Content: 1 pc(s)

Material: PP

Width: 180 mm

Height: 130 mm

Length: 77 mm

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Dim

Factory colour

IP rating

Hensel 62000010 Junction box (L x W x H) 77 x 180 x 130 mm Grey-white (RAL 7035) IP66 (front bezel sealed) 1 pc(s)

Item no:1826910

Available soon

Conrad Electronic

This article

(L x W x H) 77 x 180 x 130 mm

Grey-white (RAL 7035)

IP66 (front bezel sealed)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 27.99^*

Hensel 6000037 Junction box (L x W x H) 49 x 88 x 88 mm Grey-white (RAL 7035) 1 pc(s)

Item no:1826885

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

(L x W x H) 49 x 88 x 88 mm

Grey-white (RAL 7035)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Hensel 6000038 Junction box (L x W x H) 49 x 88 x 88 mm Grey-white (RAL 7035) IP54 1 pc(s)

Item no:1826959

Fast track dispatch on Thu 29 Oct

9 Piece(s)Conrad Electronic

(L x W x H) 49 x 88 x 88 mm

Grey-white (RAL 7035)

IP54

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Hensel 62000001 Junction box (L x W x H) 62 x 93 x 93 mm Grey-white (RAL 7035) IP66 1 pc(s)

Item no:1826914

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

(L x W x H) 62 x 93 x 93 mm

Grey-white (RAL 7035)

IP66

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Hensel 62000004 Junction box (L x W x H) 70 x 104 x 104 mm Grey-white (RAL 7035) IP66 1 pc(s)

Item no:1826974

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

(L x W x H) 70 x 104 x 104 mm

Grey-white (RAL 7035)

IP66

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Hensel 62000016 Junction box (L x W x H) 112 x 255 x 205 mm Grey-white (RAL 7035) IP65, IP55 1 pc(s)

Item no:1826909

Fast track dispatch on Thu 29 Oct

6 Piece(s)Conrad Electronic

(L x W x H) 112 x 255 x 205 mm

Grey-white (RAL 7035)

IP65

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

Hensel 62000041 Junction box (L x W x H) 62 x 93 x 93 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)

Item no:1826929

Fast track dispatch on Thu 29 Oct

21 Piece(s)Conrad Electronic

(L x W x H) 62 x 93 x 93 mm

Grey-white (RAL 7035)

IP66

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 11.99^*

Hensel 62000042 Junction box (L x W x H) 62 x 93 x 93 mm Black IP66, IP67, IP69 1 pc(s)

Item no:1826928

Fast track dispatch on Thu 29 Oct

24 Piece(s)Conrad Electronic

(L x W x H) 62 x 93 x 93 mm

Black

IP66

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Hensel 62000043 Junction box (L x W x H) 62 x 93 x 93 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)

Item no:1826930

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

(L x W x H) 62 x 93 x 93 mm

Grey-white (RAL 7035)

IP66

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Hensel 62000045 Junction box (L x W x H) 70 x 104 x 104 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)

Item no:1826982

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

(L x W x H) 70 x 104 x 104 mm

Grey-white (RAL 7035)

IP66

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

Documents & Downloads

Datasheet

Datasheet 1826910 Hensel 62000010 Junction box (L x W x H) 77 x 180 x 130 mm Grey-white (RAL 7035) IP66 (front bezel sealed) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1826910 Hensel 62000010 Junction box (L x W x H) 77 x 180 x 130 mm Grey-white (RAL 7035) IP66 (front bezel sealed) 1 pc(s)

Description

Suitable for interior rooms and the protected installation outdoors according to DIN VDE 0100 Part 737.

This text is machine translated.

Features

Terminal with 2 clamping points per pin
5-pin for each pin, 6 x 2.5 mm² sol, 4 x 4 mm² sol, 4 x 6 mm² sol, 4 x 10 mm² sol, 2 x 16 mm² s
With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
Two cable entries in the ground, sealing range Ø 9,0-20,0 mm
Lid without accessories sealable
Cover holding band and outdoor brackets for wall mounting included
Color: gray, RAL 7035
To close the open membranes plug-in cable supports type EDK. Protection class IP66
Rated insulation voltage Ui=690 V a c/d.c.
Rated current 63 A

Description

Suitable for interior rooms and the protected installation outdoors according to DIN VDE 0100 Part 737.

This text is machine translated.

Features

Terminal with 2 clamping points per pin
5-pin for each pin, 6 x 2.5 mm² sol, 4 x 4 mm² sol, 4 x 6 mm² sol, 4 x 10 mm² sol, 2 x 16 mm² s
With elastic sealing membranes, residue for cable entry, sealing range Ø 9,0-21,0 mm
Two cable entries in the ground, sealing range Ø 9,0-20,0 mm
Lid without accessories sealable
Cover holding band and outdoor brackets for wall mounting included
Color: gray, RAL 7035
To close the open membranes plug-in cable supports type EDK. Protection class IP66
Rated insulation voltage Ui=690 V a c/d.c.
Rated current 63 A
