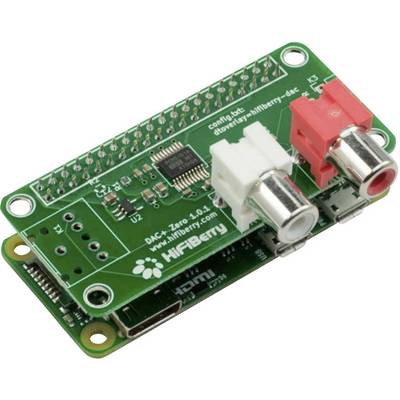

HiFiBerry DAC+ Zero Raspberry Pi® PCB sound card Compatible with (development kits): Raspberry Pi® Zero
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
Only 2 Piece(s) available
Highlights & Details
HiFi Berry DAC+ Zero sound card
- High-quality D/A converter
- Ideal for small music playback devices
- Can be used with all rasp berrymodels from B+
Technical specifications
- Product type
Raspberry Pi® PCB sound card
- Height
25 mm
- Width
65 mm
- Compatible with
Raspberry Pi® Zero
- Depth
30 mm
Documents & Downloads
Datasheet
Datasheet 1893999 HiFiBerry DAC+ Zero Raspberry Pi® PCB sound card Compatible with (development kits): Raspberry Pi® Zero
User & Safety Instructions
User & Safety Instructions 1893999 HiFiBerry DAC+ Zero Raspberry Pi® PCB sound card Compatible with (development kits): Raspberry Pi® Zero
Description
HiFiBerry DAC+ Zero is a high quality D/A converter for Raspberry Pi Zero, but it also works with all newer models with 40-pin GPIO connector. It was developed for price-conscious users, as a cost-effective alternative for the HiFiBerry DAC+ for all those cases, in which the many features of the HiFiBerry DAC+ are not needed.
Technical characteristics:
• This is a dedicated 192kHz/24bit high-quality DAC with improved sound quality (based on a Burr-Brown D/A converter)
• can be connected directly to the Raspberry Zero; no additional cables are required
• is delivered as a prefabricated kit. Simply connect to the Raspberry Pi! On Raspberry Pi Zero, the GPIO pin strip must be soldered on.
• compatible with Raspberry Pi models Zero, A+,B+, 2B and 3B
• Power comes directly from the Raspberry Pi; no power supply required
• low-interference voltage regulator for optimal audio performance
• without mounting material (i.e. spacer, 40-pin strip for Raspberry Pi Zero)
• Without hardware-based volume control – but most programs include volume control
Dimensions 3.0 x 6.5 x 2.5 cm
This text is machine translated.
Technical characteristics:
• This is a dedicated 192kHz/24bit high-quality DAC with improved sound quality (based on a Burr-Brown D/A converter)
• can be connected directly to the Raspberry Zero; no additional cables are required
• is delivered as a prefabricated kit. Simply connect to the Raspberry Pi! On Raspberry Pi Zero, the GPIO pin strip must be soldered on.
• compatible with Raspberry Pi models Zero, A+,B+, 2B and 3B
• Power comes directly from the Raspberry Pi; no power supply required
• low-interference voltage regulator for optimal audio performance
• without mounting material (i.e. spacer, 40-pin strip for Raspberry Pi Zero)
• Without hardware-based volume control – but most programs include volume control
Dimensions 3.0 x 6.5 x 2.5 cm
This text is machine translated.
Scope of delivery
- HiFiBerry board
