Raspberry Pi® RPI CM4 IO BOARD I/O module Compatible with (development kits): Raspberry Pi®
EAN:
Part number:
Item no:
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
Only 1 Piece(s) available

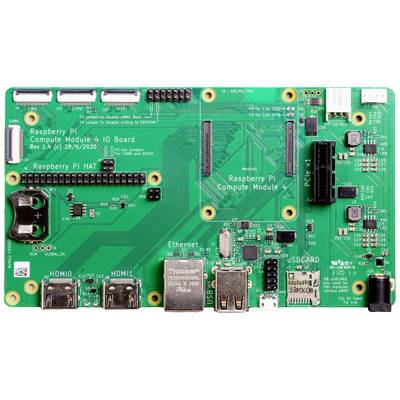

Raspberry Pi® Compute Module 4 IO Board
Technical specifications
- Product type
I/O module
- Suitable for
Raspberry Pi®
- Interfaces
Ethernet
- Tool type
I/O module
- Internal ports
GPIO (40-pin)
- Compatible with
Raspberry Pi®
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2332162 Raspberry Pi® RPI CM4 IO BOARD I/O module Compatible with (development kits): Raspberry Pi®
Description
The Compute Module 4 IO board represents each interface of Raspberry Pi Compute Module 4 and provides a development platform and basic board design to date with the most powerful Raspberry Pi Compute Module.
This text is machine translated.
This text is machine translated.
Features
- External power connector (+12V, +5V)
- 2 x HDMI 2.0 ports in standard size
- 2 x USB 2.0 ports, with multi-pin connector for two additional ports
- Gigabit Ethernet RJ45 with PoE support
- Micro-USB socket for updating the Compute Module 4
- MicroSD card sockets for Compute Module 4 Lite variants (without eMMC)
- PCIe Gen 2 x1 socket
- Standard fan connector
- 2 x MIPI-DSI display FPC connectors (22-pin cable in 0.5 mm grid)
- 2 x MIPI-CSI-2 camera FPC connectors (22-pin cable in 0.5 mm grid)
- Standard Raspberry Pi HAS connector
- Real-time clock with battery socket and the ability to wake up the Compute Module 4
- with different jumpers to disable specific functions, such as wireless connection, EEPROM writing
