Name: HiKOKI NR3665DAW6Z NR3665DAW6Z Cordless nail gun w/o battery, w/o charger, incl. case, incl. safety goggles
Brand: HiKOKI
SKU: 3452126
Availability: BackOrder

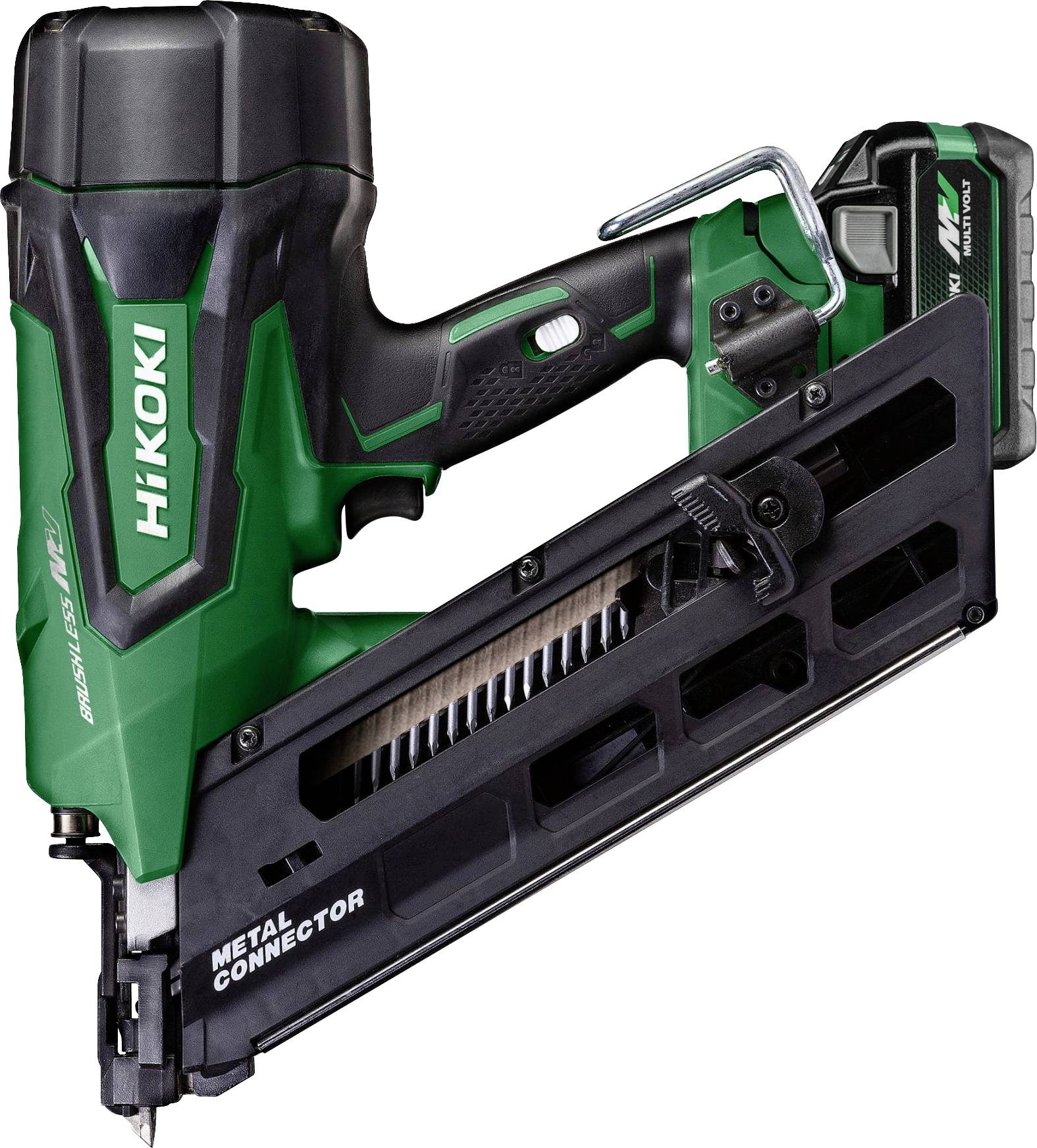

Green and black cordless nail gun labeled 'HiKOKI'. Designed for metal connectors, featuring a battery pack and ergonomic handle.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 565.00 / piece)

€ 565.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Height: 325 mm
Magazine angle 34 °
Depth adjustment: Tool free

Product type: Cordless nail gun

Features: w/o battery
w/o charger
incl. case
incl. safety goggles

Voltage: 36 V

Capacity (mAh, Ah): 2.5 Ah

Max. nail length: 60 mm

Nail capacity: 31

Blow count (max.): 120 /min

Technology: Li-ion

No. of power packs included: 0

Dim: (L x W) 346 mm x 127 mm

Length: 346 mm

Width: 127 mm

Weight: 4.8 kg

Battery voltage: 36 V

Power supply (LOV): rechargeable

Documents & Downloads

Datasheet

Datasheet 3452126 HiKOKI NR3665DAW6Z NR3665DAW6Z Cordless nail gun w/o battery, w/o charger, incl. case, incl. safety goggles

User & Safety Instructions

User & Safety Instructions 3452126 HiKOKI NR3665DAW6Z NR3665DAW6Z Cordless nail gun w/o battery, w/o charger, incl. case, incl. safety goggles

Features

Strap-tite probe tip for accurate and reliable insertion of nails in various types of metal connectors
Sloping lock for safe, precise and straight driving of nails in metal connectors
Increase efficiency – with up to 2 nails per second up to six times faster than manual nail or screw
HiKOKI air spring drive system for gasless, emission-free operation with stable power and pleasant pneumatic-like behavior, without the inconvenience and risks of hoses or compressors
Drives in up to 900 nails per battery charge (MV-battery/2.5 Ah)
Dry fire lockout system: Lock against 'dry shot' when only 7-8 nails are left in the magazine
2-stage safety switch to prevent unintended triggering and automatic shut-off after 30 minutes of inactivity
This text is machine translated.

Scope of delivery

Safety glasses
Allen key for M4 screw
Allen key for M5 screw
Stackable system case

Description

Features

Strap-tite probe tip for accurate and reliable insertion of nails in various types of metal connectors
Sloping lock for safe, precise and straight driving of nails in metal connectors
Increase efficiency – with up to 2 nails per second up to six times faster than manual nail or screw
HiKOKI air spring drive system for gasless, emission-free operation with stable power and pleasant pneumatic-like behavior, without the inconvenience and risks of hoses or compressors
Drives in up to 900 nails per battery charge (MV-battery/2.5 Ah)
Dry fire lockout system: Lock against 'dry shot' when only 7-8 nails are left in the magazine
2-stage safety switch to prevent unintended triggering and automatic shut-off after 30 minutes of inactivity
This text is machine translated.
