Name: Hobbywing Ezrun MAX8 G2S Model car brushless speed control Load (Amp max.): 1050 A Motor limit (turns): 4278
Brand: Hobbywing
SKU: 3400144
Availability: BackOrder

Electronic speed controller with heatsink and fan, marked with 'EZRUN MAX8'. Multicoloured cables for connection.

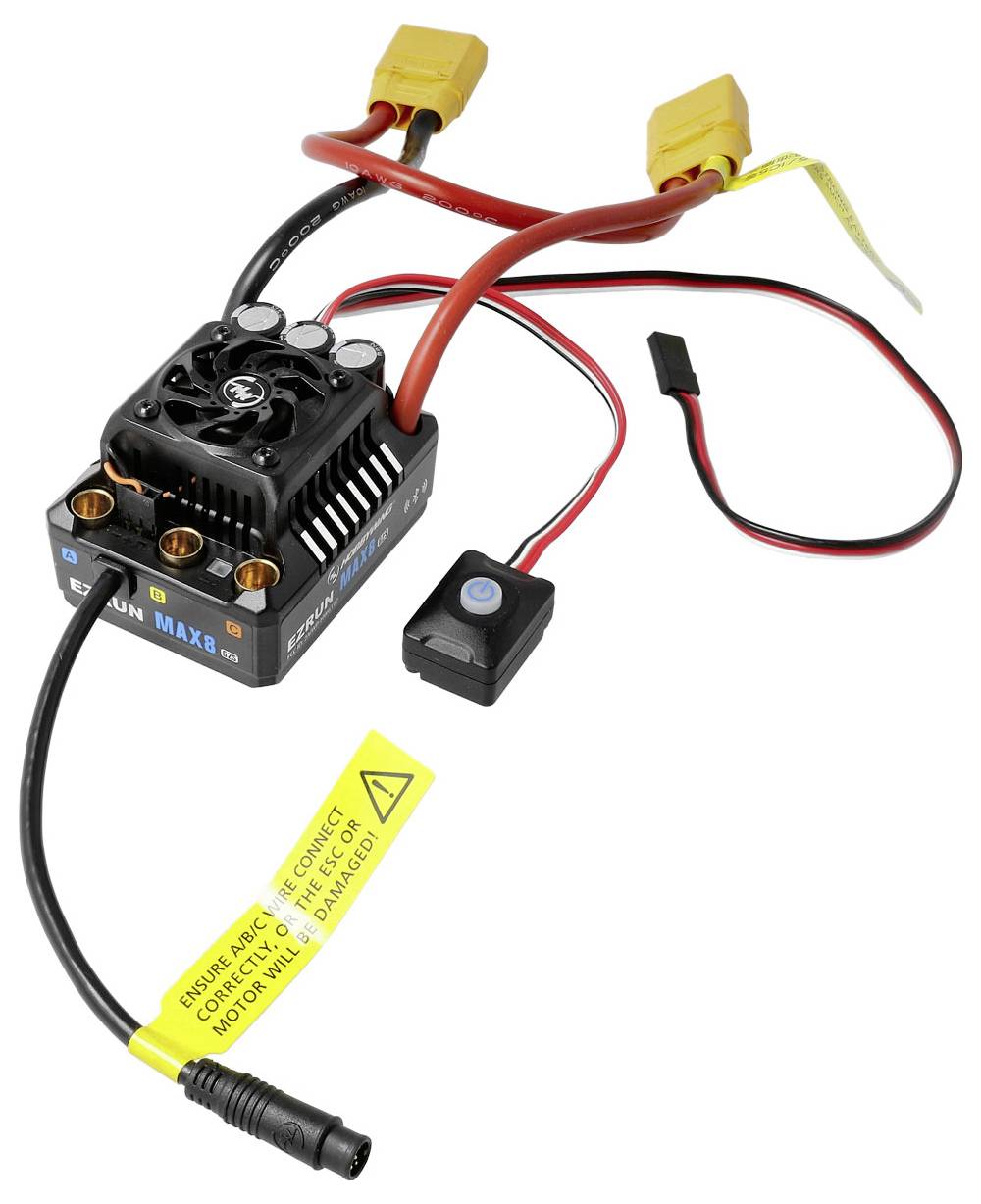

An electronic speed controller with multiple cables and connectors, suitable for remote-controlled model vehicles.

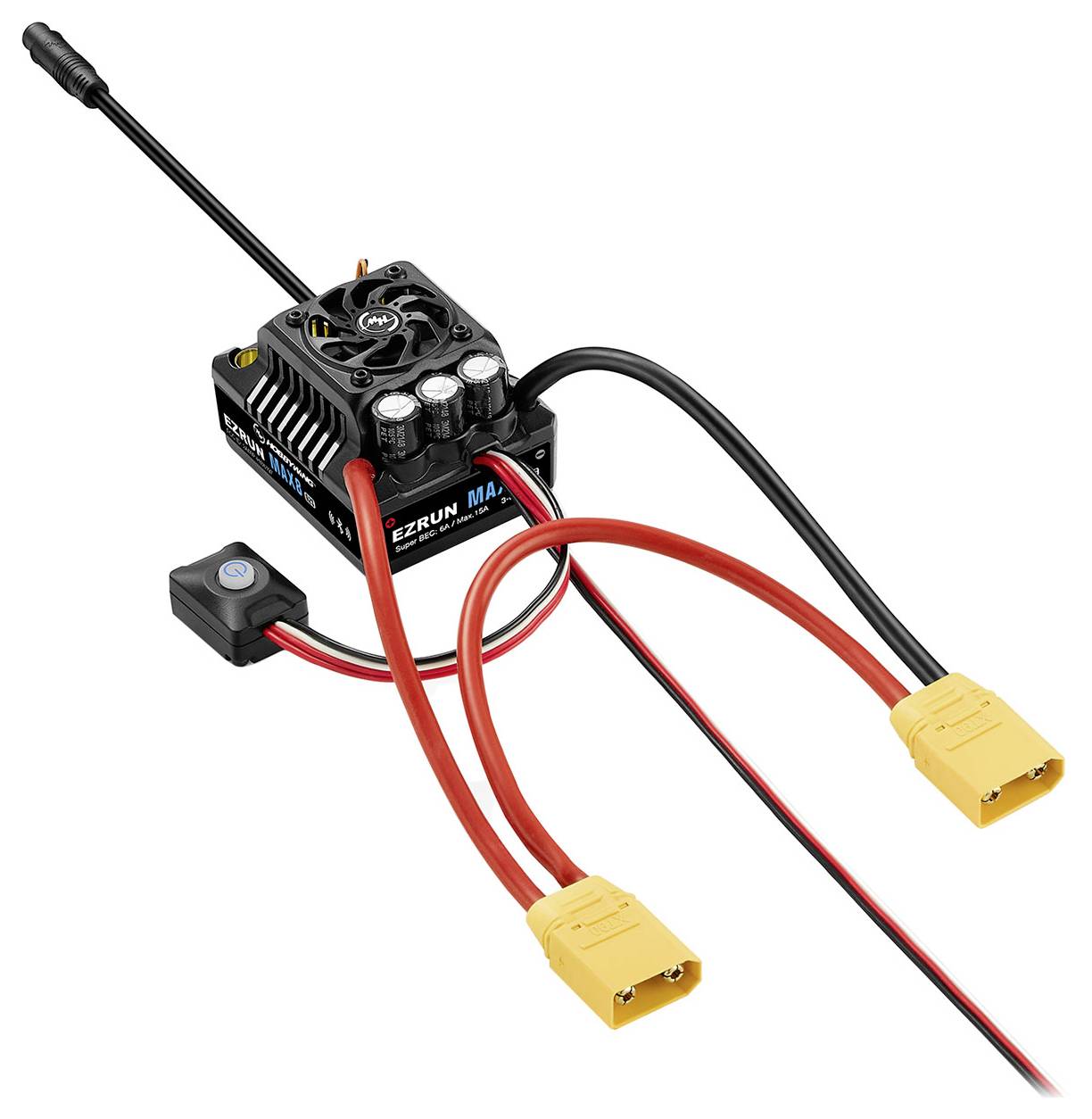

An electronic controller for remote-controlled vehicles with multiple cable outputs and a fan on the top surface.

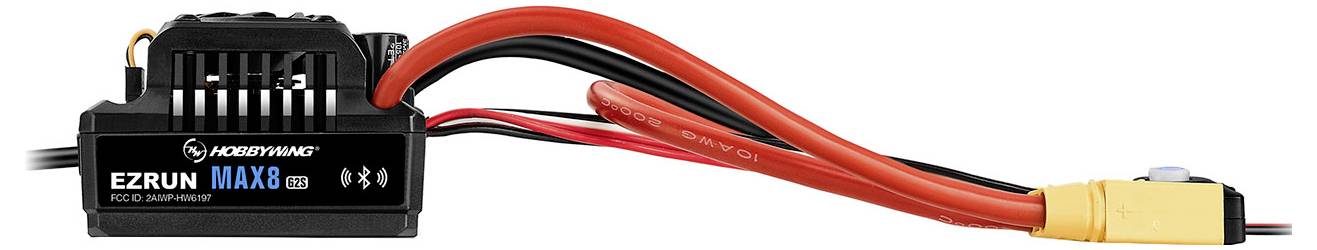

Electronic speed controller 'EZRUN MAX8 G2' by Hobbywing with orange-red cables and yellow connector for RC models.

1/4

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Hobbywing Ezrun MAX8 G2S controller 160 amp, 3-6s LiPo, BEC 6A

Directly programmable with your smartphone thanks to the built-in Bluetooth signal
New sensor cable design for protection against water and dust
In-built Super-BEC
Includes 'Turbo Timing' function
Real-time data recording for recording the max. Controller and motor temperature, motor speed and other values
Various protective functions: Overheating protection, undervoltage switch-off, fail-safe, current protection

Technical specifications

Input voltage 3-6S LiPo
Motor limit: 4S <= 3000kV, 6S: <=2400kV, 4278 motor
Fan via the BEC
XT90 plug, 6.0mm Bullet-socket
Programs include iOS/Android Smartphone
Suitable vehicles: 1/8 On-Road, Short Course Truck, Monster Truck

Product type: Model car brushless speed control

Dim: (L x W x H) 60 x 45 x 40.5 mm

Weight: 192 g

Connector system: XT90
6 mm socket

BEC data: 6V / 7.4V / 8.4V at 6A (switch mode)

Load (max.): 1050 A

Permanent current: 160 A

Motor limit (turns): 4278

Manufacturer part #: 30103205

Width: 45 mm

Height: 40.5 mm

Length: 60 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400144 Hobbywing Ezrun MAX8 G2S Model car brushless speed control Load (Amp max.): 1050 A Motor limit (turns): 4278

Description

The Ezrun MAX8 G2S controller is as powerful as the MAX8 G2. Suitable for all 1:8 on-roader and trucks and also versatile in the programming options. The only difference is in the programming itself, because the G2S has an integrated Bluetooth signal, which makes any accessories unnecessary during the programming. All WAS you need is a smartphone with the Hobbywing APP "HWLink2".

Due to the dynamic specifications of the controller, modern requirements of power-hungry drivers are perfectly met. The strong output power together with excellent low-speed linearity in full-sensing mode are the top arguments that speak for the Ezrun MAX8 G2S. Thanks to the in-built 32° turbo timings, you can increase the maximum speed even by 25% if you use a suitable engine such as the Ezrun 4278SD. Enjoy the drive and withstand any weather. Because the implementation of the IP-67 standard in construction makes the controller in addition excellent dust and waterproof. You get full security only with use of a motor, which can be connected via the newly developed sensor cable. Equipped with smart technology developed by Hobbywing, the MAX8 G2S can also effectively increase the power at a low temperature. Whole 25°C less than in comparison to the regular MAX8 controller are thus possible and failures thus become less likely.

This text is machine translated.
