Hobbywing Platinum Pro 150A V5.1 Model aircraft brushless motor controller Load (Amp max.): 180 A
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
14 days return policy included
Technical specifications
- Input voltage 3-8s
- Cable battery/motor: 1x 10AWG (red, black), 3x 12AWG (black)
- Plug battery/motor: 4.0mm gold plug
- Programming: HW30502001 LCD Programming box, HW30850400 OTA Programming module
- Applications:520-580 electric helicopters (main rotor length 520-580mm)
- Product type
Model aircraft brushless motor controller
- Permanent current
150 A
- Dim
(L x W x H) 83 x 37 x 23 mm
- Load (max.)
180 A
- Weight
150 g
- BEC data
5-12V @ 10A (switch mode)
- Width
37 mm
- Height
23 mm
- Length
83 mm
- Motor connector system
4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400171 Hobbywing Platinum Pro 150A V5.1 Model aircraft brushless motor controller Load (Amp max.): 180 A
Description

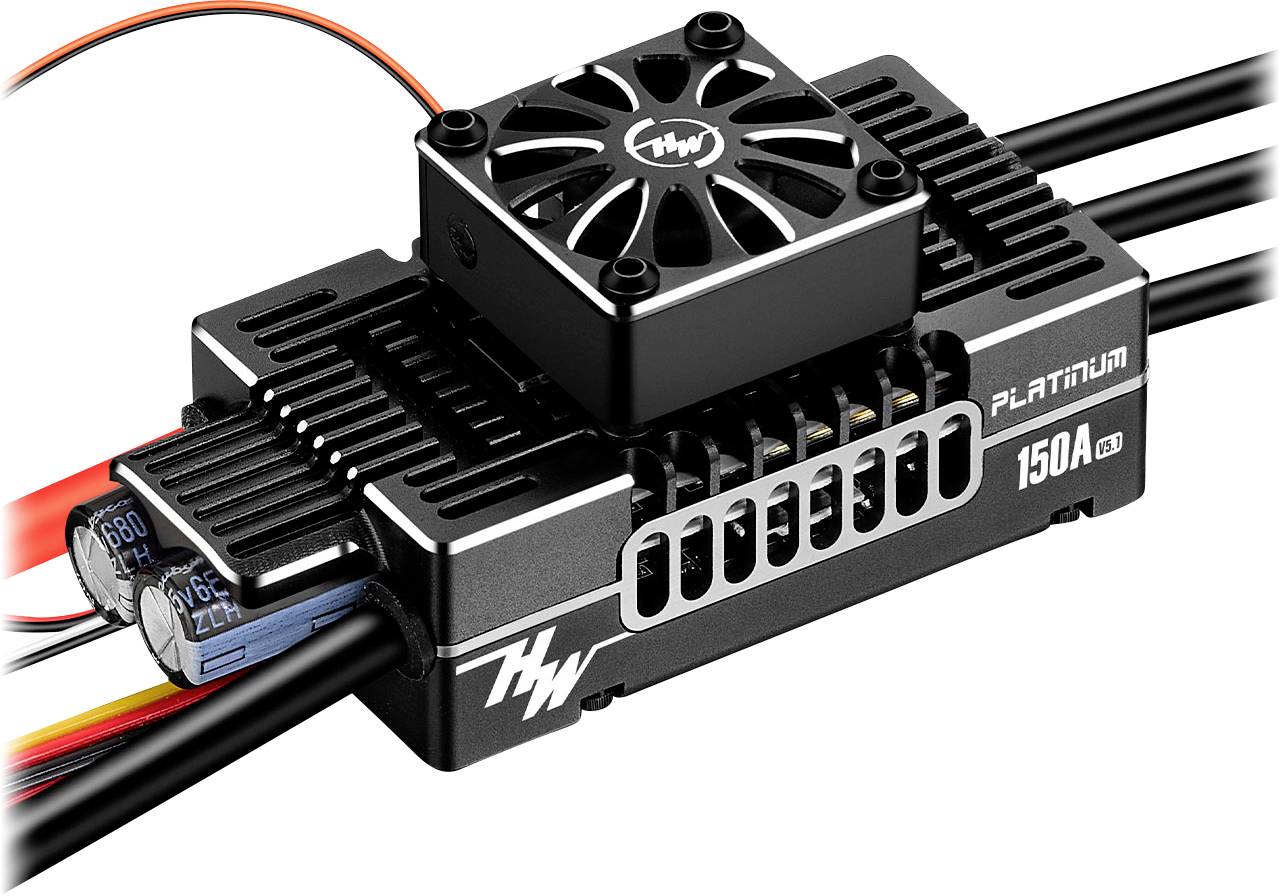

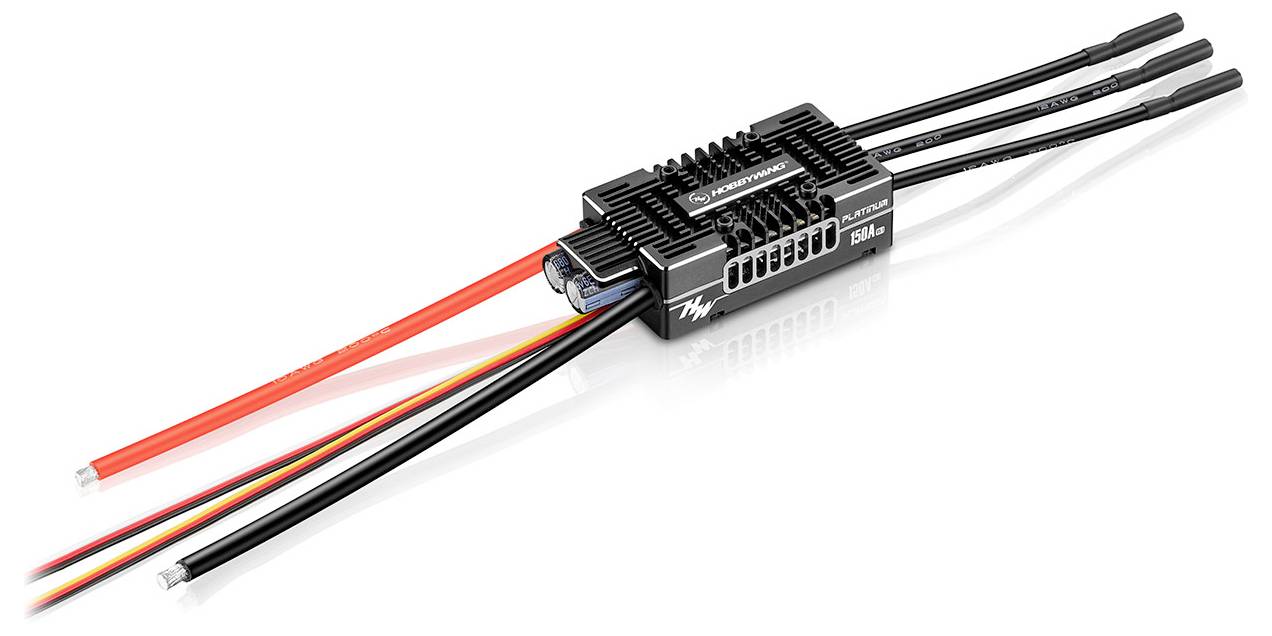

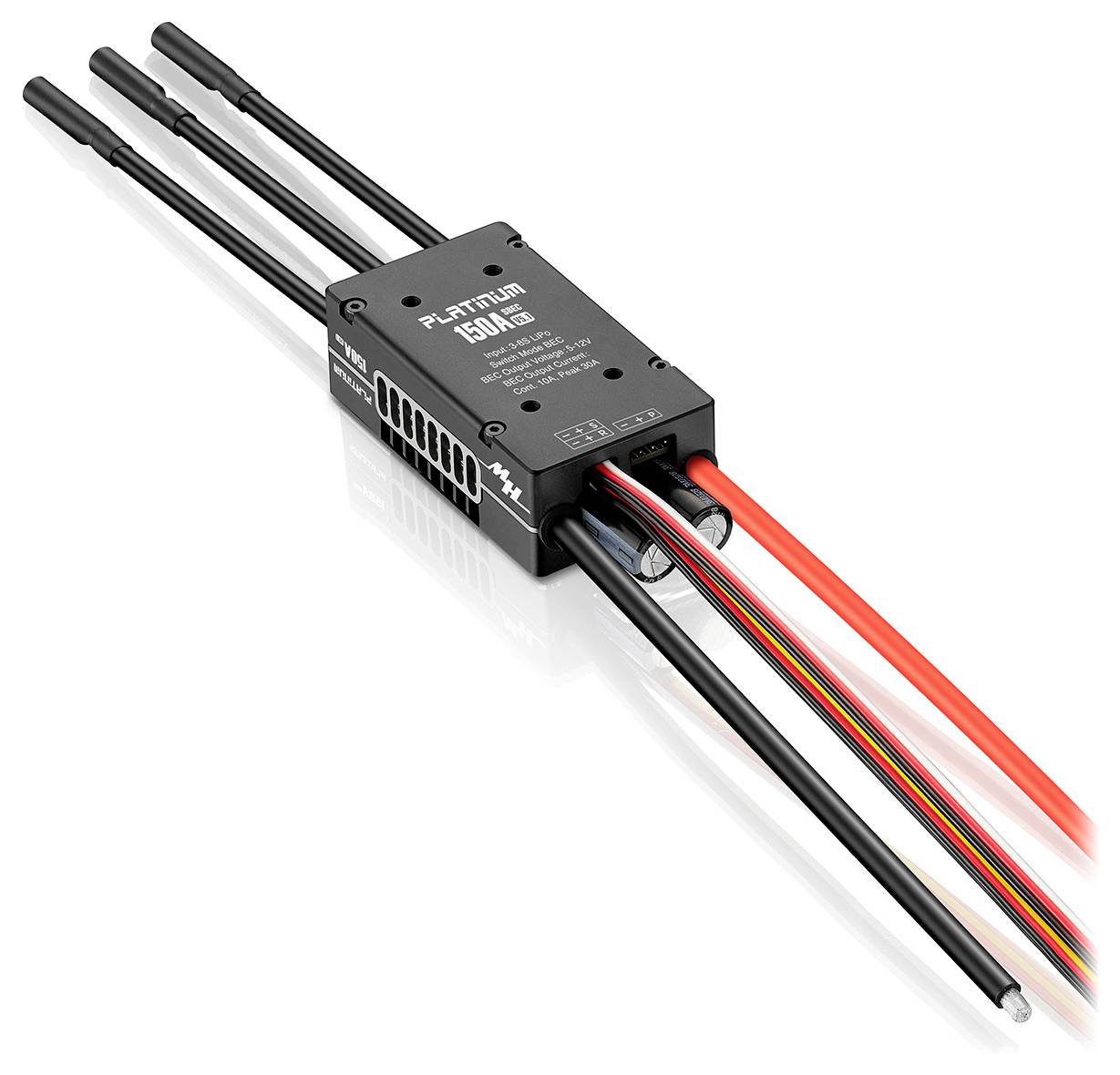

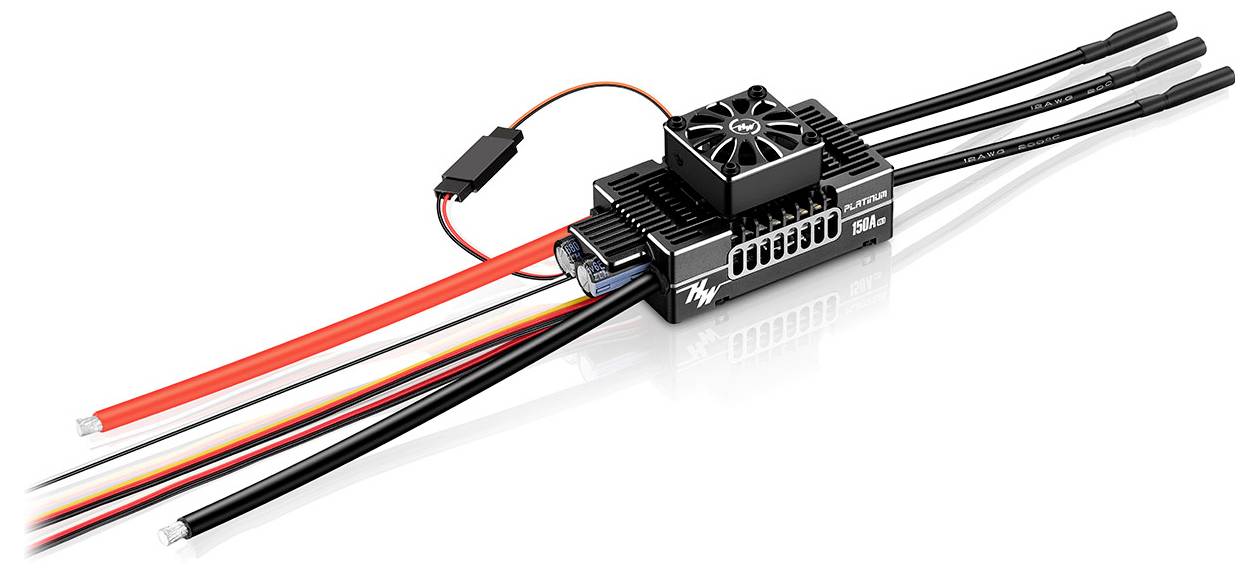

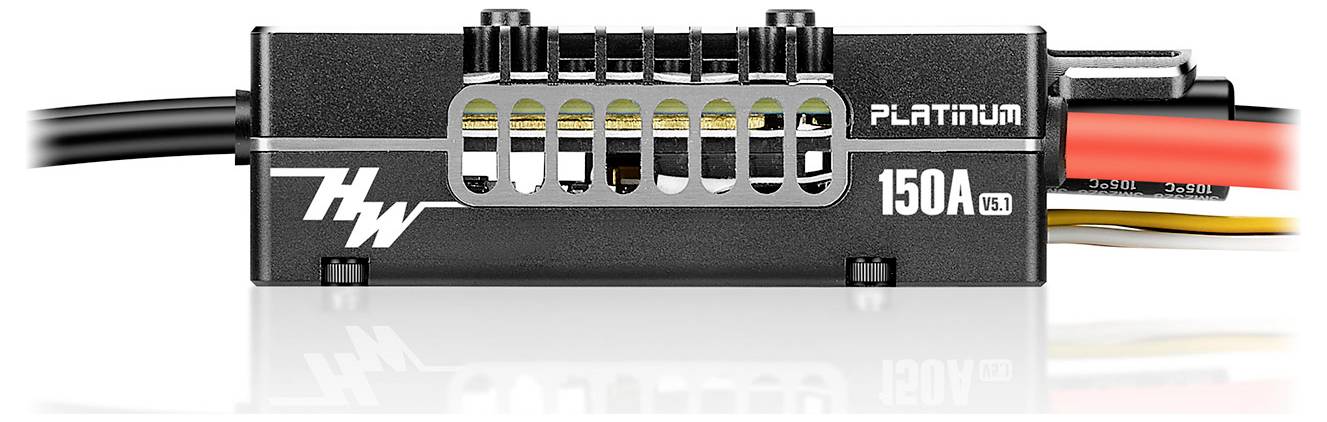

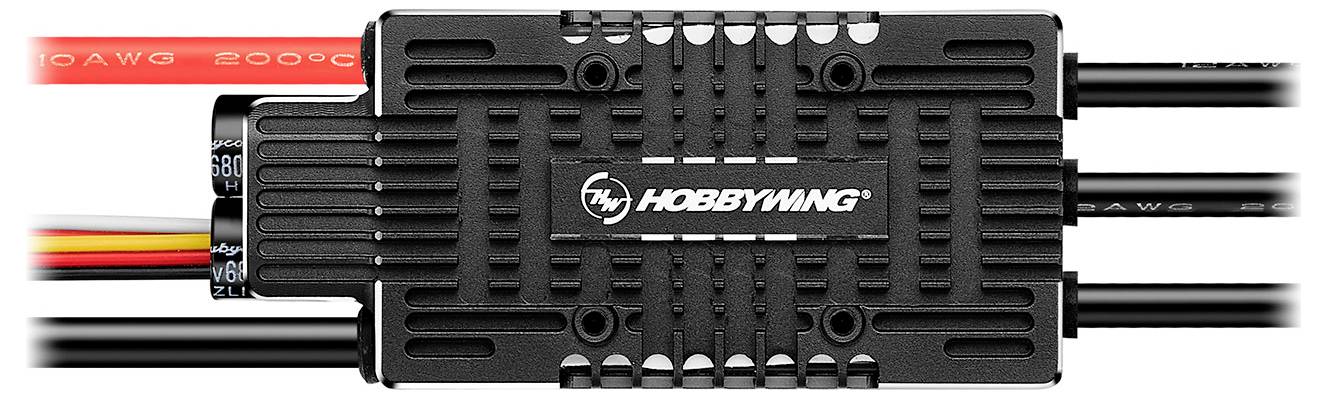

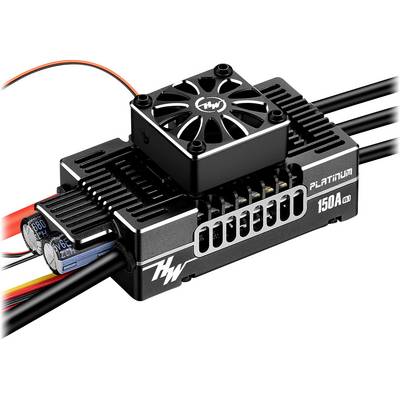

The Platinum V5.1 150A is the ideal companion for electrical helicopter and rigid wing models. Equipped with the latest technology, it offers a variety of protective devices to ensure a safe flying experience. New in the version 5.1 is the revised and switchable BEC, which supports from now on 5 to 12 Volt. As compared to the previous version of the controller the speed accuracy algorithm makes the Platinum 150A more powerful and reliable. The adjustable sensitivity for a constant speed enables each pilot to easily find a setting that matches the own flying style and the current flight conditions.
The special design also improves the air circulation in such a way that the operating temperature does not reach a critical level. Even at first glance one can recognize the open design of the controller. The additional use of heat-conducting tape and an additional cooling element inside thus provides for an extension of the life-span and improvement of the heat dissipation at the otherwise sensitive external capacitors.
This text is machine translated.
The special design also improves the air circulation in such a way that the operating temperature does not reach a critical level. Even at first glance one can recognize the open design of the controller. The additional use of heat-conducting tape and an additional cooling element inside thus provides for an extension of the life-span and improvement of the heat dissipation at the otherwise sensitive external capacitors.
This text is machine translated.
Features
- Improved switch mode BEC with 5-12V instead of up to 8 V.
- The 32-bit processor and an algorithm for precise speed determination provide even more power
- Now supports flight models from 520 to 580 instead of previously 550 to 580
- Compatible with Mikado VBar Control and VBar Telemetry Ready, etc.
- Equipped with "DEO" (Driving Efficiency Optimization) for best control characteristics and performance
- Efficient cooling with ventilation slots on two sides
- Multiple safety functions
