Name: Hobbywing Xerun XD10 Pro Drift Model car brushless speed control Load (Amp max.): 800 A Motor limit (turns): 8.5
Brand: Hobbywing
SKU: 3400155
Availability: BackOrder

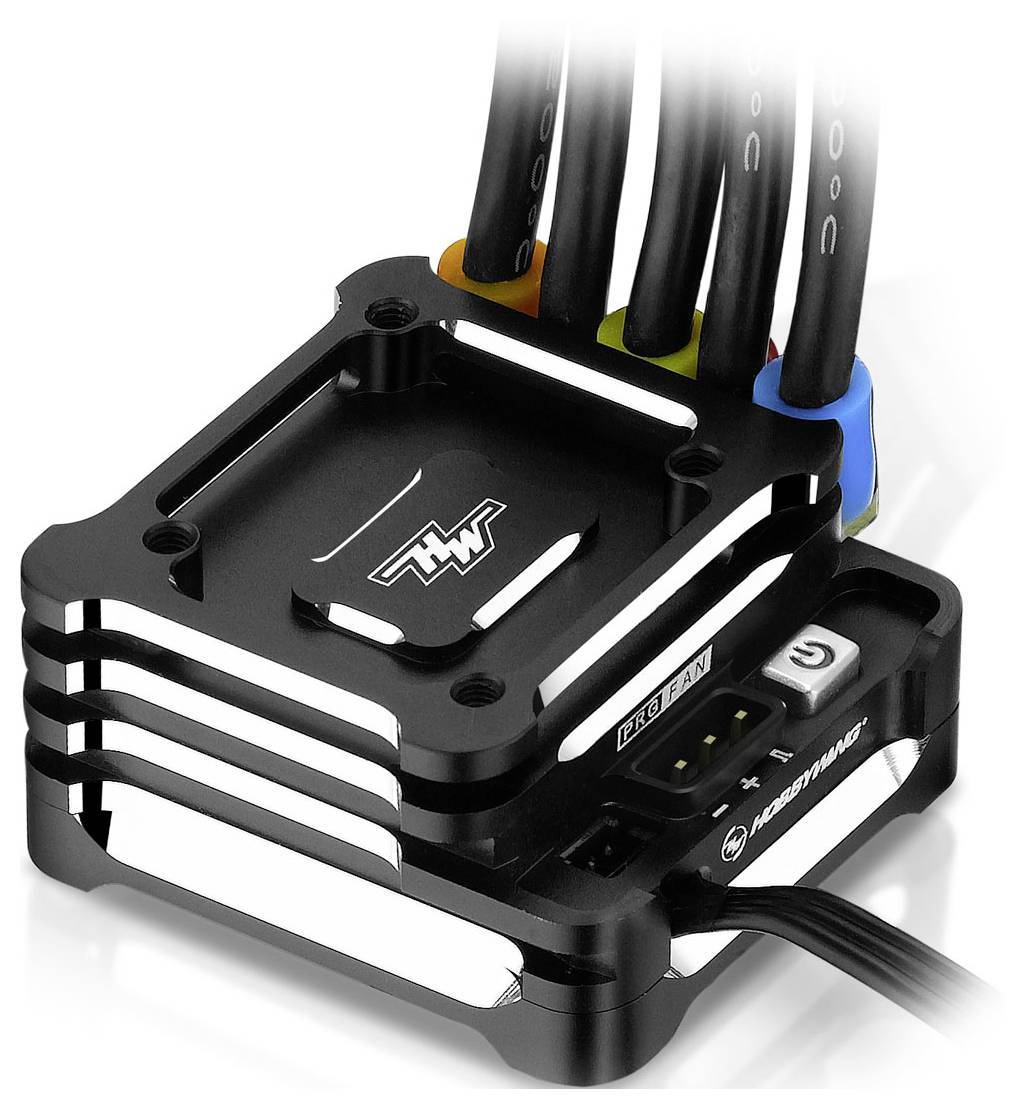

A black electronic speed controller (ESC) with multiple connected cables on top; inscription 'HW'.

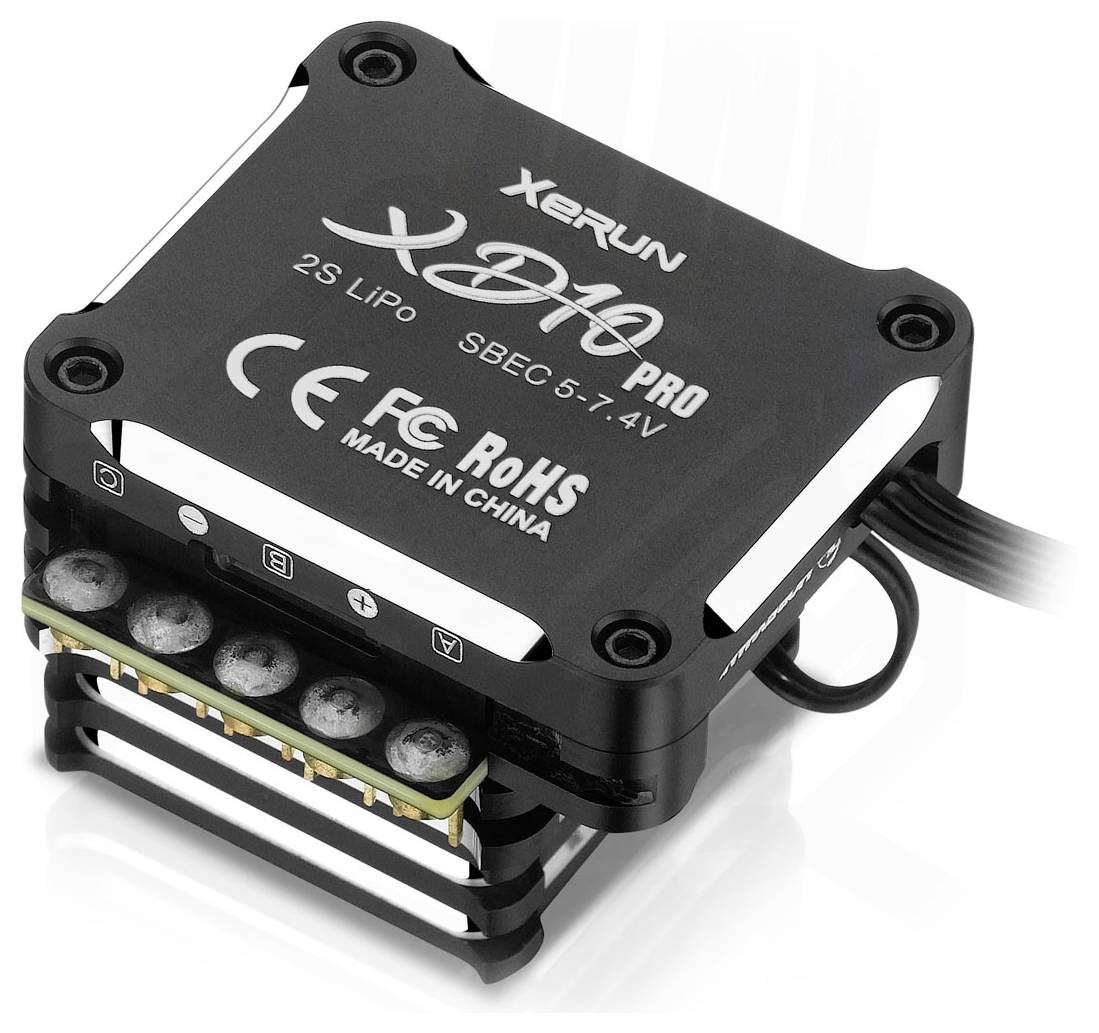

Black electronic component with label 'XERUN XR10 PRO', suitable for 2S LiPo, SBE-C 5-7.4V, manufactured in China.

1/3

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Input voltage: 2S Lipo / 2-4 cells NiMH
Motor types: 3650 brushless motors at 2S LiPo/6S NiMH: 8.5T
Applications: 1/10 drift

Product type: Model car brushless speed control

Dim: (L x W x H) 41 x 35 x 32 mm

Weight: 95 g

BEC data: 5V - 7.4V at 5A (in 0.1V steps)

Load capacity (1s / 30 s / 5 min): 800 A

Load (max.): 800 A

Permanent current: 100 A

Motor limit (turns): 8.5

No. of NiCd/NiMH batteries: 2-4

Manufacturer part #: 30112614

No. of LiPo cells: 2

Width: 35 mm

Height: 32 mm

Length: 41 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400155 Hobbywing Xerun XD10 Pro Drift Model car brushless speed control Load (Amp max.): 800 A Motor limit (turns): 8.5

Description

The Xerun XD10 Pro-regulator provides for the correct drift in the curve. With its stylish aluminum fan the controller always remains cool even during the hottest drives. And the optimal performance is also supported by the ultra-soft 13AWG silicon cables. Thanks to its low resistance and flexibility, these are not a problem.

This text is machine translated.

Features

Built-in Switch Mode-BEC
Over 30 parameters for personal setting
Variable frequency control of PWM and brake frequencies
Various protective functions before: Reverse polarity, overheating, undervoltage switch-off, signal loss
Data logging of temperature, number of revolutions, etc.
Firmware upgrades are possible, so that you are always up to date

Description

Features

Built-in Switch Mode-BEC
Over 30 parameters for personal setting
Variable frequency control of PWM and brake frequencies
Various protective functions before: Reverse polarity, overheating, undervoltage switch-off, signal loss
Data logging of temperature, number of revolutions, etc.
Firmware upgrades are possible, so that you are always up to date
