Buy Horizon Educational FCJJ-24 Horizon Energy Monitor Renewable Energies Pre-assembled

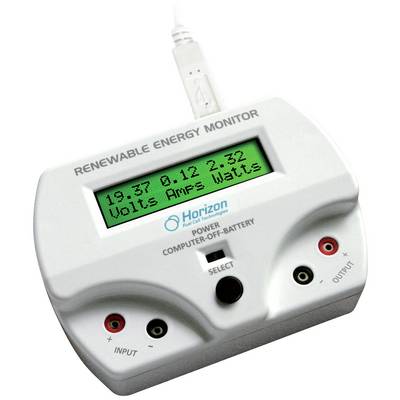

A renewable energy monitor displays readings: '19.37 Volts', '0.12 Amps', '2.32 Watts'. Device connections are for input and output.

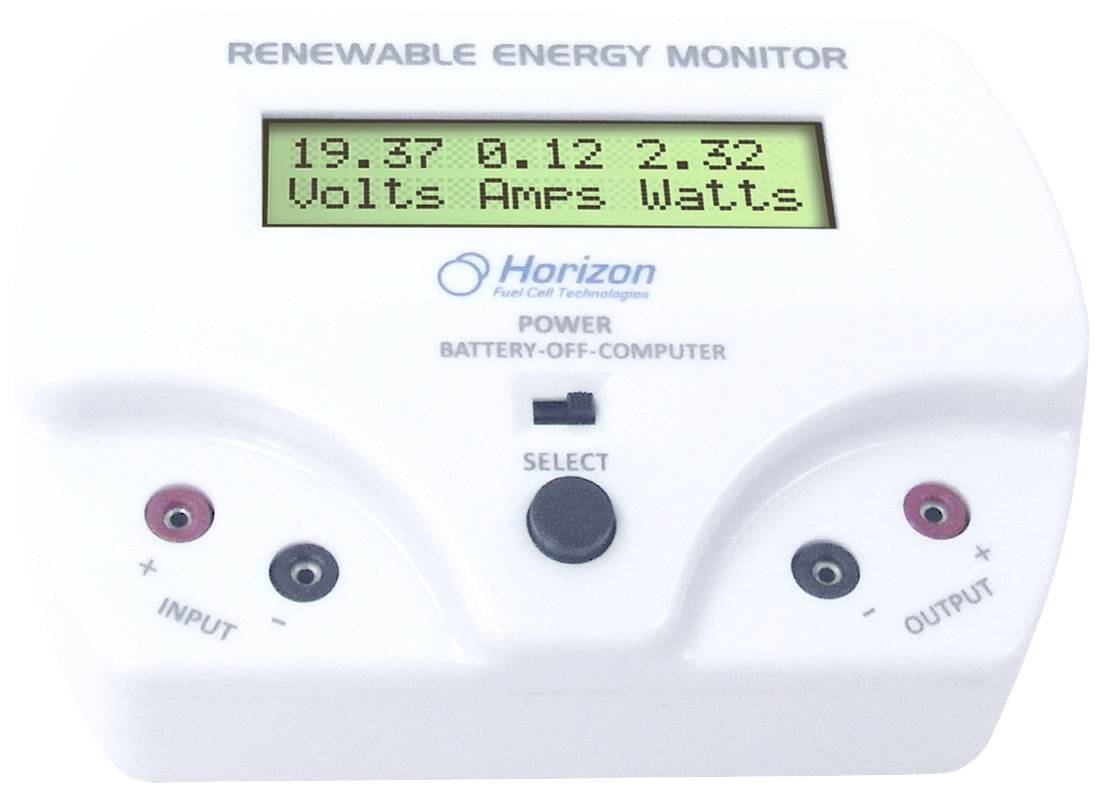

A device with a display shows: '19.37 Volts, 0.12 Amps, 2.32 Watts'. It is a 'Renewable Energy Monitor' by Horizon.

Packaging for the 'Horizon Energy Monitor' Learning Set, suitable for ages 12 and above. Includes a measuring device for monitoring renewable energy sources.

'Packaging of the Horizon Energy Monitor for Science Education with illustrations and descriptions of the included components.'

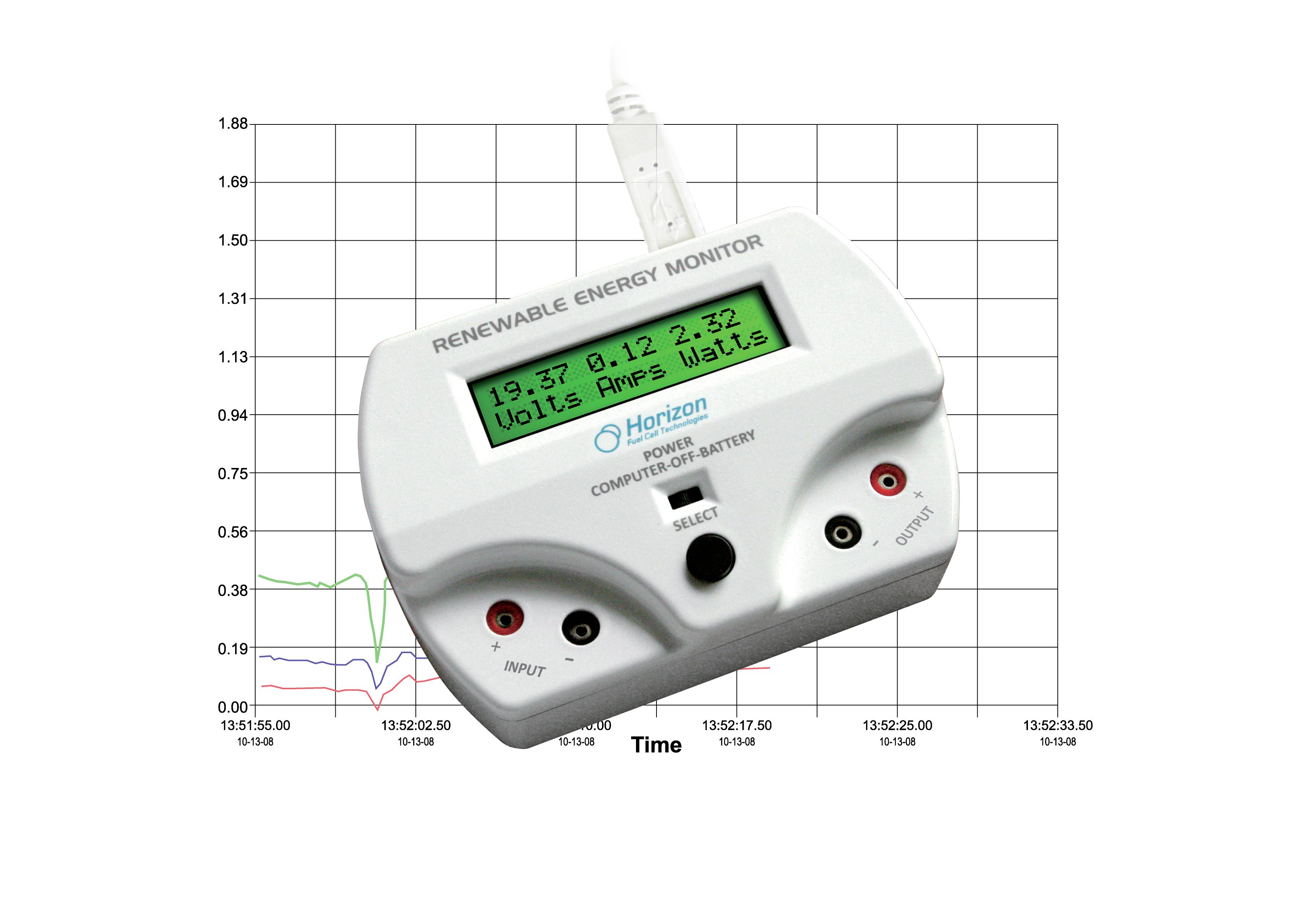

An energy monitoring device displays 'Volts Amps Watts' on a screen. In the background, there is a diagram with time and voltage axes.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 184.87 / piece)

€ 184.87

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Horizon energy monitor

Battery or USB operation
A few inputs and outputs
Monitoring of voltage, current, power, resistance, energy and turns

Technical specifications

Measuring ranges:
Voltage: 0 - 28 V.
Current 0 - 1 A (DC)
Output 0 - 28 W
Resistance 0 - 999 ohms
Energy 0 - 65535 Joules
200 – 2500 rpm speed

Product type: Pre-assembled

Topic range: Renewable Energies

Documents & Downloads

Datasheet

Datasheet 2614627 Horizon Educational FCJJ-24 Horizon Energy Monitor Renewable Energies Pre-assembled

User & Safety Instructions

User & Safety Instructions 2614627 Horizon Educational FCJJ-24 Horizon Energy Monitor Renewable Energies Pre-assembled

Description

The Power Source Monitor is an educational measurement device with PC measurement software for graphical representation of the performance characteristics on a two-line LCD screen or on the Windows computer.
The monitor is a battery powered device that comes with a USB port. This allows indoor or outdoor use, and you can take direct solar and wind measurements.
The monitor for regenerative energy sources is fully compatible with any Horizon kit.

This text is machine translated.

Features

Compare voltage, current, resistance and speed
Use it instead of voltmeter, ammeter or multimeter for all your electro-chemical experiments
Compatible with all Horizon science teaching kits
Compatible with Windows OS and Mac with Windows Parallel or Boot Camp
Use indoors or outdoors, with or without a computer!
Export all data to Excel or CSV format
Capture a video of your experiments for replay and review.

Scope of delivery

Horizon energy monitor
USB cable (1m)
CD-ROM with software
Flexible banana plug cable
User manual.

System requirements

Windows PC (XP, Vista and Windows 7/10)
