HT Instruments HT3010 Clamp meter Digital CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Number
Total (€ 149.99 / piece)
€ 149.99
incl. VAT
14-day return policy included
Highlights & Details
HT3010
- CAT III 600 V
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.001 A
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
0.1 Ω - 20 MΩ
- Frequency reading range
0.01 Hz - 19.99 kHz
- Measurement type (details)
True RMS
- Power supply (details)
1.5 V
- Height
42 mm
- Width
81 mm
- Length
220 mm
- Weight
320 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC
- Type
HT3010
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 220 x 81 x 42 mm
- Opening range of current clamps
30 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2587894 HT Instruments HT3010 Clamp meter Digital CAT III 600 V Display (counts): 6000
Description

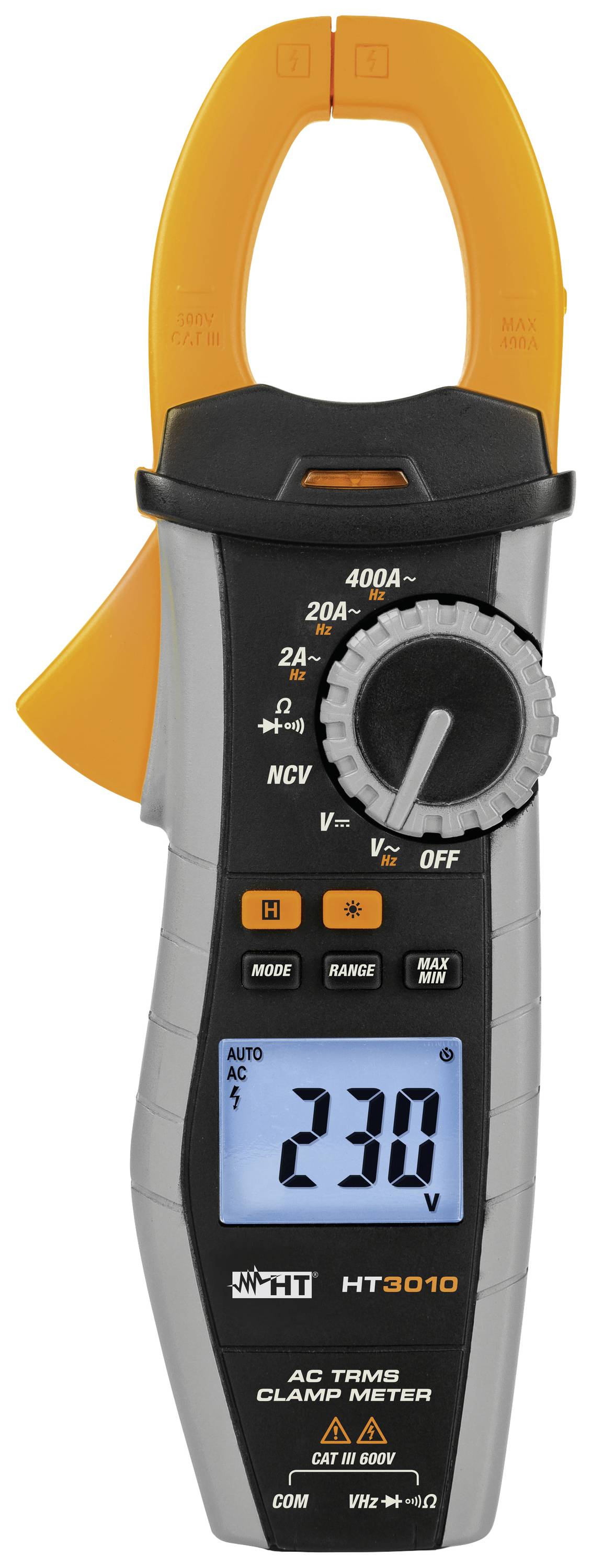

The HT3010 clamp meter can measure AC current up to 400A and AC voltage up to 600V, resistance, continuity and diode testing. Thanks to a non-contact internal detector, the device displays visually (LED) and acoustically (buzzer) whether AC voltage is present. According to IEC / EN 61010-1 HT3010 is ideal for measurements in residential and industrial environments.
This text is machine translated.
This text is machine translated.
Features
- Display: LCDPower supply: 3x 1.5 V AAA batteryAuto power OFF: After 15 minutes in standby modeSAFETY: IEC/EN 61010-1, IEC61010-2-032, IEC61010-2-033Insulation: Double insulationPollution level: 2Protection class: IP40
Scope of delivery
- Test lead pair
- Batteries
- Bag
- User manual
